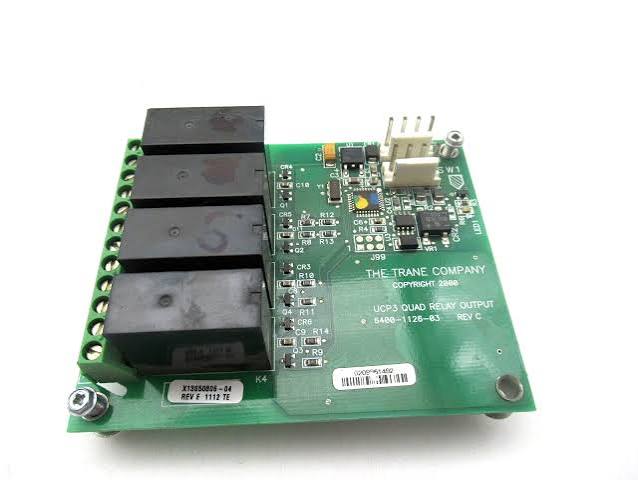

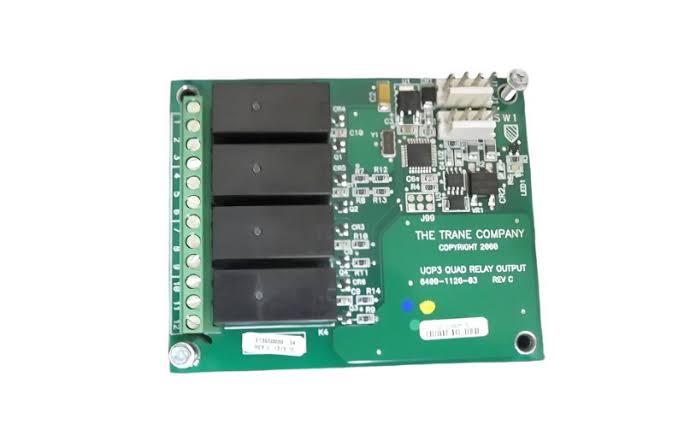

Trane X13650806-04 Quad Relay Output Module 4-Relay HVAC Circuit Board
- Regular price
- $482.00
- Sale price
- $482.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: X13650806-04
Description
The Trane X13650806-04 is a quad relay output module designed for HVAC control applications requiring multiple relay outputs. It contains four independent relays, two 4-pin connectors, and twelve screw terminals for interfacing with compatible Trane control equipment and HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HVAC |
| Part Number | X13650806-04 |
| Subcategory | HVAC Actuator |
| Product Type | Quad Relay Output Module |
| Board Type | HVAC Control Circuit Board |
| Relay Quantity | 4 |
| Relay Model | Ormon G2R-14 |
| Relay Voltage | 24 VDC |
| 4-Pin Connectors | 2 |
| Screw Terminals | 12 |
| Revision | Rev E |
| Associated Controllers | Totaline/Trane P374 and P375 |
| Application | HVAC heating and cooling control |
| Additional Board Marking | 6400-1126-03 Rev C; 50-177701 D |
| Weight | 0.25 lbs |
Information About X13650806-04
The X13650806-04 is a circuit board module identified as a Quad Relay Output Module, Rev E. It is associated with Totaline/Trane P374 and P375 variable-speed motor and controller applications. The board incorporates four relay outputs using Ormon G2R-14 24VDC relay components and provides multiple terminal connections for system wiring. Its compact configuration allows it to function as an interface component within compatible HVAC control assemblies.
Key Features:
- Quad Relay Design: Provides four independent relays for HVAC control signal switching.
- Relay Components: Uses Ormon G2R-14 24VDC relay components on the circuit board.
- Connector Interface: Includes two 4-pin connectors for system connections.
- Screw Terminals: Provides twelve screw terminals for field wiring and control connections.
- HVAC Control Board: Designed as an interface module for compatible HVAC control equipment.
- Trane Compatibility: Associated with Totaline/Trane P374 and P375 variable-speed motor and controller systems.
- Revision Identification: Marked as Rev E with additional board identifiers for component identification.
- Compact Construction: Provides multiple relay functions in a dedicated circuit board assembly.
The X13650806-04 delivers the reliability and precision required for relay-based switching and equipment control in compatible Trane HVAC systems.
