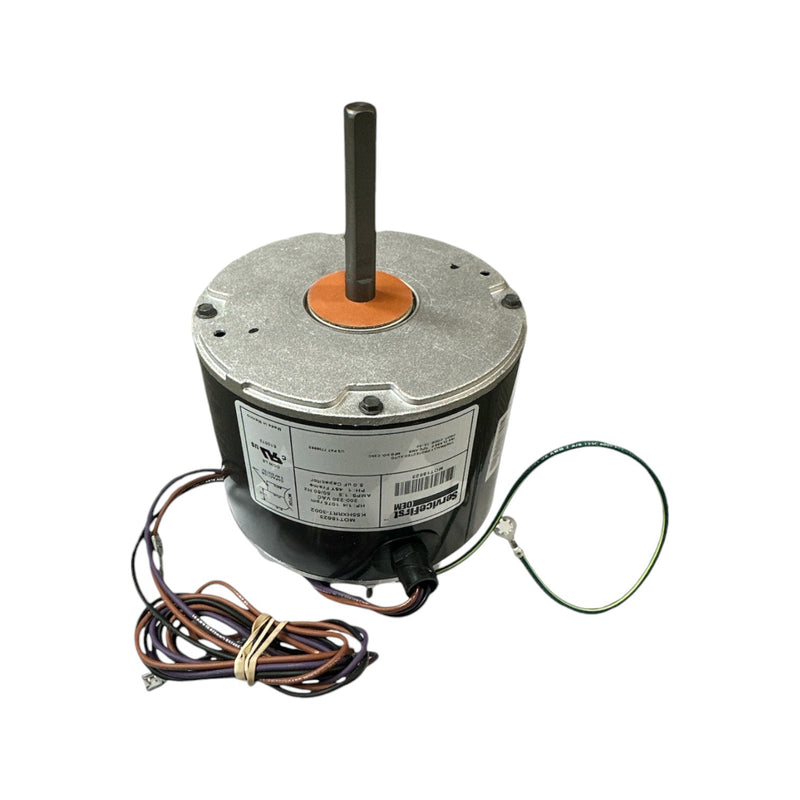

Trane X70370272010 1/4 HP 230V 1075 RPM Condenser Fan Motor

Trane X70370272010 1/4 HP 230V 1075 RPM Condenser Fan Motor

Part #: X70370272010 Manufactured by: Trane

Regular price: $585.00
Sale price: $585.00
Regular price

1 in Stock

Condition: New-Surplus Original Box

Shipping calculated at checkout.

Product variants:

Quantity:

Product Overview

The X70370272010 is a Trane 1/4 HP condenser fan motor rated for 200–230 VAC, 60 Hz, and 1075 RPM operation. Its Frame 48Y... Read more

We accept:

Talk to a real expert.

+1 (828) 222-3490

sales@iqelectro.com

Mon–Sat, 7:00 AM – 8:00 PM (EST)

IQElectro 2-Year Warranty

Warranty for Product #: X70370272010

IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms

2-3 Day Free Shipping

Packed Ready to Ship

24/7 Expert Support

Return within 30-Days

IQElectro is Not an authorized distributor for Trane

Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: X70370272010

Description / Specifications

Description

The Trane X70370272010 is an OEM condenser fan motor designed for compatible Trane HVAC equipment. It provides 1/4 HP output at 200–230 VAC with single-phase operation, 1075 RPM speed, CCWLE rotation, and a Frame 48Y configuration.

Technical Specifications

Condition	New/Never Used Surplus
Brand	Trane
Category	HVAC
Part Number	X70370272010
Subcategory	Condenser Fan Motors
Replacement Part	MOT18623
Horsepower	1/4 HP
Voltage	200–230 VAC
Phase	1 Phase
Frequency	60 Hz
Full Load Amperage	1.50 A
Speed	1075 RPM
Rotation	CCWLE
Bearing Type	Sleeve
Mounting	Stud
Shaft Diameter	1/2 in
Weight	11.02 lb

Information About X70370272010

The X70370272010 is an OEM replacement condenser fan motor that has been superseded by Trane part MOT18623. The motor operates at 60 Hz with a full-load current of 1.50 A and uses a single-speed configuration. It features a TEAO enclosure, Class F insulation, sleeve bearings, and stud mounting. The motor has a 1/2-inch shaft diameter and approximately 3-inch shaft length for compatible condenser fan assemblies.

Key Features:

Condenser Fan Motor: Designed for condenser fan applications in compatible Trane HVAC systems.
1/4 HP Rating: Provides 0.25 horsepower for condenser fan operation.
200–230 VAC Operation: Supports single-phase electrical systems within the specified voltage range.
1075 RPM Speed: Provides the specified nameplate rotational speed for condenser applications.
CCWLE Rotation: Provides counterclockwise rotation when viewed from the lead end.
Frame 48Y: Uses a 48Y frame configuration for compatible motor mounting.
TEAO Enclosure: Features a Totally Enclosed Air Over enclosure configuration.
Class F Insulation: Uses Class F insulation for the motor windings.
1.50 A Current: Provides a specified full-load amperage of 1.50 A.
Stud Mounting: Uses stud mounting for installation in compatible condenser fan assemblies.

The X70370272010 delivers the electrical and mechanical characteristics required for compatible Trane condenser fan applications.
