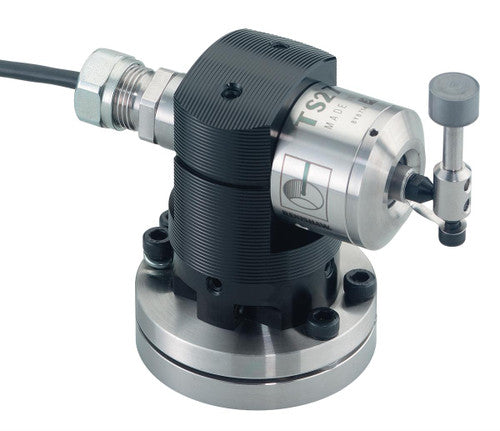

TS27R | Renishaw Tool Setter Hardware-Only Kit
- Regular price
- $1,125.00
- Sale price
- $1,125.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TS27R
Description
The TS27R-KIT is a hardware-only tool setter package for vertical machining centers, allowing precise measurement of tool length and diameter. It also includes functionality for detecting broken tools, supporting improved machining accuracy and reduced downtime.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Renishaw |
| Category |
CNC Machine Accessories
|
| Part Number | TS27R |
| Subcategory | Tool Setters |
| Product Type | Tool Setter |
| Kit Includes | TS27R probe, HSI interface, Sealtite kit |
| Application | Vertical machining centers |
| Measurement Axes | ±X, ±Y, ±Z |
| Stylus Overtravel | ±10° (X/Y), 5.5 mm (Z) |
| Trigger Force Range | 130 gf to 240 gf |
| Repeatability (Unidirectional) | 1.0 μm (0.00004 in) |
| Interface | HSI interface included |
| Design Type | Mechanical, non-rotating |
| Environment Suitability | Coolant-resistant, shop-floor ready |
| Power Requirements | Provided via interface |
| Usage | Tool length/diameter setting, break detection |
| Weight | 1.1 kg |
Information About TS27R
The TS27R-KIT includes the Renishaw TS27R tool setter, HSI interface, and a Sealtite installation kit, designed specifically for vertical CNC machining centers. The TS27R detects tool contact in ±X, ±Y, and ±Z directions, with high repeatability and reliable stylus triggering. Its non-rotating mechanical design ensures robust performance in harsh machine environments. This system is commonly used in automated tool measurement routines and supports rapid detection of tool breakage to protect parts and equipment.
Key Features:
- Multi-Axis Sensing: Detects tool contact in ±X, ±Y, and ±Z directions for full spatial recognition.
- Stylus Overtravel Protection: ±10° in X and Y axes, 5.5 mm in Z-axis, to prevent damage during impact.
- High Trigger Force: Stylus trigger force adjustable from 130 gf to 240 gf for reliable activation.
- Precision Repeatability: Unidirectional repeatability of 1.0 μm ensures consistent tool setting accuracy.
- Non-Rotating Design: Mechanical tool setter does not require tool rotation for measurement.
- Includes Interface Kit: Ships with HSI interface and Sealtite kit for electrical and environmental integration.
- Durable Construction: Built for use in high-vibration, high-coolant machining environments.
- Hardware-Only Package: Ideal for retrofit applications or replacement in existing Renishaw setups.
The TS27R-KIT delivers the accuracy, durability, and integration flexibility required for precision CNC tool setting and monitoring.
