TSX3722101 | Schneider Electric Modular Base Controller Modicon TSX Micro
- Regular price
- $369.00
- Sale price
- $369.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TSX3722101
Description

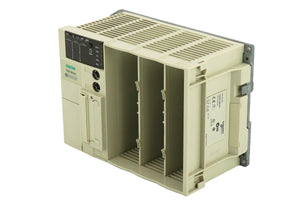

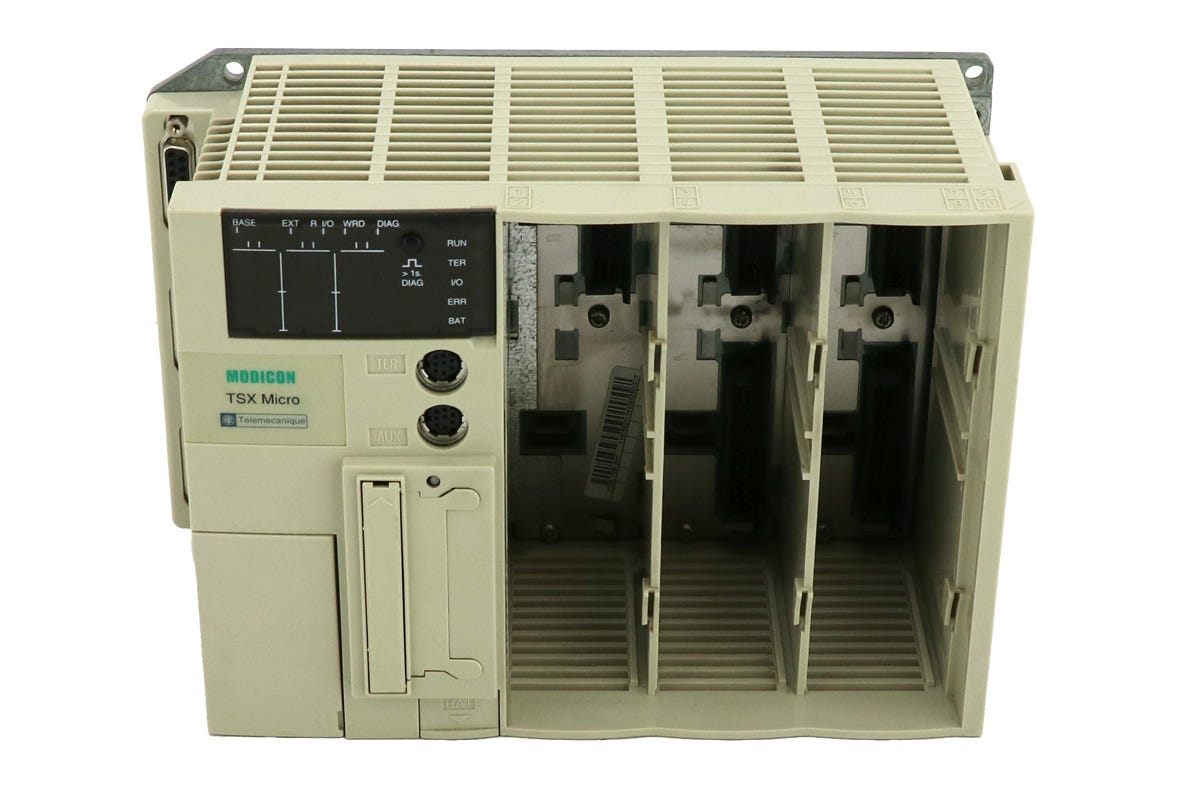

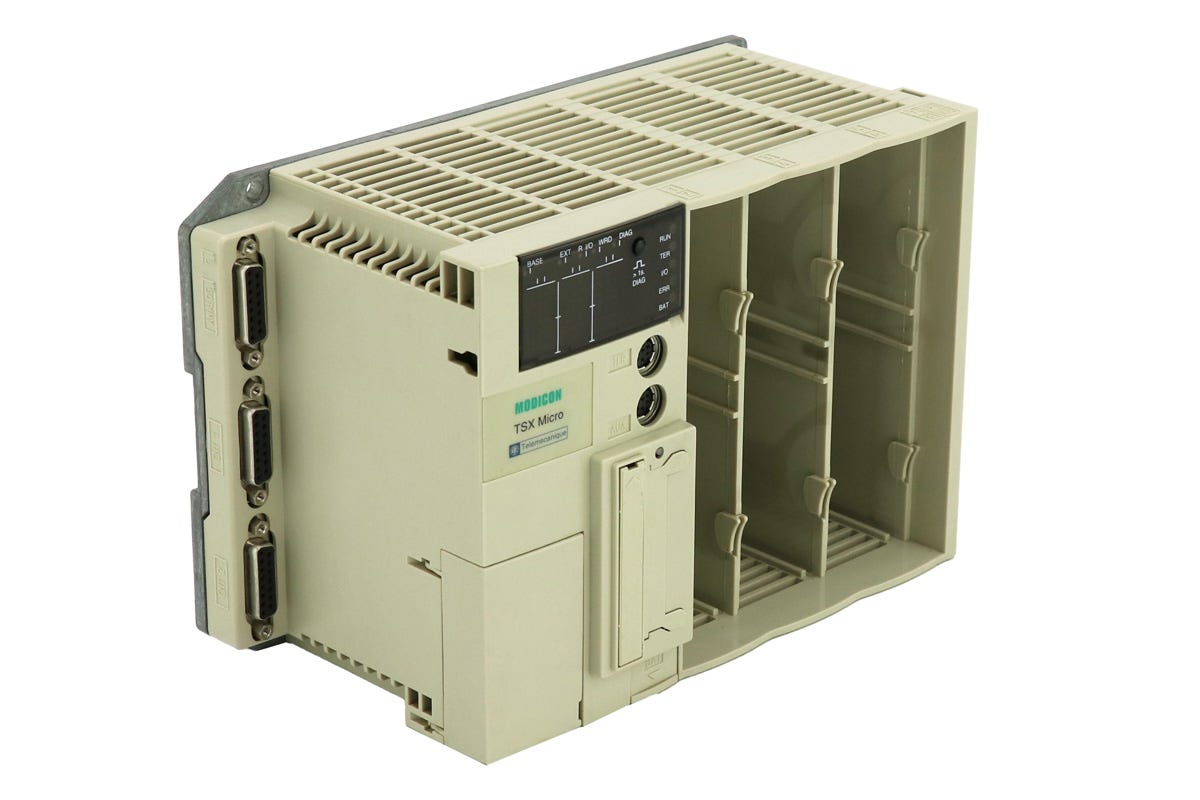

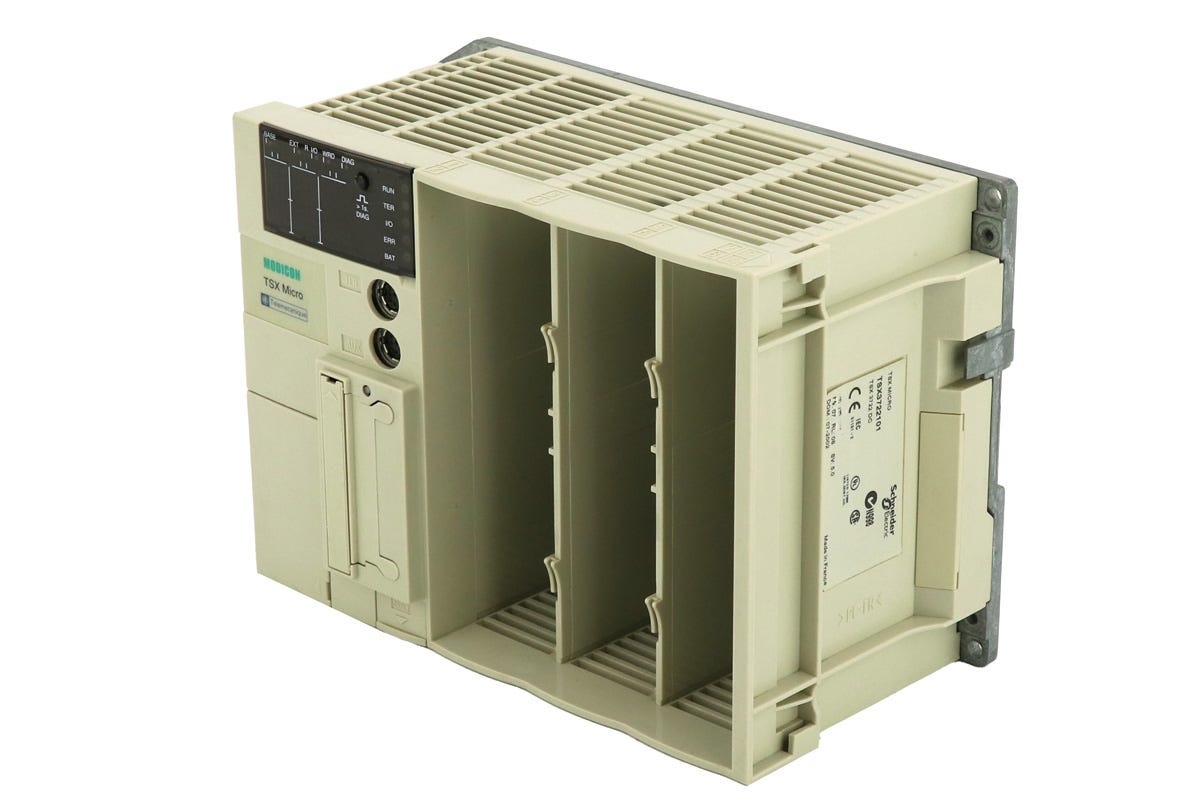

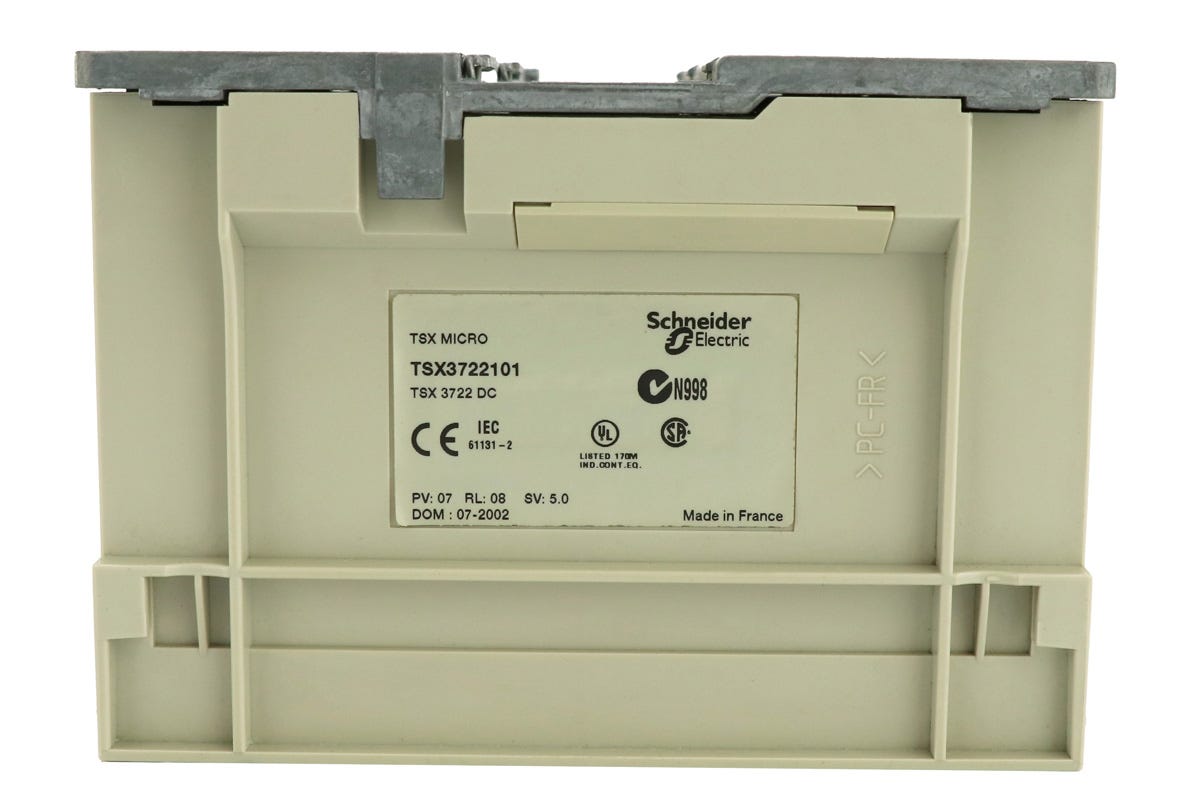

The Schneider Electric TSX3722101 is a modular base controller designed for the Modicon TSX Micro series. It operates with a 24V DC primary voltage, offering efficient control and communication in various automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLCs and Accessories |
| Part Number |
TSX3722101 |
| Subcategory | PLC Expansion Modules |
| Range of Product | Modicon TSX Micro automation platform |
| Product or Component Type | Modular base controller |
| Primary voltage | 24 V 19.2…30 V DC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 10 ms |
| Number of slots | 3 |
| Analogue input type | 0...10 V 8 |
| Analogue output type | 0...10 V 1 |
| Counting input type | Discrete incremental counter 1 10 Hz Incremental 1 10 Hz |
Information About TSX3722101
The TSX3722101 is a modular base controller from the Schneider Electric Modicon TSX Micro series, providing a versatile solution for small-scale industrial automation. It operates within a voltage range of 19.2V to 30V DC and offers robust input current capabilities of up to 60A, making it suitable for various control applications. The controller includes 3 slots for flexibility in module expansion and supports 0 to 10 V analog input on 8 channels, enabling precise measurements and control. With immunity to microbreaks of 10 ms, it ensures stable operation even in environments with intermittent power disruptions. Additionally, it features a UNI-TELWAY communication protocol with a baud rate of 19.2 kbit/s for reliable data exchange.
Key Features:
- Primary Voltage Range (19.2V to 30V DC): Allows flexibility in power supply for industrial environments.
- Immunity to Microbreaks (10 ms): Ensures reliable operation despite brief power interruptions.
- 3 Slots for Module Expansion: Provides flexibility for adding additional modules as needed.
- 8 Analog Inputs (0 to 10V): Supports accurate analog measurements for precise control.
- UNI-TELWAY Communication Protocol (19.2 kbit/s): Ensures stable data communication for efficient system integration.
The TSX3722101 modular base controller is an ideal solution for applications requiring flexible control and reliable performance. Its scalable design and robust features make it a solid choice for industrial automation systems.
