Product Description P/N: TSXASY410

Description / Specifications

Description


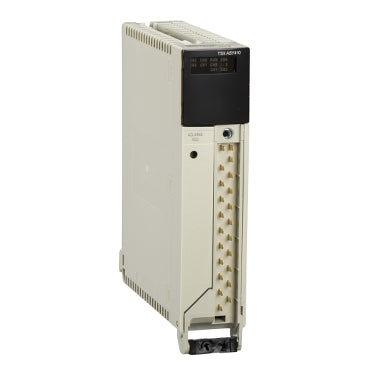

The Analog output module, designed for Modicon Premium TSX PLC, is a standard format module with 4 analog outputs. It supports current outputs of 0-20 mA and 4-20 mA, as well as voltage output of +/- 10 V. The module utilizes 11-bit analog-to-digital conversion with a conversion time of 2.5 ms. It offers a measurement resolution of 5.12 mV for +/- 10 V output, and 10.25 µA for 0-20 mA and 4-20 mA outputs. The electrical connection is facilitated through a screw terminal block. The module features overload and short-circuit protection, and its output voltage limits are capped at <= 30 V. The isolation between channels is 1500 Vrms, and it meets CE marking standards. The module's current consumption is 900 mA at 5 V DC.





Technical Specifications



Specifications





Part #

TSXASY410

Manufacturer

SCHNEIDER ELECTRIC

Brand

TELEMECANIQUE

Category

PLCs/Machine Control

Subcategory

PLC Module/Rack

Module format

Standard

Product or component type

Analog output module

Analog output number

4

Analog output type

Current 0-20 mA

Analog/Digital conversion

11_BITS_+_SIGN

Conversion time

2.5 ms

Measurement resolution

5.12 mV +/- 10 V

Electrical connection

Screw terminal block

Measurement error

0.45% of full scale +/- 10 V (25°C)

Isolation between channels

1500 Vrms

Isolation between channels and bus

1500 Vrms

Isolation between channels and ground

500 V

Protection type

Overload protection

Output voltage limits

<= 30 V

Load impedance ohmic

< 600 Ohm 0-20 mA

Load inductance

< 300 µH

Load capacitance

< 0.1 µF

Marking

CE

Current consumption

900 mA 5 V DC







Information About TSXASY410


The Analog Output Module, designated as Modicon Premium, is a component featuring four analog outputs with a 12-bit conversion capability. Specifically designed for precision and versatility, this module operates at a current of 900mA with a voltage rating of 5VDC. The multirange functionality allows for flexibility in configuring the module to accommodate various applications and requirements.

In terms of technical specifications, the module supports standard output signals, including current in the range of 0 to 20 mA and 4 to 20 mA, as well as voltage in the range of +/- 10 V. The 12-bit analog-to-digital conversion ensures accurate and finely detailed output signals. With a fast conversion time of 2.5 milliseconds, the module excels in providing rapid response and real-time adjustments.

The electrical connection is facilitated through a screw terminal block, ensuring a secure and reliable interface. The module exhibits minimal measurement error, with deviations of 0.45% of the full scale for +/- 10 V outputs at 25°C and 0.52% of the full scale for 0-20 mA and 4-20 mA outputs at the same temperature. Even under varying environmental conditions, such as temperatures ranging from 0 to 60°C, the module maintains a measurement error within acceptable limits.

Isolation measures are implemented to enhance the safety and performance of the module. The isolation between channels is rated at 1500 Vrms, providing adequate protection against electrical interference. Additionally, the isolation between channels and the bus, as well as between channels and ground, is maintained at 1500 Vrms and 500 V, respectively.
