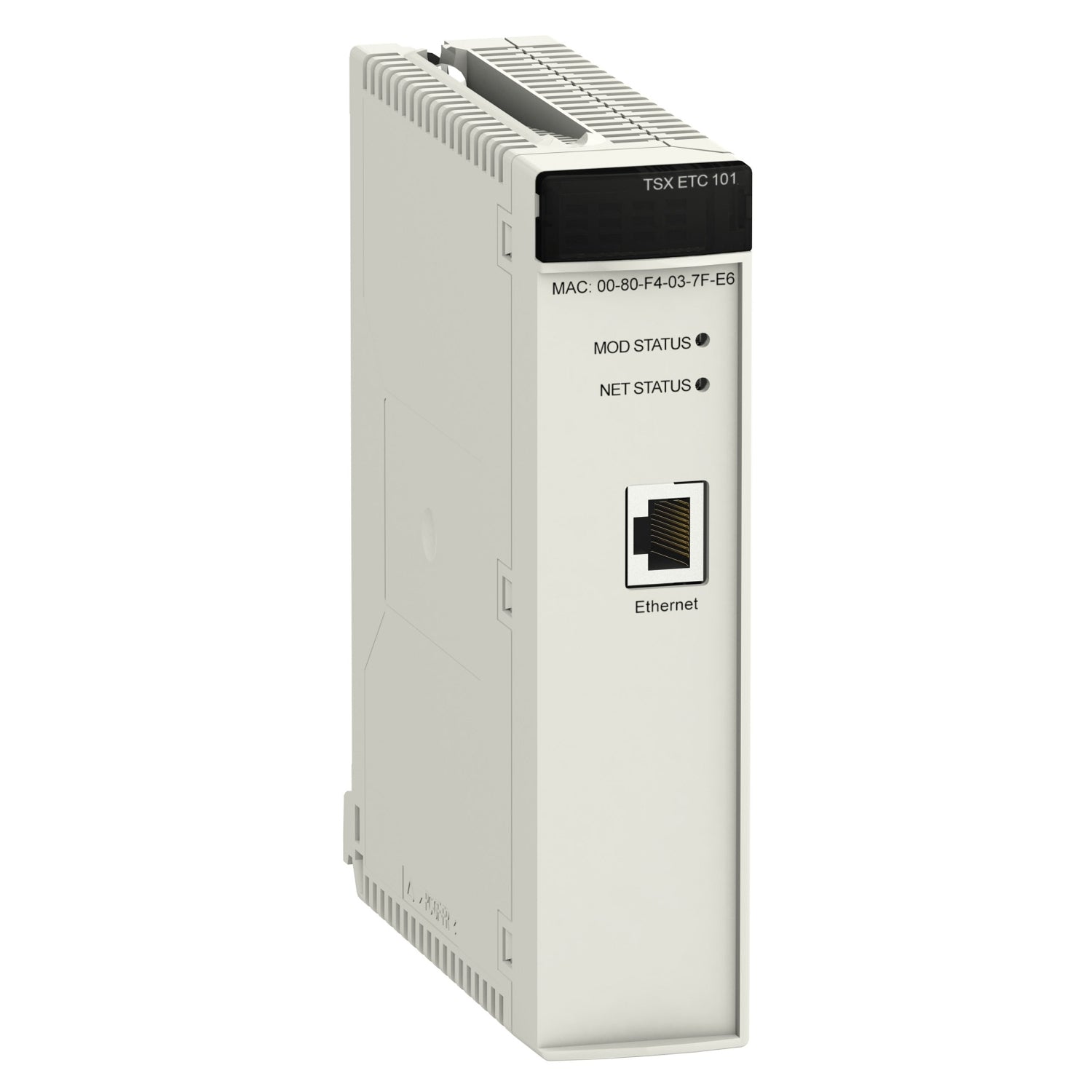

TSXETC101 | Schneider Electric Modicon Ethernet Communication Module
- Regular price
- $2,659.00
- Sale price
- $2,659.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TSXETC101
Description
The TSXETC101 is a Schneider Electric Modicon Ethernet Communication Module, offering seamless integration of Ethernet communication within Modicon systems. With its compact design and robust capabilities, it ensures efficient data exchange and network connectivity within industrial automation setups.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | TSXETC101 |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Product or component type | Ethernet communication module |
| Physical interface | RJ45 10BASE-T/100BASE-TX 1 twisted pair |
| Transmission rate | 10/100 Mbit/s with automatic recognition |
| Supply | Via the power supply of the rack |
| Local signalling | 1 LED green/red network communication status (Net Status) 1 LED green backplane communication status (RUN) 1 LED red error condition (ERR) 1 LED green/red status of the module (Mod Status) 1 LED amber Ethernet activity (ACT) 1 LED amber configuration status (STS) |
| Maximum number of connections | 128 |
| Web server | Transparent ready class B30 |
| Marking | CE |
| Product compatibility | Unity Pro >= V5.0 |
| Current consumption | 400 mA 5 V DC |
| Module format | Standard |
| Ambient air temperature for operation | 0...60 °C |
| Relative humidity | 10...95 % at 60 °C without condensation |
Information About TSXETC101
The TSXETC101 by Schneider Electric is a versatile Ethernet communication module tailored for seamless integration within Modicon systems. Sporting an RJ45 interface supporting 10BASE-T/100BASE-TX over a single twisted pair, it ensures robust connectivity at transmission rates of 10/100 Mbit/s with automatic recognition.
Power is conveniently drawn from the rack's power supply, streamlining installation and operation. Local signaling is facilitated through LEDs, providing clear indication of network communication status, backplane communication, error conditions, module status, Ethernet activity, and configuration status.
With support for up to 128 connections, this module boasts extensive connectivity capabilities. It features a transparent ready class B30 web server for enhanced functionality. Compliant with CE marking, it ensures adherence to relevant standards.
Compatible with Unity Pro versions V5.0 and above, the TSXETC101 draws a current consumption of 400 mA at 5 V DC. Its standard module format ensures compatibility with various setups, while operational reliability is maintained in ambient temperatures ranging from 0 to 60 °C, with relative humidity tolerance of 10 to 95% at 60 °C without condensation.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
