TVMUSX-40000 | Honeywell Multitrend SX Paperless Recorder
- Regular price
- $6,899.00
- Sale price
- $6,899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TVMUSX-40000
Description

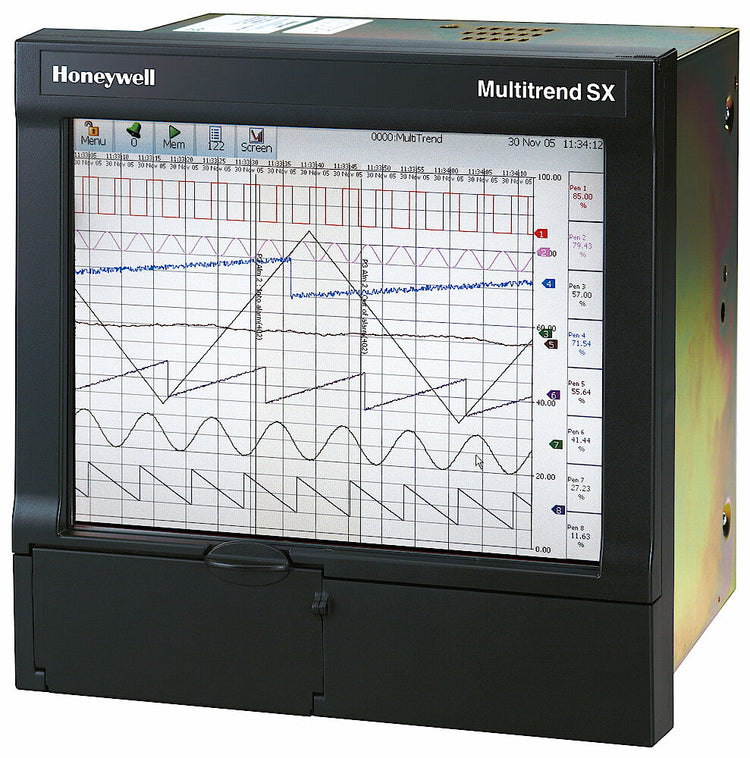

The Honeywell TVMUSX-40000 Multitrend SX is a modular, paperless chart recorder engineered for precise and scalable data acquisition. Featuring a 12.1″ SVGA touchscreen, flexible input configurations, and advanced logging capabilities, it provides intuitive and powerful process monitoring across industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Data Control System
|
| Part Number | TVMUSX-40000 |
| Subcategory | Chart Recorder |
| Input Channels | 4 to 48 (modular, field-upgradable) |
| Input Types | mV, V, mA, Thermocouple, RTD, Ohms, SQRT |
| Display |
12.1″ SVGA Color Touchscreen |
| Logging Modes | Sample, Average, Min/Max, Fuzzy, Continuous |
| Sampling Rate | 20 ms to 60 hours |
| Output/Control Options | Digital I/O, Pulse Inputs, Relay Contacts |
| Power Supply | 100–250 VAC or 24 VDC |
| Transmitter Power | 24 VDC (optional) |
| Operating Temperature | 0°C to 50°C |
| Protection Rating | IP55 standard, optional IP65 front |
| Mounting | Panel Mount with brackets |
| Power Consumption | 60 W |
| Weight | 14.99 lbs |
Information About TVMUSX-40000
The TVMUSX-40000 is part of Honeywell’s Multitrend SX series—an advanced paperless recording platform tailored for process industries requiring modular expansion and digital precision. This model supports from 4 to 48 universal input channels, configurable for millivolts, volts, milliamps, thermocouples, RTDs, or ohms, with additional features like square root extraction. Data logging methods include sample, average, min/max, fuzzy logic, and continuous logging, with fast scan capability down to 20 ms. It also offers pulse and digital inputs/outputs, as well as relay contact options for extended control and monitoring. Designed for panel mounting, the unit features a rugged enclosure with IP55-rated protection (optionally IP65 on the front) and can be powered by either 240V or 24V, including 24V transmitter power support.
Key Features:
- High-Capacity Input Channel Range: Expandable from 4 to 48 input channels to match process complexity.
- Universal Input Compatibility: Accepts mV, V, mA, RTD, thermocouple, and resistance signals with optional SQRT extraction.
- Advanced Logging Options: Supports sample, average, min/max, continuous, and fuzzy logic logging strategies.
- Fast and Flexible Sampling Rates: Ranges from 20 ms (fast scan) to 60 hours, allowing both rapid events and long-term trends to be captured.
- Touchscreen Interface: 12.1″ SVGA color display for intuitive configuration and live data visualization.
- Modular Expandability: Fully field-upgradable to increase input/output capacity without replacing hardware.
- Versatile Power Options: Operates on 100–250 VAC or 24VDC and includes 24V transmitter power capability.
- Industrial-Grade Protection: IP55 enclosure rating standard, with optional IP65-rated front bezel for harsh environments.
- Mounting and Integration: Panel mount design with bracket system for secure installation and streamlined access.
- Comprehensive I/O Options: Offers digital inputs, pulse counters, relay outputs, and more for integrated process control.
The TVMUSX-40000 offers a robust and scalable solution for industrial data acquisition, replacing paper recorders with a digital, highly configurable platform suited for critical process visibility and traceability.
