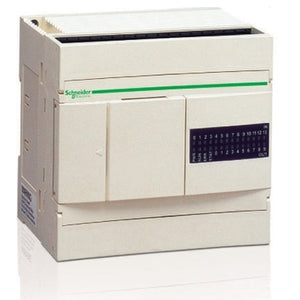

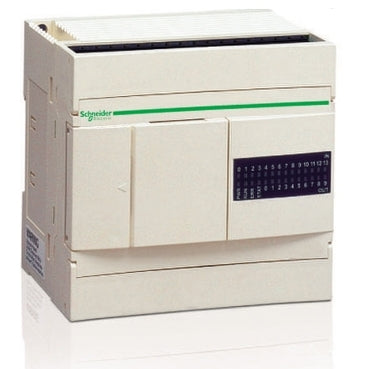

TWDLCAA24DRF | Schneider Electric | Compact base controller
- Regular price
- $337.00
- Sale price
- $337.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TWDLCAA24DRF
Description
The Compact base controller, Twido, operates with a power supply ranging from 100 to 240VAC. It features an extendable PLC base and includes 14 inputs with 24VDC. Additionally, the controller offers 10 output relays for efficient operation in various industrial settings. Identified as the Specialist Controllers BASE UNIT AC 14 IN DC, 10 OUT RLY,TBK, it ensures precise control and reliable performance within its operational parameters.
Technical Specifications
Specifications
|
Part # |
TWD-LCAA24DRF |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
PLCs/Machine Control |
|
Subcategory |
Brick PLC |
|
Range of Product |
Twido |
|
Product Type |
Compact base controller |
|
Discrete I/O number |
24 |
|
Discrete input number |
14 |
|
Discrete input voltage |
24 V |
|
Discrete input voltage type |
DC |
|
Discrete output number |
10 relay |
|
[Us] rated supply voltage |
24 V DC |
|
Maximum Number of I/O Expansion Module |
4 |
|
Use of slot |
Memory cartridge or realtime clock cartridge |
|
Complementary function |
Event processing, PID |
|
Range Compatibility |
Twido |
|
Discrete input logic |
Sink or source |
|
Input voltage limits |
20.4...28.8 V |
|
Insulation between channel and internal logic |
1500 Vrms for 1 minute |
|
Insulation resistance between channel |
None |
|
Minimum load |
0.1 mA |
|
Contact resistance |
30000 µOhm |
|
Supply voltage limits |
20.4…28.8 V |
|
Inrush current |
40 A |
|
Protection type |
Power protection internal fuse |
|
Power Consumption in W |
8.7 W |
|
Insulation resistance |
> 10 MOhm at 500 V, between I/O and earth terminals |
|
Program memory |
3000 instructions |
|
Exact time for 1 Kinstruction |
1 ms |
|
System overhead |
0.5 ms |
Information About TWDLCAA24DRF
The Specialist Controllers BASE UNIT AC is a compact base controller designed for industrial automation applications, specifically tailored to accommodate the Twido range. It operates within a wide voltage range of 100 to 240VAC, ensuring compatibility with various power systems commonly found in industrial settings.
This base controller serves as an extendable PLC base, offering flexibility in system expansion and integration. It features 14 discrete inputs operating at 24VDC, suitable for interfacing with various sensors, switches, and input devices commonly employed in automation systems. Additionally, it incorporates 10 output relays, providing versatile control capabilities for managing actuators, solenoids, and other output devices within the automation network.
The architecture of the base unit is optimized for efficient and reliable operation in industrial environments. It is equipped with robust components and built to withstand the rigors of continuous operation in demanding conditions. The compact design of the base unit makes it suitable for installation in space-constrained environments commonly encountered in industrial settings.
With its 14 discrete inputs, the base unit offers ample connectivity options for interfacing with a wide array of input devices, facilitating comprehensive monitoring and control of industrial processes. The 10 output relays provide versatile control capabilities, enabling precise management of output devices to meet specific application requirements.
The base unit is designed with a focus on ease of installation and integration, featuring user-friendly interfaces and comprehensive documentation to streamline setup and configuration processes. Its modular design allows for convenient expansion and scalability, making it well-suited for both small-scale and large-scale automation projects.
The Specialist Controllers BASE UNIT AC 14 IN DC, 10 OUT RLY,TBK is engineered to deliver reliable performance and robust functionality in industrial automation applications. With its versatile input and output options, wide voltage compatibility, and extendable PLC base, it offers a flexible and scalable solution for various automation requirements.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
The Compact base controller, Twido, operates with a power supply ranging from 100 to 240VAC. It features an extendable PLC base and includes 14 inputs with 24VDC. Additionally, the controller offers 10 output relays for efficient operation in various industrial settings. Identified as the Specialist Controllers BASE UNIT AC 14 IN DC, 10 OUT RLY,TBK, it ensures precise control and reliable performance within its operational parameters.
Technical Specifications
Specifications
|
Part # |
TWD-LCAA24DRF |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
PLCs/Machine Control |
|
Subcategory |
Brick PLC |
|
Range of Product |
Twido |
|
Product Type |
Compact base controller |
|
Discrete I/O number |
24 |
|
Discrete input number |
14 |
|
Discrete input voltage |
24 V |
|
Discrete input voltage type |
DC |
|
Discrete output number |
10 relay |
|
[Us] rated supply voltage |
24 V DC |
|
Maximum Number of I/O Expansion Module |
4 |
|
Use of slot |
Memory cartridge or realtime clock cartridge |
|
Complementary function |
Event processing, PID |
|
Range Compatibility |
Twido |
|
Discrete input logic |
Sink or source |
|
Input voltage limits |
20.4...28.8 V |
|
Insulation between channel and internal logic |
1500 Vrms for 1 minute |
|
Insulation resistance between channel |
None |
|
Minimum load |
0.1 mA |
|
Contact resistance |
30000 µOhm |
|
Supply voltage limits |
20.4…28.8 V |
|
Inrush current |
40 A |
|
Protection type |
Power protection internal fuse |
|
Power Consumption in W |
8.7 W |
|
Insulation resistance |
> 10 MOhm at 500 V, between I/O and earth terminals |
|
Program memory |
3000 instructions |
|
Exact time for 1 Kinstruction |
1 ms |
|
System overhead |
0.5 ms |
Information About TWDLCAA24DRF
The Specialist Controllers BASE UNIT AC is a compact base controller designed for industrial automation applications, specifically tailored to accommodate the Twido range. It operates within a wide voltage range of 100 to 240VAC, ensuring compatibility with various power systems commonly found in industrial settings.
This base controller serves as an extendable PLC base, offering flexibility in system expansion and integration. It features 14 discrete inputs operating at 24VDC, suitable for interfacing with various sensors, switches, and input devices commonly employed in automation systems. Additionally, it incorporates 10 output relays, providing versatile control capabilities for managing actuators, solenoids, and other output devices within the automation network.
The architecture of the base unit is optimized for efficient and reliable operation in industrial environments. It is equipped with robust components and built to withstand the rigors of continuous operation in demanding conditions. The compact design of the base unit makes it suitable for installation in space-constrained environments commonly encountered in industrial settings.
With its 14 discrete inputs, the base unit offers ample connectivity options for interfacing with a wide array of input devices, facilitating comprehensive monitoring and control of industrial processes. The 10 output relays provide versatile control capabilities, enabling precise management of output devices to meet specific application requirements.
The base unit is designed with a focus on ease of installation and integration, featuring user-friendly interfaces and comprehensive documentation to streamline setup and configuration processes. Its modular design allows for convenient expansion and scalability, making it well-suited for both small-scale and large-scale automation projects.
The Specialist Controllers BASE UNIT AC 14 IN DC, 10 OUT RLY,TBK is engineered to deliver reliable performance and robust functionality in industrial automation applications. With its versatile input and output options, wide voltage compatibility, and extendable PLC base, it offers a flexible and scalable solution for various automation requirements.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
