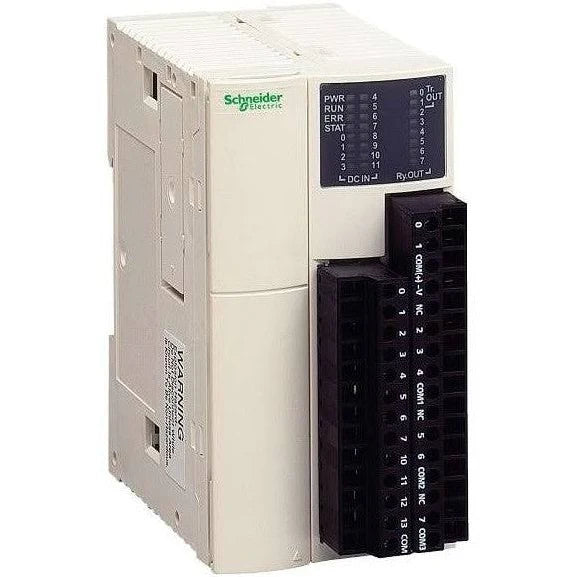

TWDLMDA20DRT | Schneider Electric Twido Modular Base Controller With 20 Discrete I/O Channels
- Regular price
- $485.00
- Sale price
- $485.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TWDLMDA20DRT
Description
The Schneider Electric TWDLMDA20DRT is a Twido-series modular base controller designed to provide efficient discrete control for industrial automation systems. Operating on 24 V DC, it delivers 20 I/O channels with 9-bit resolution, ensuring accurate signal processing and reliable performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLCs/Machine Control |
| Part Number | TWDLMDA20DRT |
| Subcategory | PLC Module/Rack |
| Type | Relay Modules |
| Total Discrete I/O | 20 |
| Discrete Inputs | 12 Inputs, 24 V DC |
| Input Logic | Sink or Source |
| Discrete Outputs | 2 Transistor (Source) + 6 Relay Outputs |
| Rated Supply Voltage | 24 V DC |
| Power Consumption | 19 W |
| Resolution | 9-bit |
| Expansion Capability | Supports 7 I/O Modules |
| Free Slots | 2 |
| Display Type | LED Indicators |
| Mounting Style | DIN Rail Mount |
Information About TWDLMDA20DRT
The TWDLMDA20DRT is part of Schneider Electric’s Twido modular controller platform, designed for compact and flexible automation requirements. Equipped with 20 discrete I/O channels, this controller integrates 12 DC inputs with sink/source logic and 8 output channels that include both transistor and relay options for versatile device interfacing. Operating on a 24 V DC supply, it maintains stable performance while offering 9-bit resolution for precise control across various industrial applications. The unit supports up to seven expansion modules and includes two free slots, enabling scalable architectures for growing automation systems while maintaining a compact footprint.
Key Features
- Modular Twido architecture: enables flexible system design with support for multiple expansion modules and configurable I/O layouts.
- Mixed output configuration: features 2 transistor source outputs and 6 relay outputs to accommodate both fast-switching and electromechanical loads.
- Sink/source input compatibility: supports 12 discrete DC inputs adaptable to different wiring and sensor requirements.
- 24 V DC operation: ensures stable integration with standard industrial power systems and control panels.
- LED diagnostics: provides clear status indication for inputs, outputs, and controller activity.
- DIN rail mounting: offers straightforward installation within automation enclosures or machine control cabinets.
- 9-bit processing resolution: enhances control accuracy for applications requiring precise digital handling.
- Scalable system expansion: supports up to seven I/O modules and includes two additional free slots for future growth.
The TWDLMDA20DRT delivers the reliability and precision required for scalable, discrete control in modern industrial automation environments.
