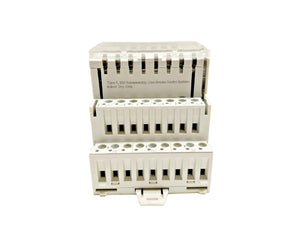

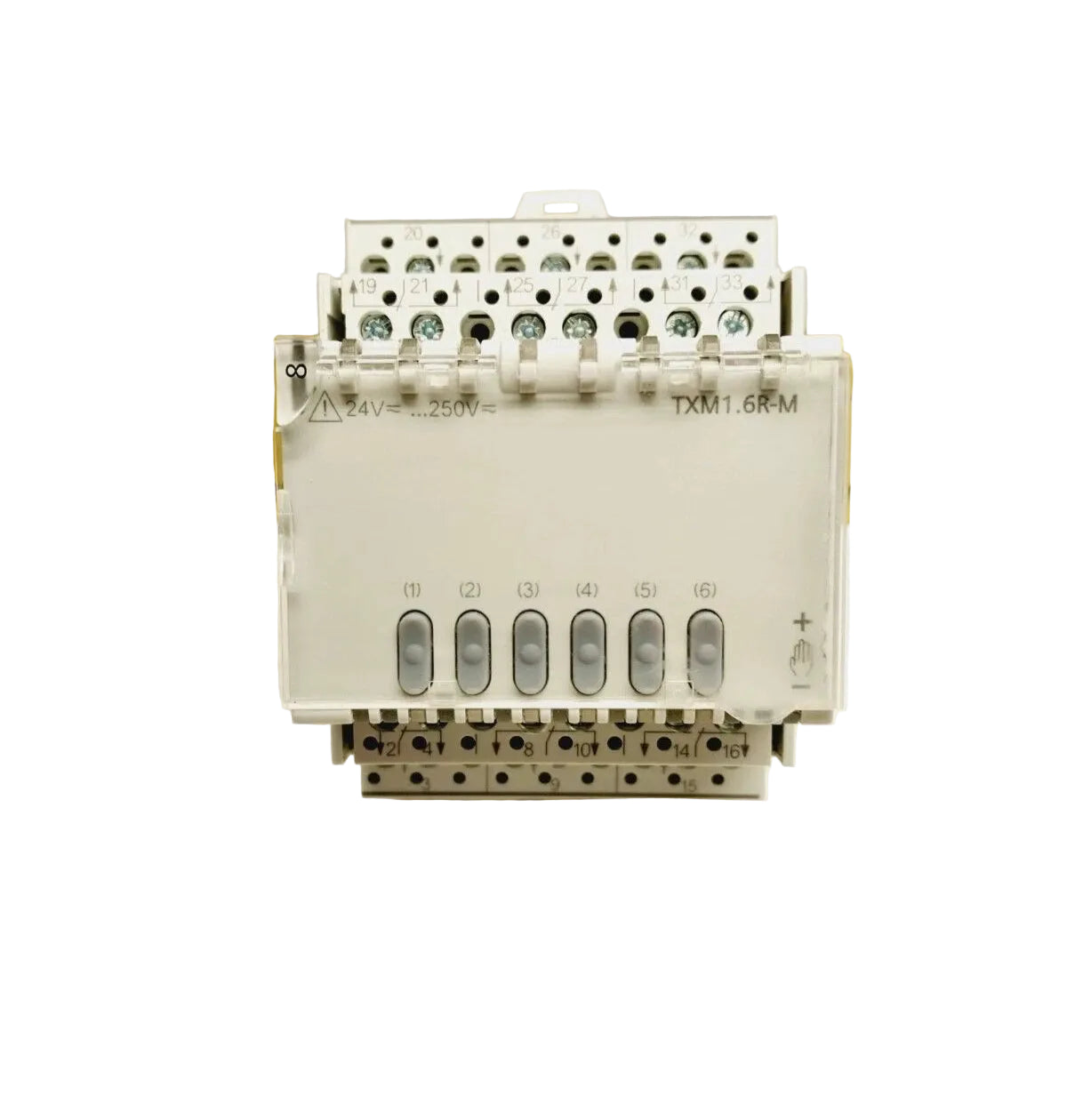

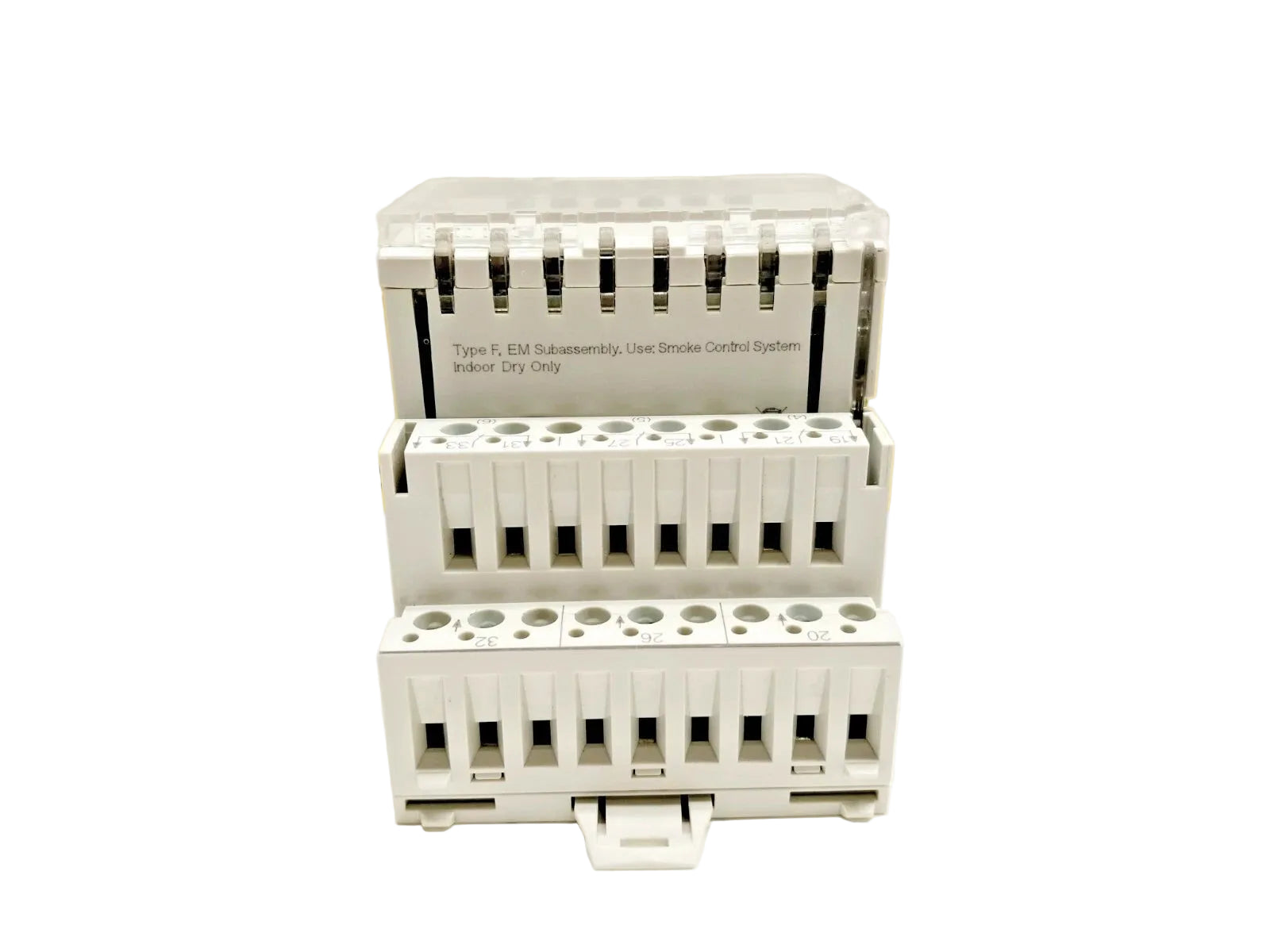

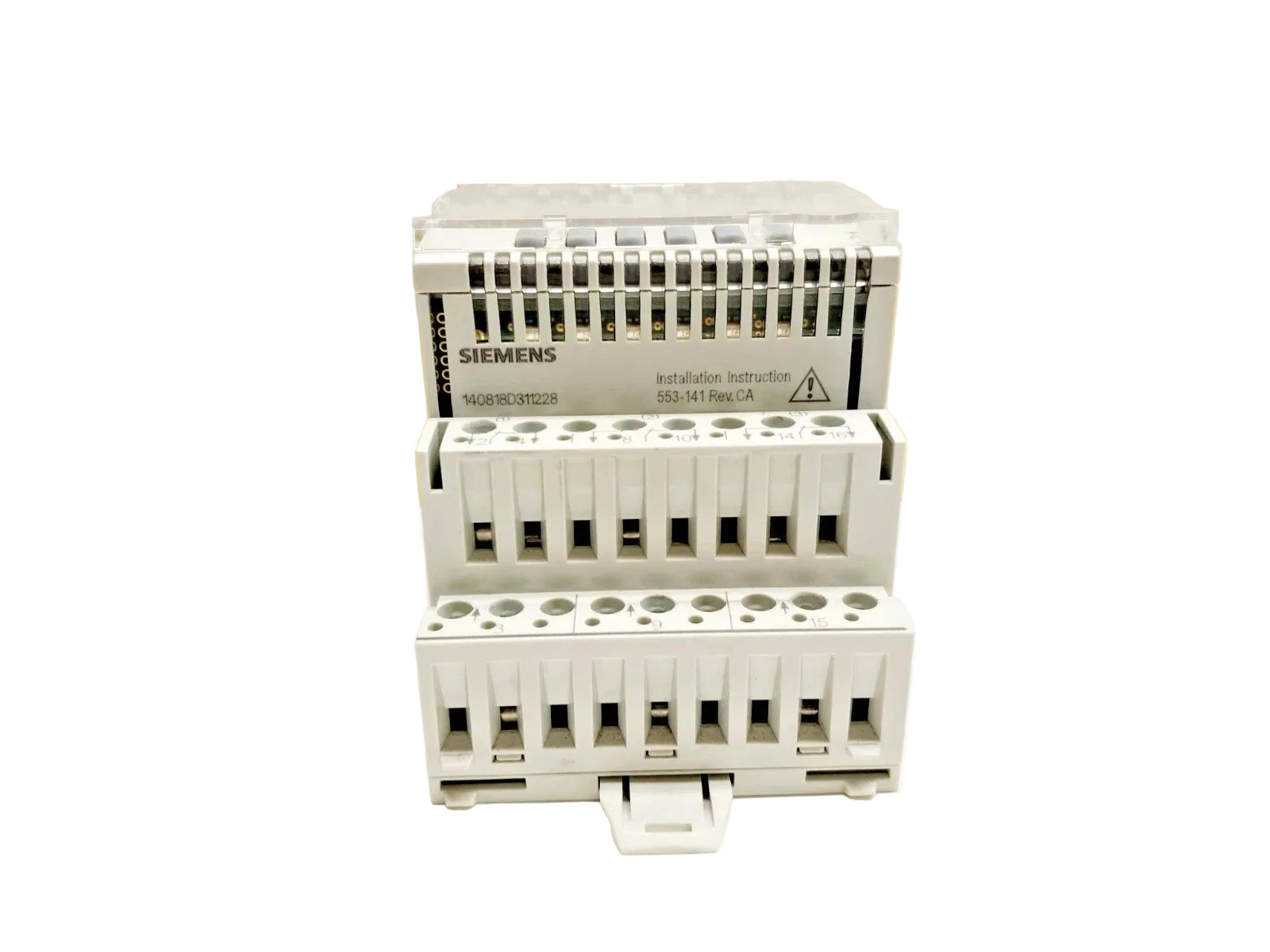

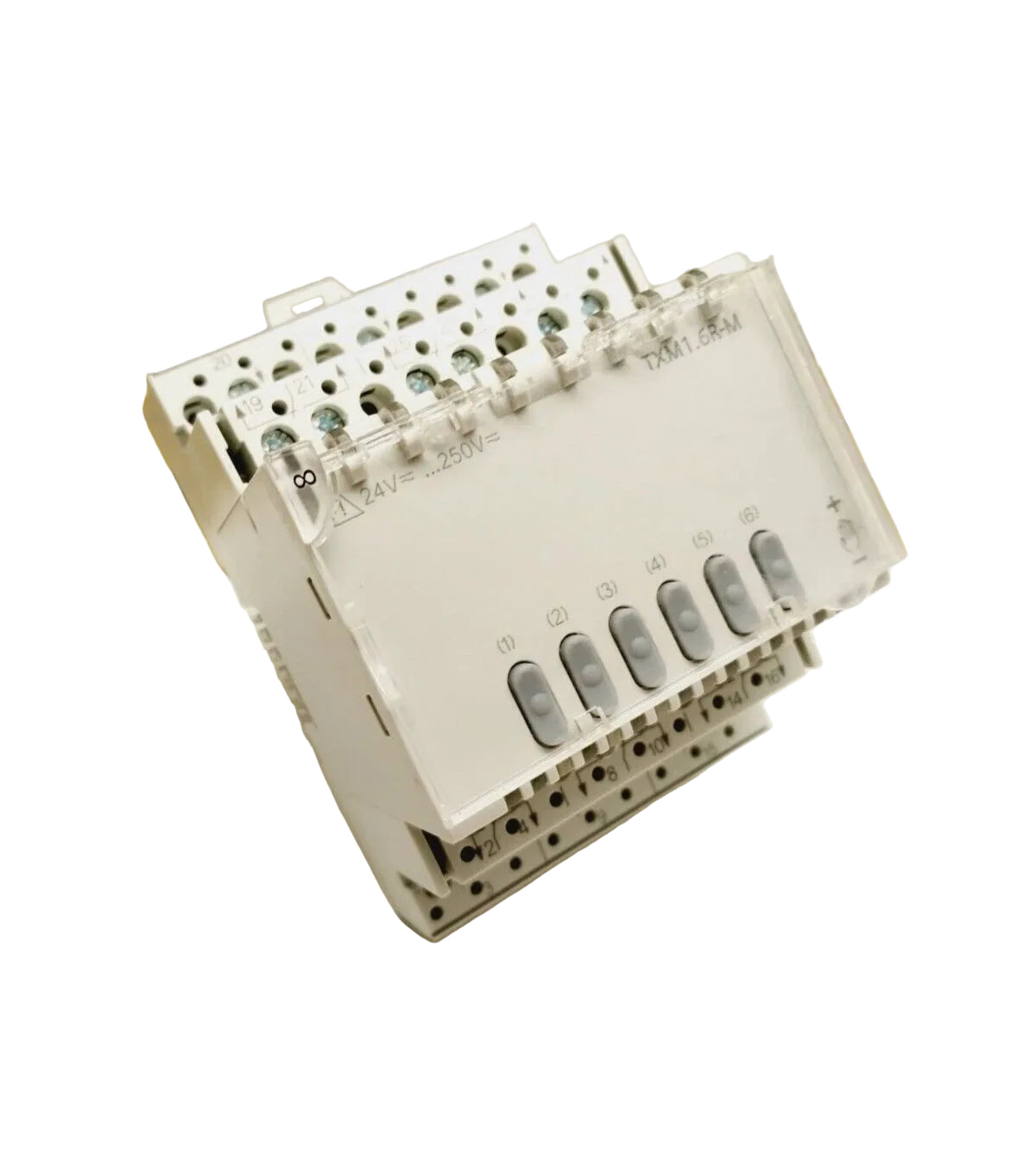

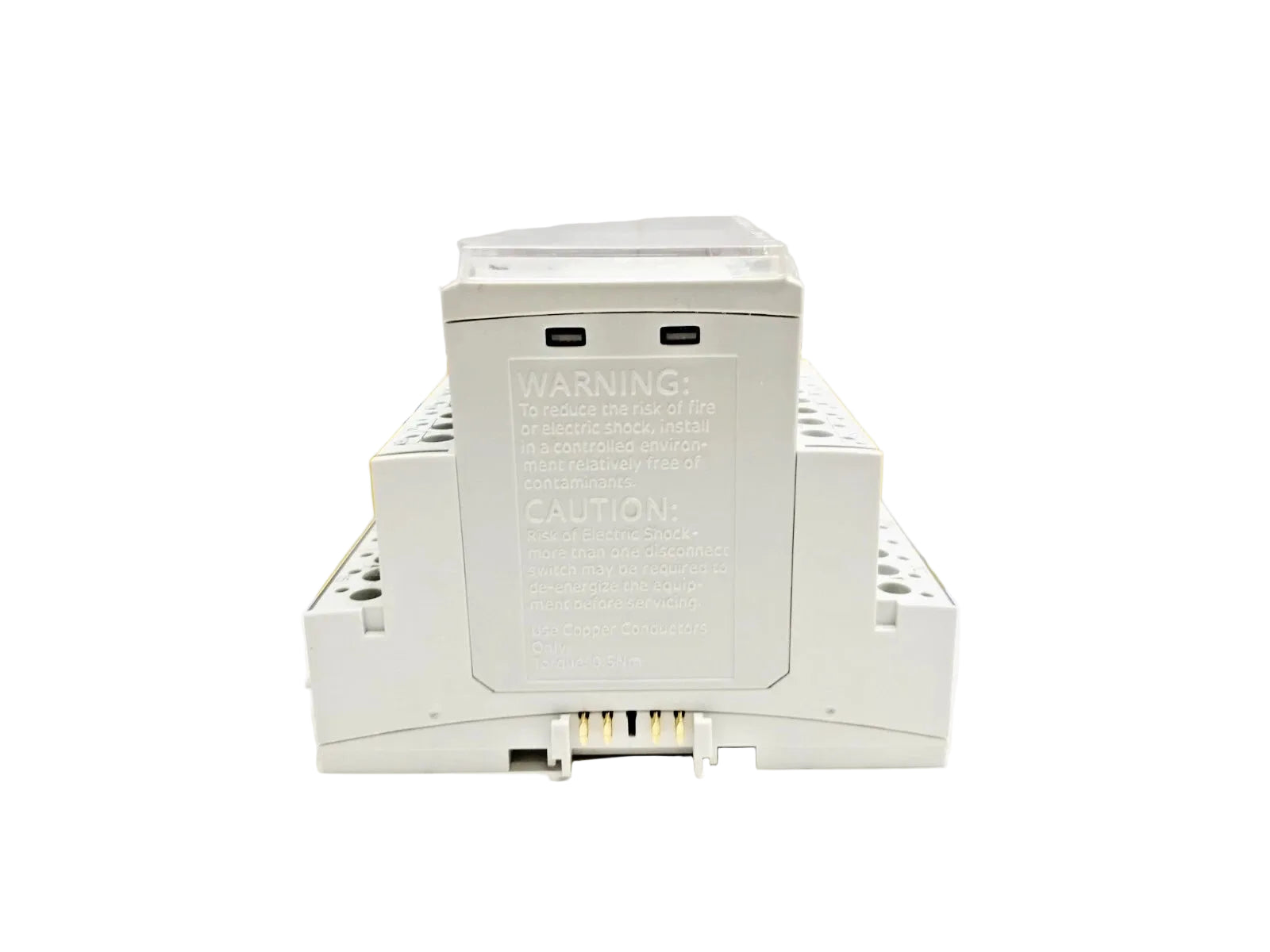

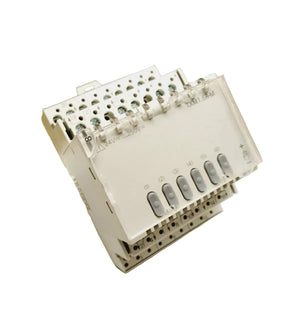

TXM1.6R-M | Siemens TX-I/O 6-Channel Digital Relay Output Module
- Regular price
- $225.00
- Sale price
- $225.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TXM1.6R-M
Description
The Siemens TXM1.6R-M provides flexible and reliable digital relay output functionality across six independently configurable channels. This module supports various output modes including continuous or impulse contact, single-stage or multi-stage control, and three-point positioning with an internal stroke model—making it suitable for diverse building automation and control applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Siemens |
|
Category |
PLCs and Accessories
|
|
Part Number |
TXM1.6R-M |
| Subcatecory |
PLC Expansion Modules
|
| Output Channels | 6 Digital Relay Outputs |
| Output Configuration | Continuous, Impulse, Multi-stage, 3-point |
| Switching Voltage | AC 12–250 V / DC 12–30 V |
| Max Switching Current | 4 A |
| Relay Type |
Electromechanical
|
| Manual Override | Yes |
| LED Status Indicators | Red, Yellow, Green |
| Mounting | TX-I/O System Module |
Information About TXM1.6R-M
The TXM1.6R-M is a 6-channel digital relay output module from Siemens’ TX-I/O series. Although it has been discontinued by the manufacturer, it remains a notable solution for legacy systems that require precise and versatile relay control. Each channel supports switching voltages from AC 12…250 V or DC 12…30 V, with a maximum switching current of 4 A. The module features local override functionality and LED status indicators (red, yellow, green) for immediate operational feedback.
Key Features:
-
Six Configurable Relay Outputs: Each output can be set to function as a continuous or impulse contact, single- or multi-stage, or as a three-point positioning output.
-
Wide Switching Voltage Range: Supports AC 12–250 V and DC 12–30 V, providing flexibility in various control scenarios.
-
High Switching Current: Handles up to 4 A per output, suitable for controlling a variety of end devices.
-
Local Override Control: Enables manual override at the module for maintenance or emergency situations.
-
LED Status Indicators: Red, yellow, and green LEDs give clear feedback on the status of each channel.
-
Discontinued Model: Though no longer in production, it remains relevant for existing TX-I/O system deployments.
The TXM1.6R-M offers versatile relay output capabilities, particularly useful in HVAC and building automation scenarios where flexible switching logic is needed.
