Type 546 Pro | GF Piping Systems Manually Operated Modular Ball Valve for Industrial Process Piping
- Regular price
- $442.00
- Sale price
- $442.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Type 546 Pro
Description

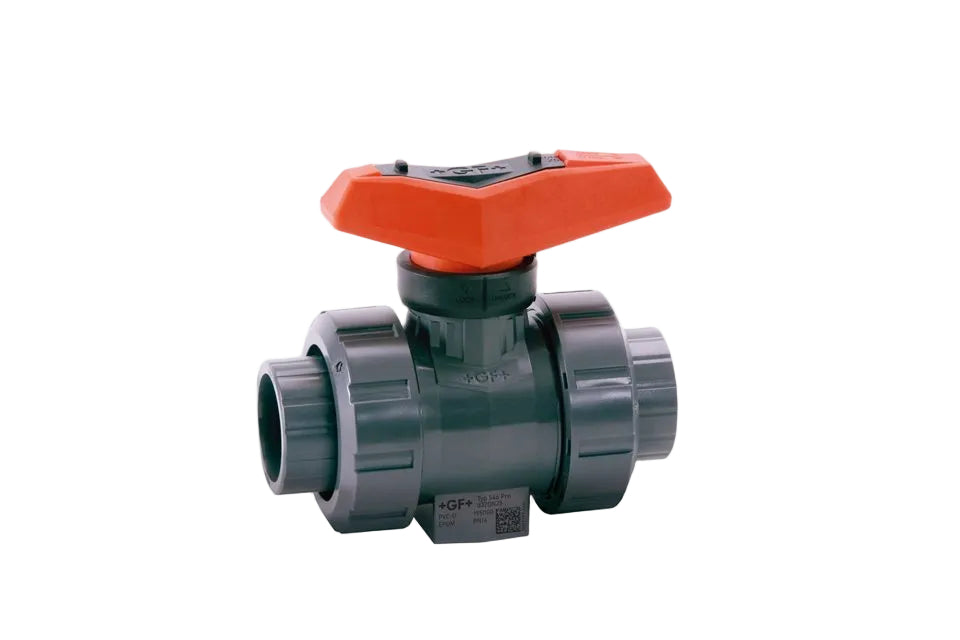

The GF Piping Systems Type 546 Pro is a manually operated ball valve designed for reliable shutoff and controlled flow regulation in industrial piping networks. Built for applications ranging from water handling to aggressive chemical processing, the Type 546 Pro uses a 90° quarter-turn ball mechanism to provide straight-through flow when open and tight isolation when closed. Its modular valve platform supports safe operation and flexible integration in process environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GF Piping Systems |
| Category | Industrial Valves |
| Part Number | Type 546 Pro |
| Subcategory | Ball Valves |
| Valve Type | Ball valve, quarter-turn |
| Actuation | Manually operated (lockable hand lever) |
| Primary Function | Open/close shutoff and regulating applications |
| Size Range | d16/DN10 to d110/DN100 (up to d160/DN150); ⅜” to 4” (up to 6”) |
| Valve Body Materials | PVC-U, PVC-C, ABS, PP-H, PVDF |
| Lever Material | PP-GF30 |
| O-Ring Materials | EPDM, FKM, FFKM |
| Seat Materials | PTFE, PVDF |
| Pressure Rating (by material) | ABS/PP-H: PN10; PVC-U/PVC-C/PVDF: PN16 |
| Connection Types | Fusion/spigot, solvent cement socket/spigot, threaded (Rp/NPT/Rc), backing flange (ISO/ANSI/BS/JIS), butt fusion (SDR11/SDR17.6), PE100 electrofusion |
| Standards / Testing | EN ISO 16135; ISO 9393-2; EN 12266-1 (leakage rate A) |
| Approvals | ACS, D.M. 174, DNV, FDA, NSF/ANSI, SIL, WRAS, ABS, BV, DiBT, RINA, LR |
| Marking | DataMatrix code with production data |
| Weight | 0.1 lb |
Information About Type 546 Pro

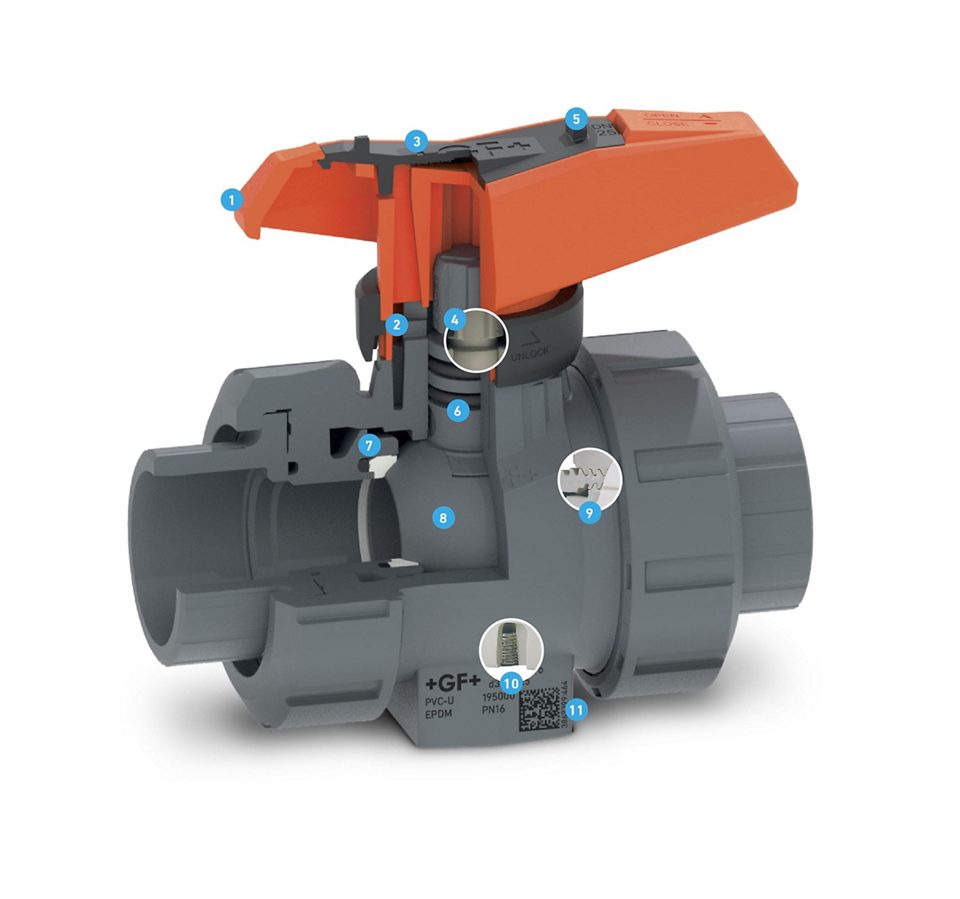

The Type 546 Pro is a modular industrial ball valve from GF Piping Systems engineered for process piping where chemical resistance, installation flexibility, and operational safety are required. It is produced with multiple valve body material options (PVC-U, PVC-C, ABS, PP-H, PVDF) and seal selections (EPDM, FKM, FFKM) to match media compatibility and temperature/pressure demands. The valve is designed for compatibility with manual operation as standard and supports standardized actuator interfaces for universal automation options when required. It incorporates traceability via a Data Matrix Code and uses a union-style construction with mounting base options and connection variants for common industrial piping standards.
Key Features:
- Quarter-Turn Ball Operation: Rotating ball shuts off or opens flow with a 90° movement for fast isolation and repeatable positioning.
- Modular Valve Platform: Interchangeable components and connection options support adaptation to piping and process requirements.
- Lockable Manual Lever: Integrated locking function helps prevent unintended actuation during operation or maintenance.
- Integrated Union Bush Tool: Lever design includes a built-in tool function to assist with opening the union bushing during installation/service.
- Broad Material Compatibility: Valve body and seal material combinations support neutral and aggressive media, including chemical process applications.

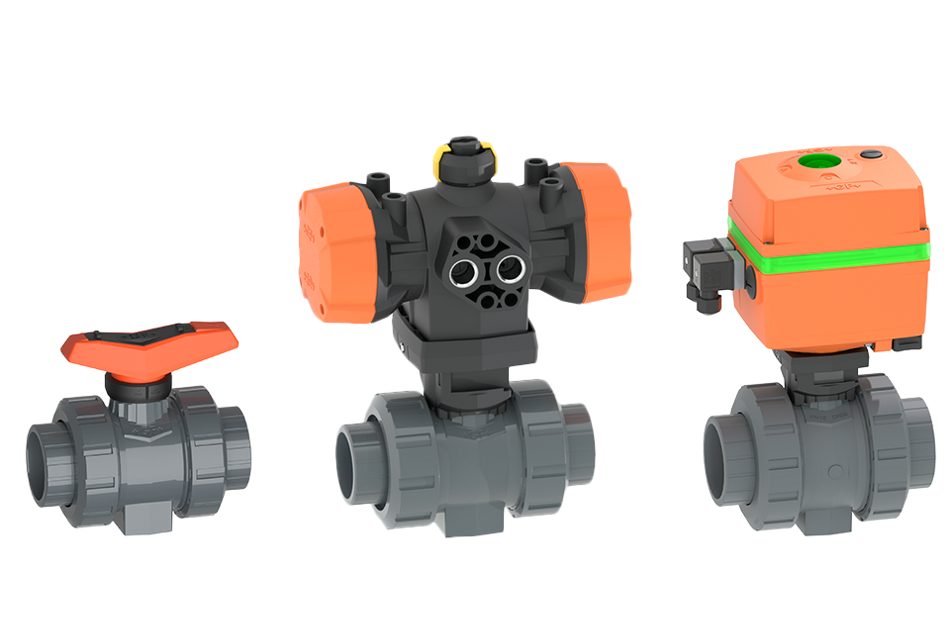

- Automation Interface Provision: Standardized actuator interface enables pneumatic or electric actuation configurations when needed.
- Traceability Marking: Data Matrix Code provides production data identification for documentation and lifecycle tracking.
- High-Flow Geometry Options: Standard high flow design and optional linear-flow ball versions support regulation needs across the stroke.
The Type 546 Pro delivers the reliability and precision required for industrial quarter-turn flow isolation and control in process piping systems.
