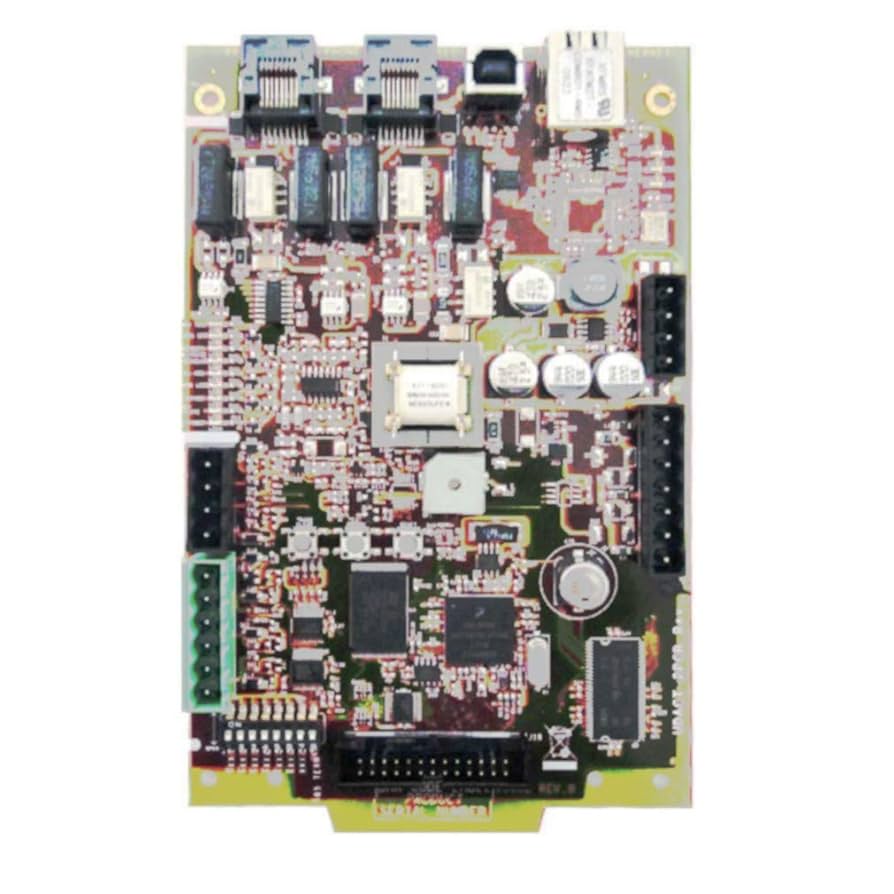

UDACT-2 | Notifier Universal Digital Alarm Communicator Transmitter
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: UDACT-2
Description
The Notifier UDACT-2 is a 24 VDC digital alarm communicator transmitter that connects fire alarm control panels to UL-listed central stations over phone lines. It provides real-time status reporting and supports Verifire® programming for flexible system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Notifier |
| Category |
Fire Safety
|
| Part Number | UDACT-2 |
| Subcategory | Fire Alarm Control |
| Power Input | 24 VDC (regulated), 21.2–28.2 VDC range |
| Standby Current | 40 mA |
| Current While Communicating | 75 mA |
| Max Current (relay activated) | 100 mA |
| Programming Interface | USB and EIA-485 (VeriFire Tools) |
| Reporting Capacity | Up to 2,040 points |
| Phone Line Support | Dual line supervision with voltage detect |
| Message Rate | 14 point trouble messages/hour |
| Communication Formats |
Ademco Contact ID (required), 4+2 Standard, SIA |
| Mounting Options | Panel or remote in ABS-8RB, UBS-1B/R |
| UL Listed Receivers | Ademco 685, MX8000, SurGard MLR2, Silent Knight, etc. |
| Agency Approvals | UL, FM, CSFM, FDNY |
| Dimensions | 6.75" x 4.25" (17.145 x 10.795 cm) |
| Weight | 0.10 lbs |
Information About UDACT-2
The UDACT-2 is engineered to transmit system status, including alarms, troubles, supervisory signals, and power losses, from Notifier control panels to a central station. It supports both modern and legacy panels—such as NFS-3030, NFS2-3030, NFS2-640, and the NCA-2 annunciator—and can report up to 2,040 points via the Ademco Contact ID protocol. The module supports dual phone lines with line voltage detection, helping ensure reliable communication under all conditions.
Programming and firmware updates are completed via VeriFire® Tools through USB or serial port. The device includes an EIA-485 interface to the host panel and supports real-time clock stamping, extensive event annunciation (manual test, AC fail, battery loss, etc.), and transmission of up to 14 trouble messages per hour. It can be mounted in the panel or in a remote ABS/metal enclosure and is approved by UL, FM, CSFM, and FDNY.
Key Features:
- Wide System Compatibility: Works with Notifier NFS-series panels, legacy models, and the NCA-2 annunciator.
- High-Capacity Reporting: Supports reporting for up to 2,040 points using Ademco Contact ID format.
- Dual Phone Line Monitoring: Includes line voltage detection and auto-switching between two phone lines.
- USB and EIA-485 Interfaces: Allows easy programming and integration via VeriFire® Tools.
- Multi-Zone Signal Support: Transmits alarm, trouble, supervisory, bell trouble, battery loss, and AC fail conditions.
- Flexible Mounting Options: Installs in-panel or remotely using ABS or metal enclosures (ABS-8RB, UBS-1B/R).
- Event Annunciation & Testing: Includes test signals, kiss-off timers, line seize indicators, and communication fail status.
- Low Power Consumption: Draws just 40 mA standby, 75 mA during communication.
- Real-Time Clock and Relay Output: Tracks events accurately and supports open-collector relay driver for failure alerts.
- UL Listed Receiver Compatibility: Approved for use with Ademco, SurGard, Radionics, FBI CP, and other central station receivers.
The UDACT-2 enables centralized monitoring of fire alarm events with high-capacity communication, protocol flexibility, and reliable phone-line supervision.
