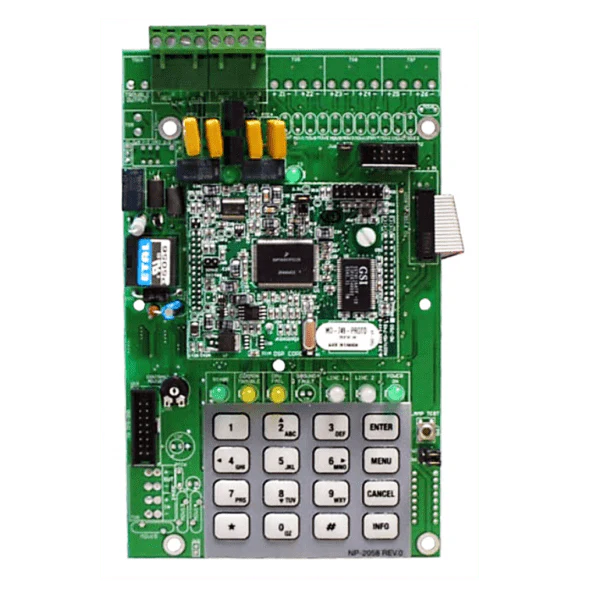

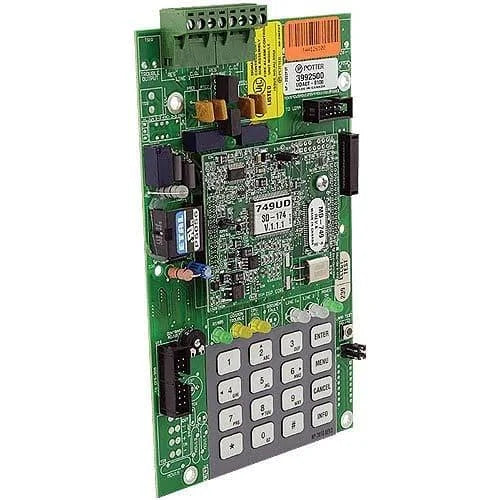

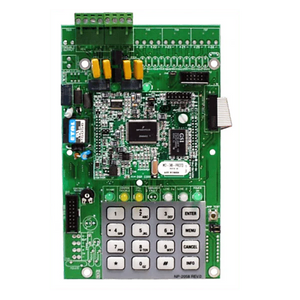

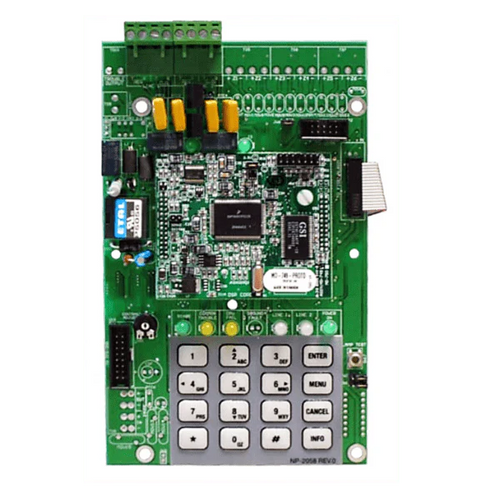

UDACT-300A | Mircom Digital Alarm Communicator Transmitter Dialer Module

Description

The Mircom UDACT-300A is a digital alarm communicator transmitter (DACT) and dialer module designed to send alarm, supervisory, waterflow, and trouble signals to monitoring facilities. It supports integration with Mircom FA-1000, FX-2000, FleX-Net, and SFC-300 panels, using dual telephone lines for reliable communication.

Technical Specifications

Information About UDACT-300A

The UDACT-300A is a versatile communicator module developed by Mircom to enhance fire alarm system connectivity with remote monitoring stations. It is compatible with several Mircom panel series, including FA-1000, FX-2000, and FleX-Net, and transmits event data via two supervised telephone lines. Operating in DACT mode, the module sends common alarm, supervisory, and trouble conditions, while in UDACT mode, it supports point-specific reporting. Additional features include ZDACT grouping, programmable circuit numbering, and an override function for device type reporting. With both local and remote programming capabilities, event logging, and LED supervision indicators, the UDACT-300A offers flexibility, security, and compliance for critical communication applications.

Key Features:

• Dual telephone line supervision: Monitors two independent telephone lines every minute, ensuring reliable connection to monitoring facilities and automatic reporting of line faults.
• Flexible communication modes: Operates in DACT mode to transmit general alarm and trouble events, or UDACT mode for detailed point-specific reporting to enhance monitoring accuracy.
• Advanced reporting features: Includes ZDACT grouping for software-based event grouping, event number offset for unique circuit reporting, and device type override for custom signal classification.
• Comprehensive programming options: Configurable onsite via built-in keypad, CFG-300, or UIMA software, and remotely via modem with passcode-protected access for secure updates.
• Extensive event logging: Stores up to 500 events from both the local dialer and fire alarm panel, retrievable locally or remotely for review and system diagnostics.
• Reliable line control: Can capture and control telephone lines, disconnecting existing calls to ensure uninterrupted transmission to the Digital Alarm Communicator Receiver (DACR).
• LED status indicators: Provides clear on-board visual feedback of line supervision, transmission activity, and operational status.
• Seamless panel integration: Mounts directly into FA-1000, FX-2000, and FleX-Net chassis for space-efficient installation.
• Secure remote monitoring: Ensures that alarm, supervisory, waterflow, and trouble events are transmitted to central stations with high reliability.
• Compact and lightweight design: At only 1 lb, the module adds advanced communication capabilities without requiring significant space.

The UDACT-300A delivers the reliability and precision required for fire alarm system communication, ensuring critical events are quickly transmitted to monitoring stations.
