UDACT-F | Fire-Lite Universal Digital Alarm Communicator/Transmitter
- Regular price
- $1,286.00
- Sale price
- $1,286.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: UDACT-F
Description

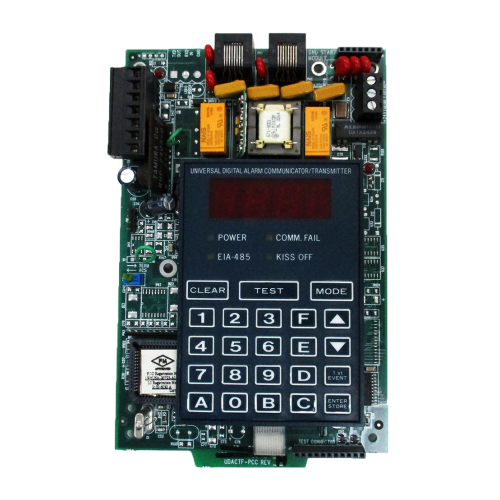

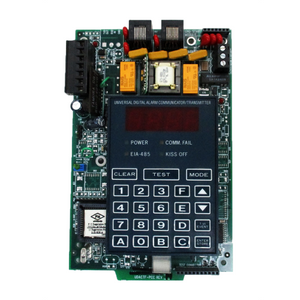

The Fire-Lite UDACT-F is a universal digital alarm communicator/transmitter designed to report fire alarm system events to UL-listed central station receivers. It works with Fire-Lite MS-9200, MS-9600, and Sensiscan 2000 control panels, providing reliable reporting via public telephone networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm Systems |
| Part Number | UDACT-F |
| Subcategory | Communicators / Transmitters |
| Compatible Panels | Fire-Lite MS-9200, MS-9600, Sensiscan 2000 |
| Communication Method | Public Switched Telephone Network (PSTN) |
| Protocol Support | EIA-485 annunciator bus |
| Telephone Lines | Dual with line voltage detection |
| Programmable Features | Built-in programmer, test reporting, transmission clear |
| Display | Four-character red 7-segment LED |
| Reporting Capability | 198 points/56 zones (MS-9200); 636 points/99 zones (MS-9600); 56 zones (Sensiscan 2000) |
| Supervisory Reporting | Alarm, trouble, supervisory, AC loss, low battery, earth fault |
| Test Signals | 12- or 24-hour programmable; abnormal test per UL |
| Mounting Options | Internal to panel or external via ABS-8RF or UBS-1F enclosure |
| Dimensions | 6.75" W x 4.25" H (17.15 x 10.80 cm); overall 10" x 7" x 3" packaging |
| Weight | 1 lb (0.45 kg) |
| Compliance | UL Listed, NFPA 72 compliant |
Information About UDACT-F
The D1255RB is a Bosch fire alarm and intrusion system keypad that functions as both an annunciator and system controller. Equipped with a vacuum fluorescent display, it provides real-time system status in English text, making it easy for operators to interpret system conditions. The keypad includes a built-in sounder that generates distinct condition tones for alarms, troubles, and supervisory events. Its user-controlled brightness and volume settings ensure clear visibility and audibility in different environments. Fully SDI bus compatible, the D1255RB integrates seamlessly with Bosch combined control panels, providing dependable remote control and annunciation.
Key Features:
- Dual-Function Device: Operates as both a system controller and annunciator for Bosch fire and intrusion panels.
- Vacuum Fluorescent Display: 16-character VFD with 14-segment characters provides clear system feedback.
- Built-in Multi-Tone Sounder: Emits distinct audible signals for alarms, troubles, and supervisory events.
- SDI Bus Communication: Ensures reliable data exchange with compatible Bosch control panels.
- Menu Key Navigation: Provides intuitive system control with easy access to programmed functions.
- Adjustable Settings: User-controlled brightness and volume for customized operation.
- High Visibility Housing: Red enclosure ensures identification as a fire-rated system device.
- Compact and Durable: Lightweight at 2 lbs with slim profile for wall-mount installations.
- UL & NFPA Compliance: Certified for use in fire alarm and life safety applications.
The D1255RB delivers the reliability and precision required for fire system annunciation, intrusion integration, and secure operator control.
Description
The Fire-Lite UDACT-F is a universal digital alarm communicator/transmitter designed to report fire alarm system events to UL-listed central station receivers. It works with Fire-Lite MS-9200, MS-9600, and Sensiscan 2000 control panels, providing reliable reporting via public telephone networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm Systems |
| Part Number | UDACT-F |
| Subcategory | Communicators / Transmitters |
| Compatible Panels | Fire-Lite MS-9200, MS-9600, Sensiscan 2000 |
| Communication Method | Public Switched Telephone Network (PSTN) |
| Protocol Support | EIA-485 annunciator bus |
| Telephone Lines | Dual with line voltage detection |
| Programmable Features | Built-in programmer, test reporting, transmission clear |
| Display | Four-character red 7-segment LED |
| Reporting Capability | 198 points/56 zones (MS-9200); 636 points/99 zones (MS-9600); 56 zones (Sensiscan 2000) |
| Supervisory Reporting | Alarm, trouble, supervisory, AC loss, low battery, earth fault |
| Test Signals | 12- or 24-hour programmable; abnormal test per UL |
| Mounting Options | Internal to panel or external via ABS-8RF or UBS-1F enclosure |
| Dimensions | 6.75" W x 4.25" H (17.15 x 10.80 cm); overall 10" x 7" x 3" packaging |
| Weight | 1 lb (0.45 kg) |
| Compliance | UL Listed, NFPA 72 compliant |
Information About UDACT-F
The D1255RB is a Bosch fire alarm and intrusion system keypad that functions as both an annunciator and system controller. Equipped with a vacuum fluorescent display, it provides real-time system status in English text, making it easy for operators to interpret system conditions. The keypad includes a built-in sounder that generates distinct condition tones for alarms, troubles, and supervisory events. Its user-controlled brightness and volume settings ensure clear visibility and audibility in different environments. Fully SDI bus compatible, the D1255RB integrates seamlessly with Bosch combined control panels, providing dependable remote control and annunciation.
Key Features:
- Dual-Function Device: Operates as both a system controller and annunciator for Bosch fire and intrusion panels.
- Vacuum Fluorescent Display: 16-character VFD with 14-segment characters provides clear system feedback.
- Built-in Multi-Tone Sounder: Emits distinct audible signals for alarms, troubles, and supervisory events.
- SDI Bus Communication: Ensures reliable data exchange with compatible Bosch control panels.
- Menu Key Navigation: Provides intuitive system control with easy access to programmed functions.
- Adjustable Settings: User-controlled brightness and volume for customized operation.
- High Visibility Housing: Red enclosure ensures identification as a fire-rated system device.
- Compact and Durable: Lightweight at 2 lbs with slim profile for wall-mount installations.
- UL & NFPA Compliance: Certified for use in fire alarm and life safety applications.
The D1255RB delivers the reliability and precision required for fire system annunciation, intrusion integration, and secure operator control.
