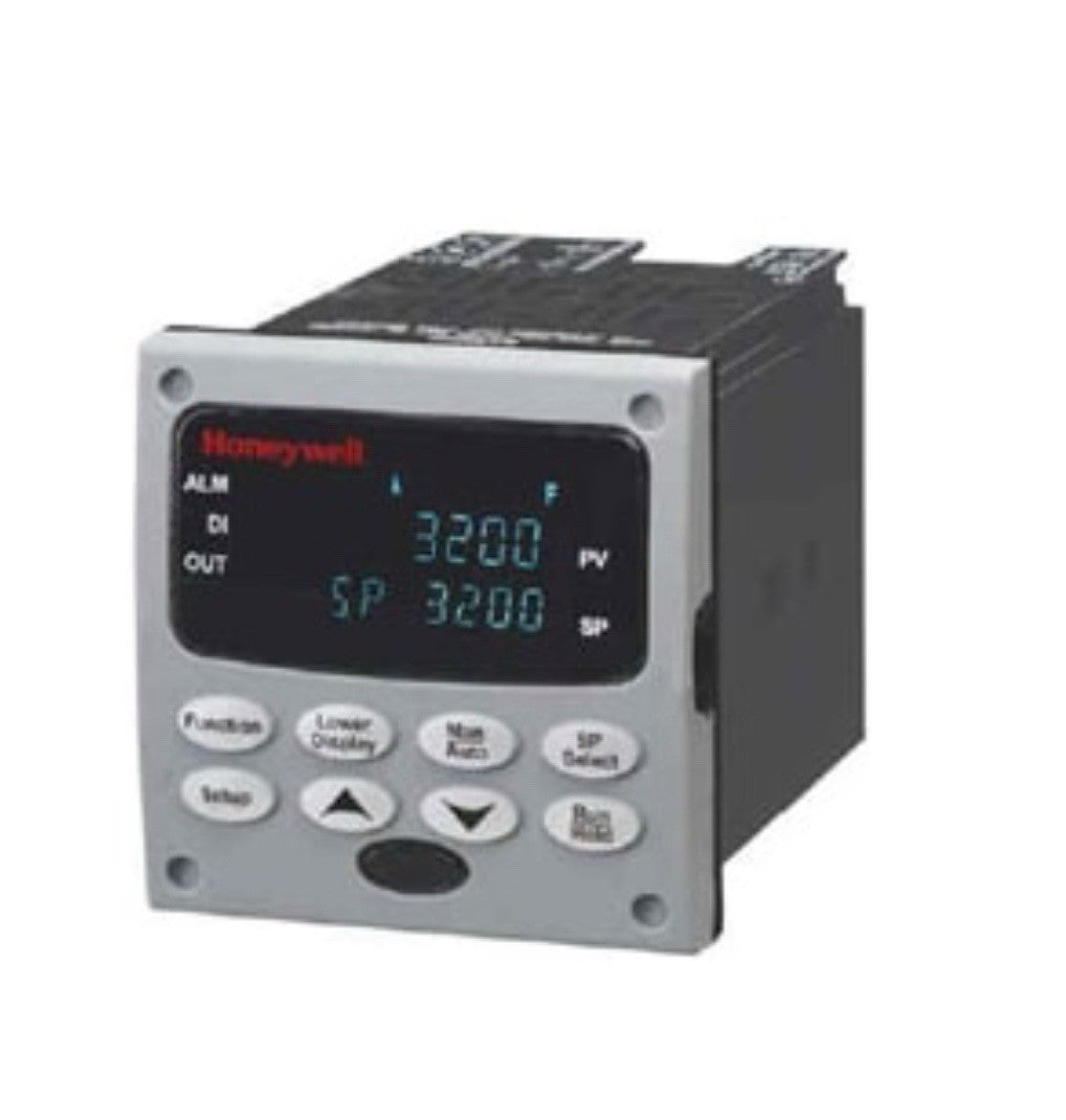

UDC2500-E0-0A00-200-00000-00-0 | Honeywell Universal Digital Controller – ¼ DIN
- Regular price
- $1,119.00
- Sale price
- $1,119.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: UDC2500-E0-0A00-200-00000-00-0
Description
The Honeywell UDC2500-E0-0A00-200-00000-00-0 is a universal digital single-loop controller designed to monitor and regulate process variables such as temperature, pressure, flow and level. Positioned in a ¼ DIN size package, it offers industrial-grade input flexibility, communications and control output capability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Process / Temperature Controller |
| Part Number | UDC2500-E0-0A00-200-00000-00-0 |
| Subcategory | Universal Digital Controller |
| Input 1 Type | Thermocouple, RTD, mV, 0-20 mA, 4-20 mA, 0-10 V |
| Input 2 (High Level) | 0-5 V, 1-5 V, 0-2 V, 0-20 mA, 4-20 mA |
| Accuracy | ±0.25 % typical |
| Scan Rate | 166 ms (approx. 6 Hz) |
| Outputs | Up to 5 configurable analog/digital outputs |
| Digital Inputs | 2 isolated digital inputs |
| Control Algorithm | PID with Accutune III and fuzzy logic |
| Communications | Infrared port, RS-485 Modbus RTU, Ethernet TCP/IP (optional) |
| Front Panel Rating | NEMA 4X / IP66 (depending on model) |
| Mounting Size | ¼ DIN (96 × 96 mm approx.) |
| Power Supply | 90-264 Vac for most models (check variant) |
| Operating Ambient Temperature | Up to ~55 °C ambient (front face rating) |
| Integration | Panel mount, rugged industrial environment |
| Weight | ~1.3 kg (3 lb) approx |
| Communication Protocols | Modbus, Ethernet, Infrared |
| Upgradeability | Field-upgradeable I/O, software options |
Information About UDC2500-E0-0A00-200-00000-00-0
The UDC2500 controller is part of Honeywell’s UDC2500 series of universal digital controllers, built to provide advanced control and monitoring in demanding industrial and OEM applications. It features a universal input capable of accepting thermocouples, RTDs, mV, 0-20 mA/4-20 mA or 0-10 V signals, plus a second high-level input for remote setpoint or monitoring functions. The unit supports multiple analog or digital outputs, dual-display (in many models), field-upgradeable communications (Modbus RS-485, Ethernet TCP/IP), infrared wireless configuration and advanced tuning (PID with “Accutune III” fuzzy logic). The front face meets NEMA 4X/IP66 (in certain configurations) and the controller is downward-compatible with earlier UDC2300 designs.
Key Features:
- Universal input capability: Accepts a wide range of sensor types including thermocouples, RTDs, voltage or current signals.
- Dual-loop or high-level input support: Offers a second high-level input for remote setpoint or monitoring.
- Advanced tuning algorithms: Includes PID control with Accutune III and fuzzy logic overshoot suppression for accurate control.
- Communications flexibility: Offers Ethernet TCP/IP, RS-485 Modbus, infrared PC/pocket-PC configuration options.
- Rugged industrial rating: Front panel rated NEMA 4X/IP66 for wash-down use; ¼ DIN size for panel integration.
- Multi-output options: Supports up to five configurable analog or digital outputs plus alarm or relay outputs.
- Dual display capability: Many models show process variable and setpoint simultaneously for operator clarity.
- Sensor and thermocouple diagnostics: Includes “thermocouple health” monitoring and sensor error detection.
- Field-upgradeable software/hardware: Module options and communications can be added later to suit evolving system needs.
The UDC2500-E0-0A00-200-00000-00-0 delivers the reliability and precision required for universal process control in industrial environments.
