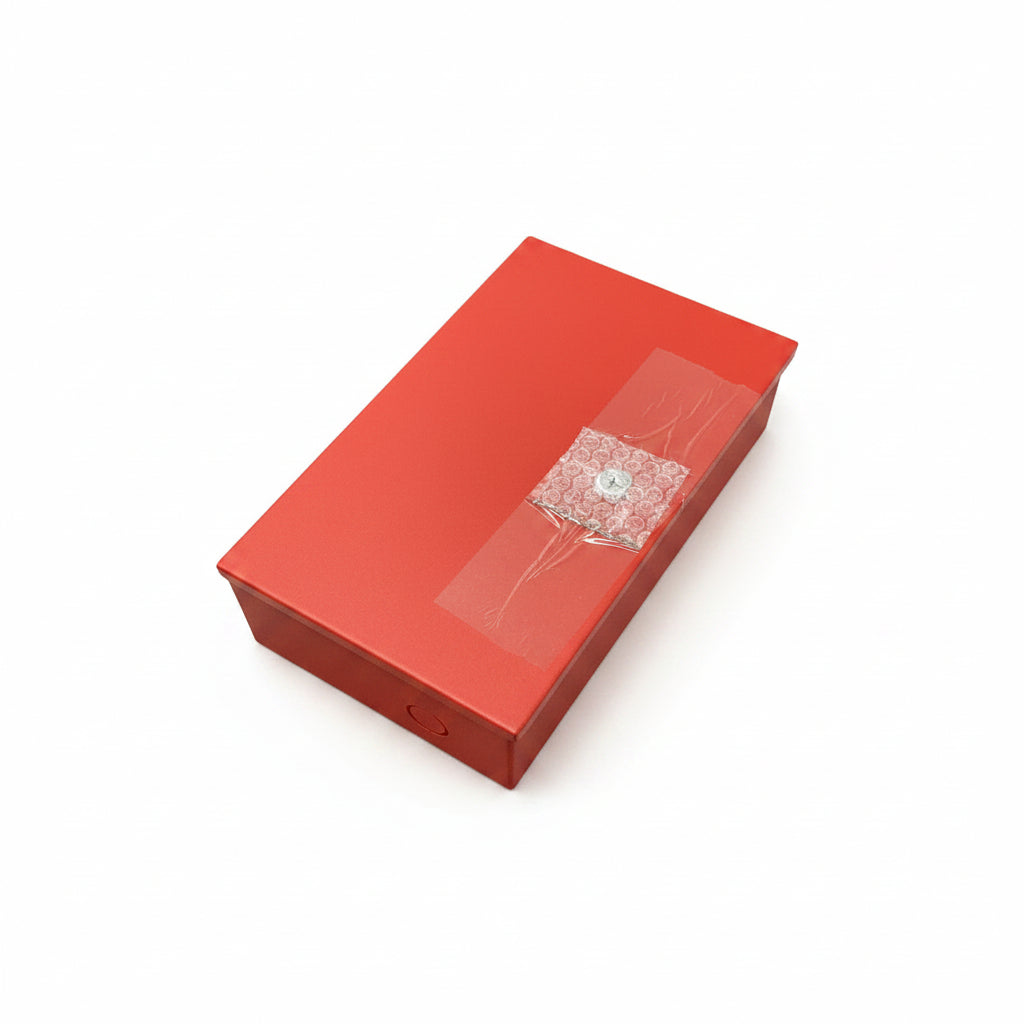

Uplink 4550-CF Cellular Fire Alarm Communicator with Dial Capture
- Regular price
- $449.00
- Sale price
- $449.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4550-CF
Description
The Uplink 4550-CF is a cellular fire alarm communicator designed to transmit alarm and system status signals from compatible fire alarm control panels to a central monitoring station. It captures multiple dialer formats and provides cellular reporting, telephone-line backup monitoring, relay outputs, automated testing, and battery-backed operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Uplink |
| Category | Fire Alarm Systems |
| Part Number | 4550-CF |
| Subcategory | Cellular Fire Alarm Communicators |
| Product Type | Cellular Fire Alarm Communicator |
| Alarm Dial Capture | Contact ID, SIA, Modem IIe/IIa, Pulse, 4/2, DMP-DD |
| Central Station Formats | Contact ID, SIA, Modem IIe/IIa, DMP-IP, Pulse, 4/2 |
| Reporting Path | Cellular, IP or Dial-Up Depending on Configuration |
| Monitored Inputs | 2 Contact-Closure Inputs |
| Relay Outputs | 3 Configurable Relays |
| Automated Testing | Daily, Weekly or Monthly |
| Status Indicators | Cellular Network, Signal Strength, Power, Telco Line, Trouble, Heartbeat |
| Power Supply | Built-In 12 VDC Supply with Battery Charging Circuit |
| AC Transformer | UL Listed 16.5 VAC, 45 VA, Included |
| Battery Backup | 12 VDC, 5.0 Ah, PS-1250-F1 or Equivalent |
| Cellular Radio | 850 / 1900 MHz HSPA+ |
| Transmit Power | Up to 1.0 W at 1900 MHz; 2.0 W at 850 MHz |
| UL Standards | UL 864, UL 1635 |
| Dimensions | 12.2 × 7.5 × 3.9 in |
| Antenna Length | 7.75 in |
| Weight | 4.7 lb |
Information About 4550-CF
The 4550-CF is an Uplink cellular communicator developed for commercial fire alarm reporting applications. Its alarm dial-capture interface supports Contact ID, SIA, Modem IIe/IIa, Pulse, 4/2, and DMP-DD formats for integration with compatible fire alarm control panels. The communicator incorporates two contact-closure inputs, three configurable relay outputs, telephone-line monitoring, and status LEDs for cellular network, signal strength, power, telco line, trouble, and heartbeat conditions. A built-in 12 VDC power supply with charging circuitry supports battery backup, while automated daily, weekly, or monthly testing provides scheduled communication verification.
Key Features:
- Multi-Format Dial Capture: Supports Contact ID, SIA, Modem IIe/IIa, Pulse, 4/2, and DMP-DD alarm formats.
- Cellular Alarm Reporting: Transmits compatible fire alarm and system status information through cellular communication.
- Telephone Line Monitoring: Monitors the telephone line for applications using cellular communication as a backup reporting path.
- Dual Inputs: Provides two contact-closure inputs for additional monitored system conditions.
- Three Relay Outputs: Includes two configurable normally open relays and one configurable normally closed relay.
- Automated Testing: Supports monthly, weekly, or daily communication test intervals.
- System Status LEDs: Provides visual indication for cellular network, signal strength, power, telco line, trouble, and heartbeat status.
- Battery-Backed Power: Includes a 12 VDC power supply with charging circuitry for a compatible 5.0 Ah backup battery.
The 4550-CF delivers the reliability and precision required for cellular alarm transmission and supervised central-station reporting in commercial fire alarm applications.
