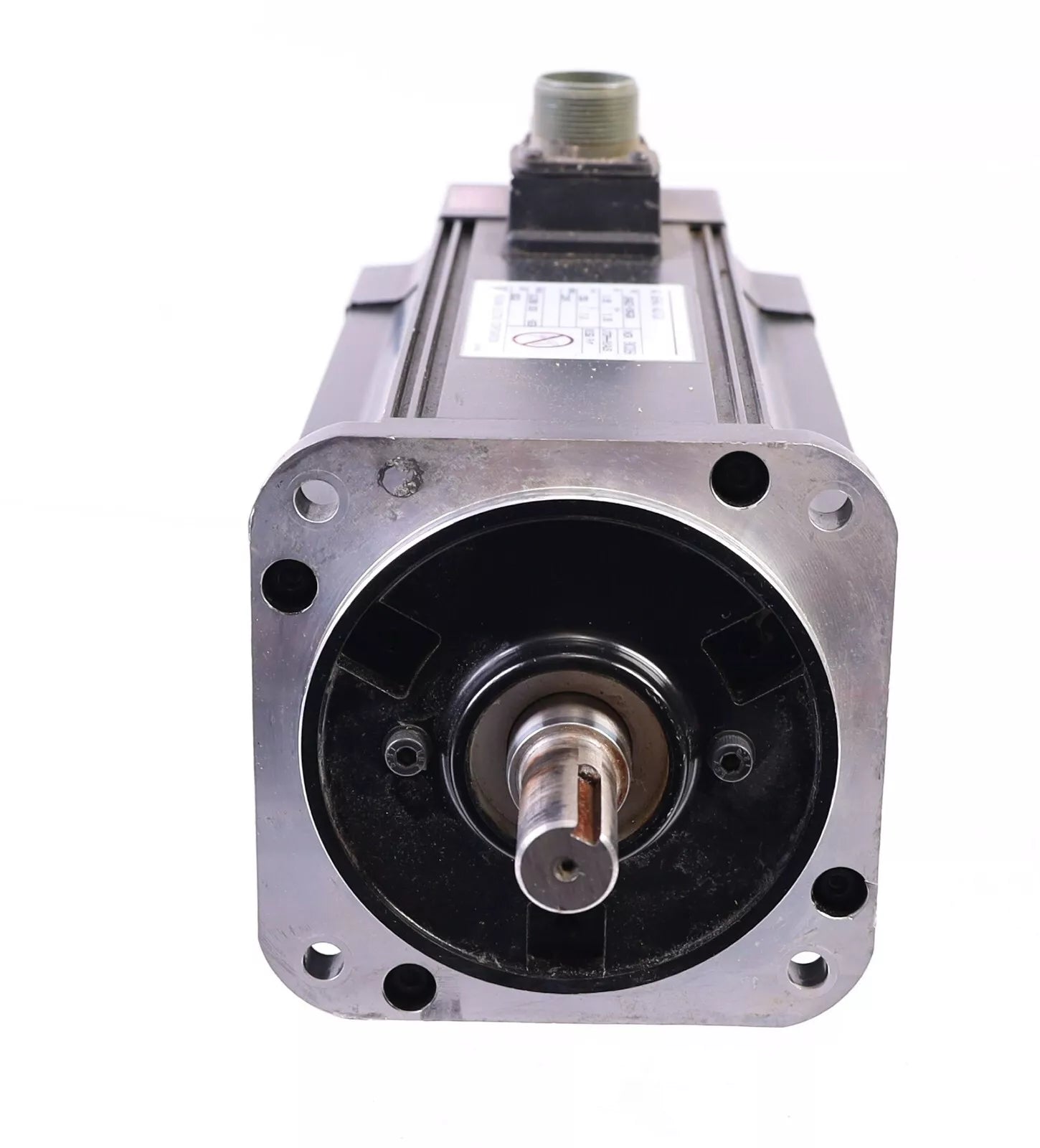

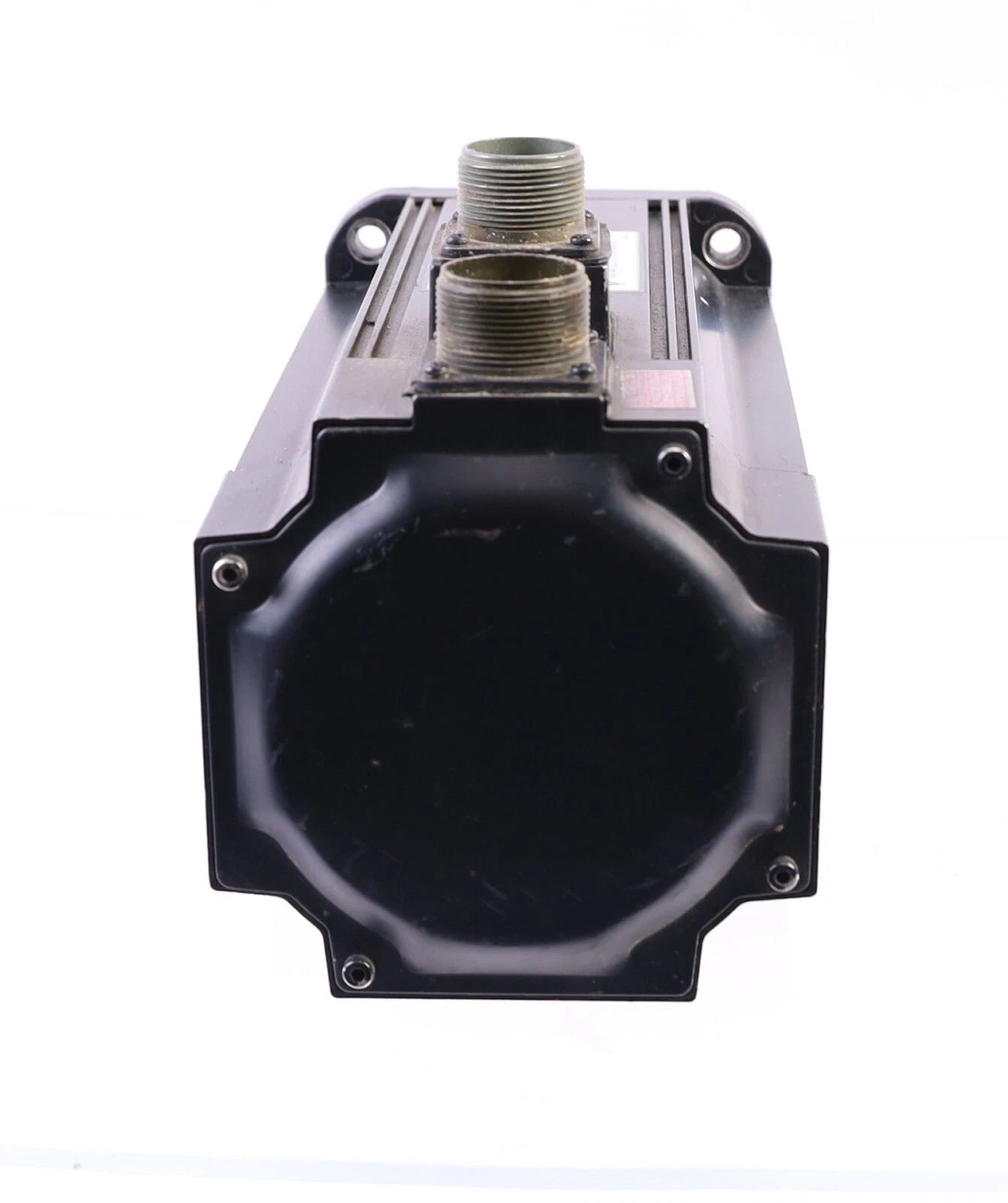

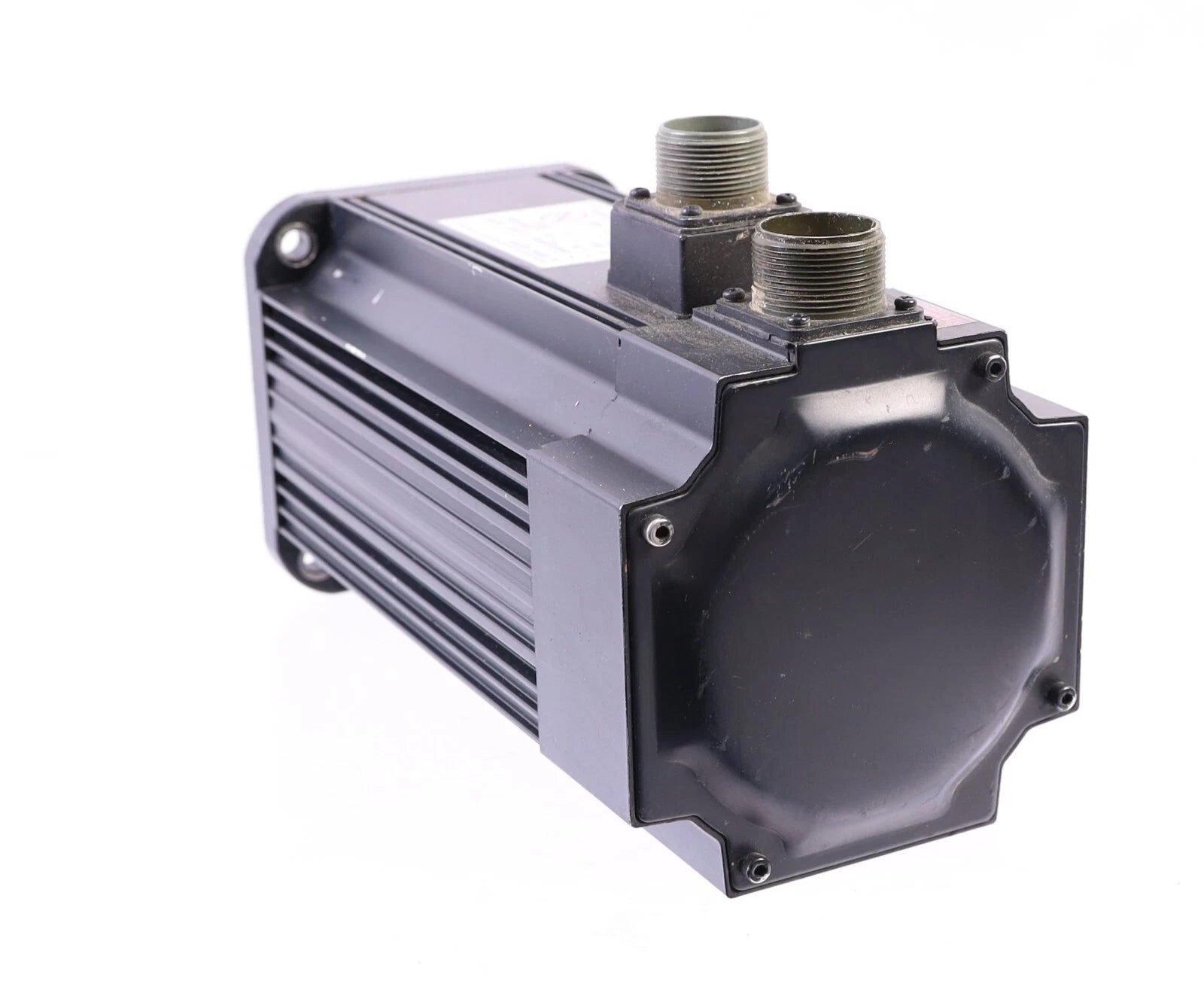

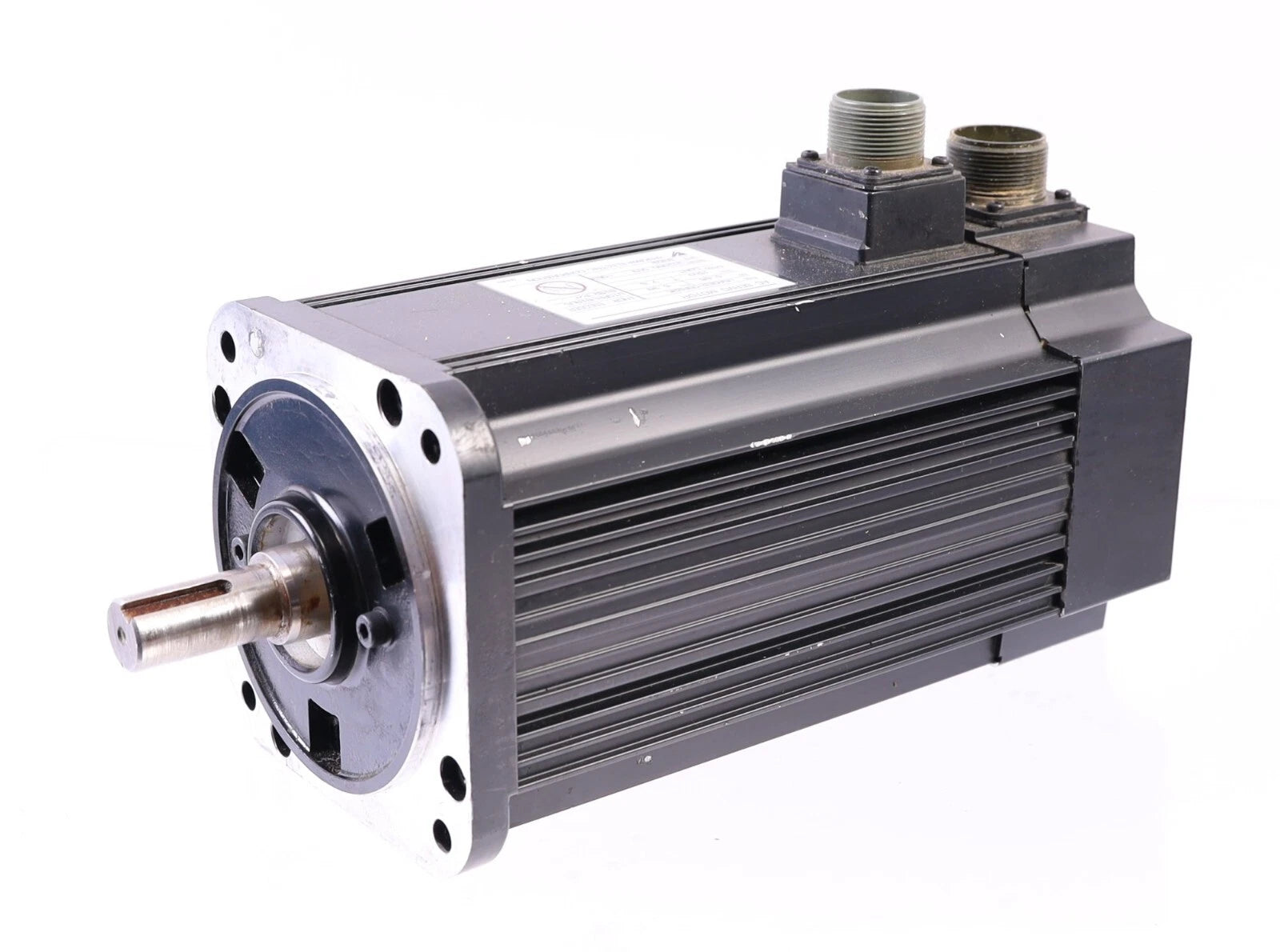

USAGED-09A22K | Yaskawa Electric AC Servo Motor With Incremental Encoder
- Regular price
- $1,812.00
- Sale price
- $1,812.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: USAGED-09A22K
Description
The USAGED-09A22K is a 0.85 kW AC servo motor from Yaskawa's G‑Series, designed for industrial motion control applications. It includes an incremental encoder with 8192 pulses per revolution for high-resolution feedback. The motor offers 5.39 Nm of rated torque and supports speeds up to 1500 rpm, making it suitable for direct-drive automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Yaskawa |
| Category |
Servo Products
|
| Part Number | USAGED-09A22K |
| Subcategory | Servo Motor |
| Rated Output Power | 0.85 kW |
| Rated Torque | 5.39 Nm (48 lb-in) |
| Peak Torque | 16.3 Nm (144 lb-in) |
| Rated Speed | 1500 rpm |
| Max Speed | 3000 rpm |
| Rated Current | 7.6 A |
| Voltage | 200 V AC (nominal) |
| Encoder Type | Incremental, 8192 pulses/rev |
| Moment of Inertia | 12.1×10⁻⁴ kg·m² (21.5×10⁻³ lb·in²) |
| Insulation Class | Class F |
| Cooling Method | Self-cooled, totally enclosed |
| Mounting Style | Flange mount |
| Drive Method | Direct drive |
| Ambient Temp. Range | 0–40 °C |
| Humidity | 20%–80% (non-condensing) |
| Enclosure Protection | Equivalent to IP65 |
| Status | Discontinued by manufacturer |
| Weight | 25.99 lb (≈11.8 kg) |
Information About USAGED-09A22K
The USAGED-09A22K is a totally enclosed, self-cooled AC servo motor built to IP65-equivalent standards, offering strong protection in industrial environments. This model delivers continuous torque of 5.39 Nm and peak torque of up to 16.3 Nm, operating at 7.6 A rated current and 200 V input voltage. Its flange-mounted design and permanent magnet excitation enable precise torque delivery and smooth control in direct-drive configurations.
Key Features:
- Rated Power 0.85 kW: Delivers sufficient power for mid-range servo applications.
- Incremental Encoder: 8192 PPR for high-resolution position feedback.
- Rated Torque 5.39 Nm: Provides stable continuous torque for automation systems.
- Peak Torque 16.3 Nm: Supports dynamic motion with high momentary torque.
- 1500 rpm Rated Speed: Standard performance range for servo motion tasks.
- Permanent Magnet Design: Ensures high efficiency and torque density.
- Totally-Enclosed, Self-Cooled: IP65-equivalent enclosure protects against dust and splashing water.
- Insulation Class F: Withstands high thermal loads in demanding environments.
- Mounting Type: Flange-mounted for stable machine integration.
The USAGED-09A22K delivers precise, mid-power servo performance for motion systems requiring incremental feedback and consistent torque.
