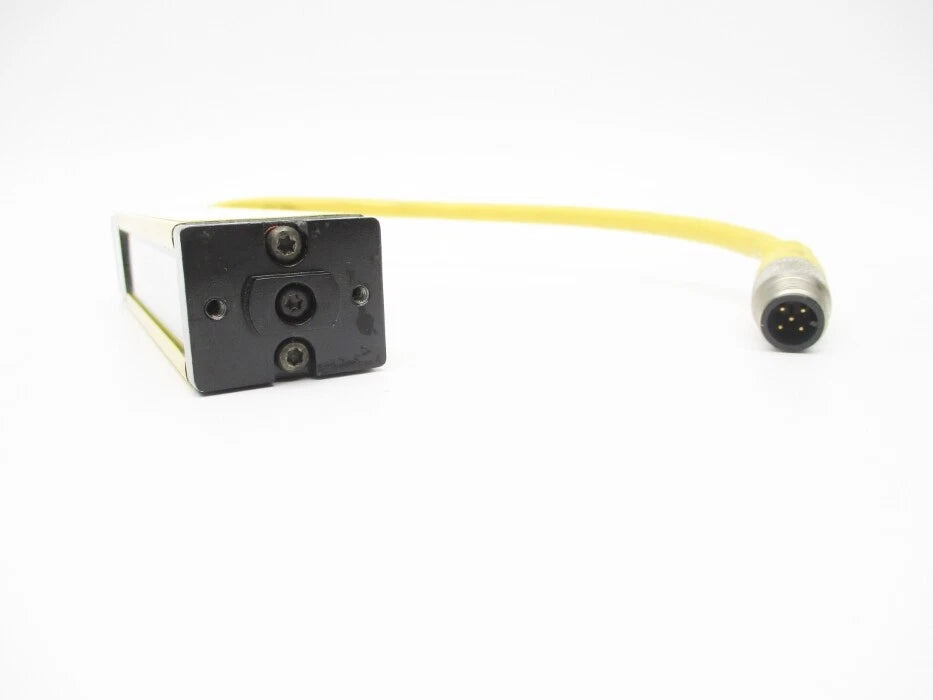

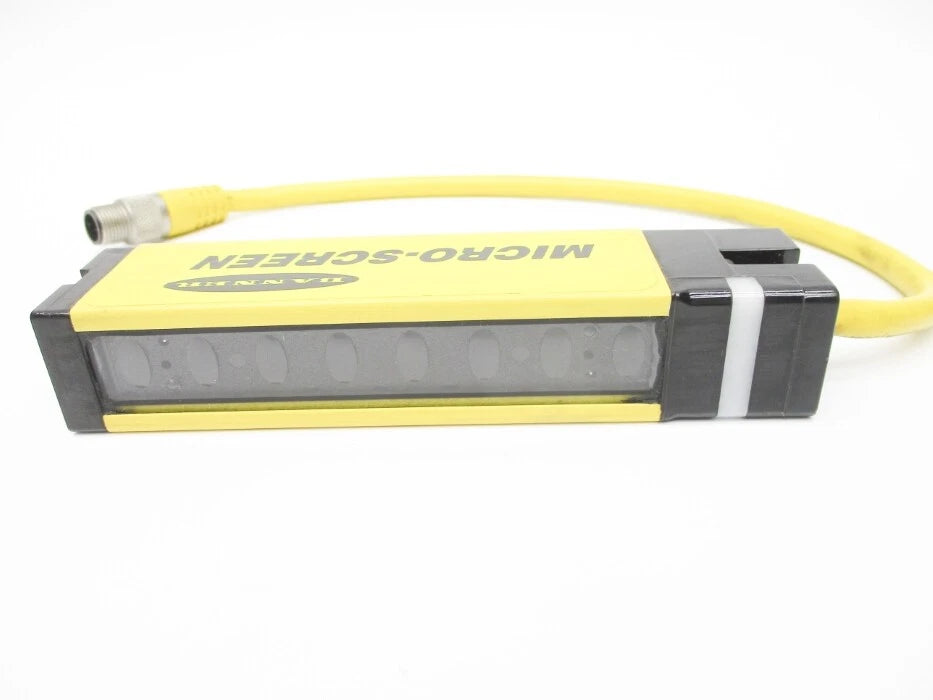

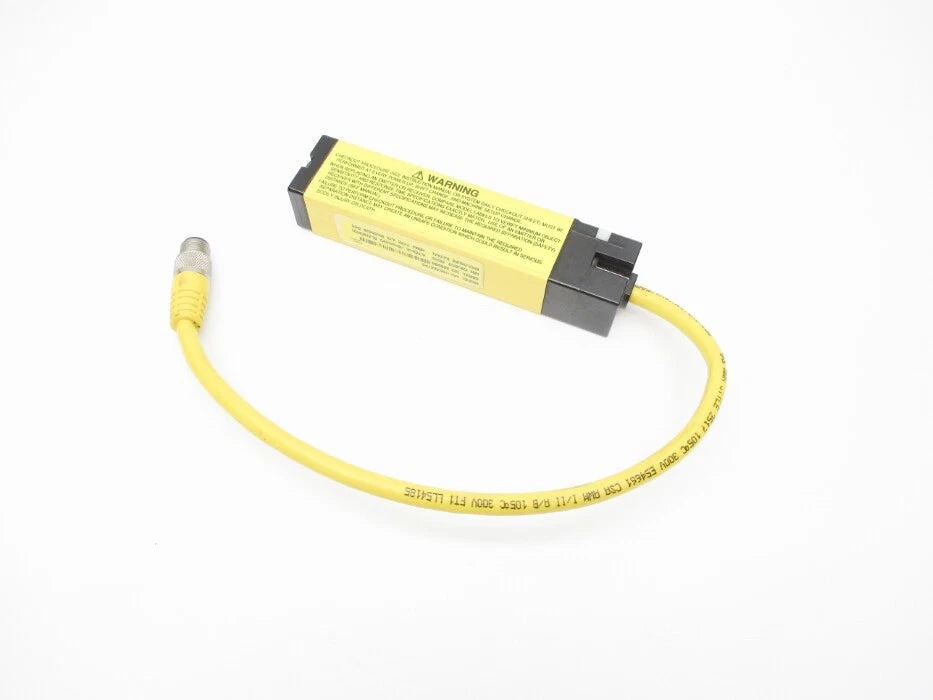

USE424YP2 | Banner Engineering Micro-Screen Safety Light Curtain Emitter, 4 in Area
- Regular price
- $589.00
- Sale price
- $589.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: USE424YP2
Description
The Banner Engineering USE424YP2 is a safety light curtain emitter designed for point-of-operation guarding in industrial environments. It provides a 4-inch defined sensing area using an infrared light source and is intended for use with a compatible Micro-Screen receiver. The emitter operates as part of a two-piece safety system for detecting intrusions into hazardous machine zones.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Safety Systems |
| Part Number | USE424YP2 |
| Subcategory | Light Curtain |
| Series | Micro-Screen |
| System Type | Safety Light Curtain Emitter |
| Defined Area Height | 4 in (approx. 100 mm) |
| Minimum Object Detection | 19 mm (0.75 in) |
| Light Source | Infrared LED |
| Wavelength | 880 nm |
| Operating Range | 0.15 to 9 m |
| Supply Voltage | 24 VDC |
| Response Time | < 38 ms |
| Safety Class | Type 4 |
| Connector Type | M12, 5-pin |
| Housing Material | Aluminum |
| Environmental Rating | IP65 |
| Compatible Receiver | USR424YP2 |
| Weight | 0.61 lbs |
Information About USE424YP2
The USE424YP2 is part of the Banner Engineering Micro-Screen series, which consists of compact safety light curtains for localized machine guarding applications. This unit functions exclusively as the emitter and must be paired with a compatible receiver such as the USR424YP2 to form a complete safety system. It emits a synchronized infrared light field that is monitored by the receiver to detect object intrusion. When correctly integrated with an approved safety controller, the system supports Category 4 safety performance.
Key Features:
-
Safety light curtain emitter: Designed to generate a protective infrared light field.
-
4-inch defined area: Suitable for compact point-of-operation guarding.
-
Infrared light source: Operates at approximately 880 nm wavelength.
-
Micro-Screen system compatibility: Intended for use with matching Micro-Screen receivers.
-
Category 4 capable system design: Supports high-level machine safety when properly configured.
-
M12 connector interface: Provides standardized electrical connection.
The USE424YP2 delivers the reliability and precision required for compact industrial safety light curtain emitter applications.
