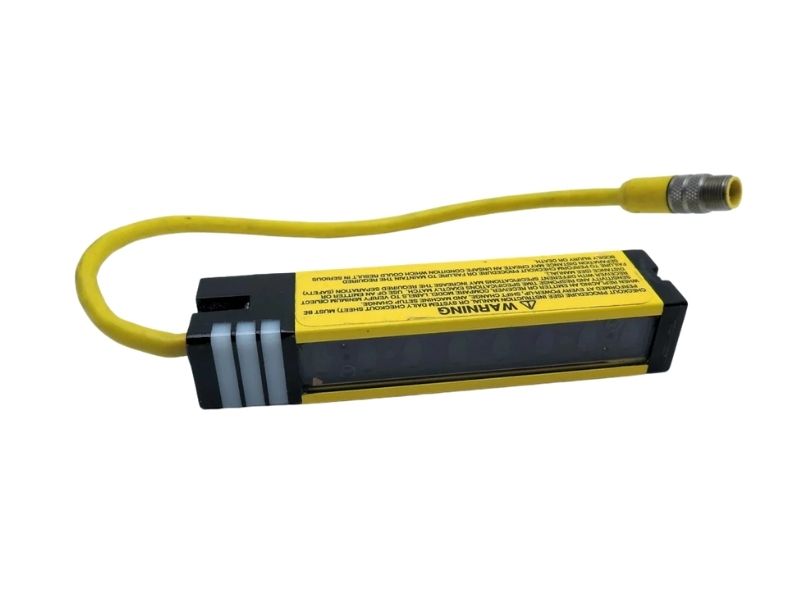

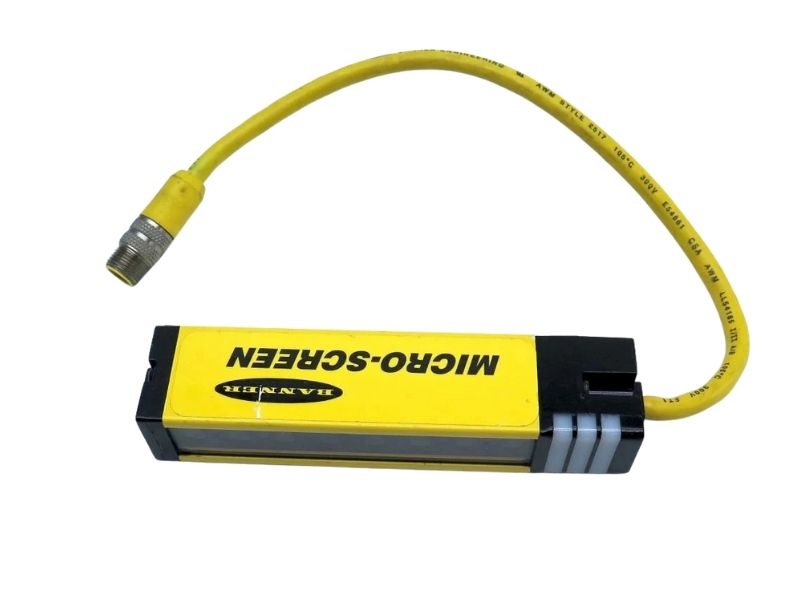

USR424YP2 | Banner Engineering Micro-Screen Safety Light Curtain Receiver, 4 in Area
- Regular price
- $772.00
- Sale price
- $772.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: USR424YP2
Description
The Banner Engineering USR424YP2 is a safety light curtain receiver designed for point-of-operation machine guarding. It provides a 4-inch defined sensing area and is intended to operate as the receiver component in a Micro-Screen safety system. The device detects interruptions in a synchronized infrared light field to support personnel protection in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Safety Systems |
| Part Number | USR424YP2 |
| Subcategory | Light Curtain |
| Series | Micro-Screen |
| System Type | Safety Light Curtain Receiver |
| Defined Area Height | 4 in (approx. 100 mm) |
| Minimum Object Sensitivity | 19 mm (0.75 in) |
| Light Source | Infrared |
| Safety Category | Category 4 (system dependent) |
| Connector Type | M12, 5-pin |
| Housing Color | Yellow |
| Operating Mode | Receiver |
| Compatible Emitter | USE424YP2 |
| Weight | 0.50 lbs |
Information About USR424YP2
The USR424YP2 is part of the Banner Engineering Micro-Screen series, which consists of compact safety light curtains for localized guarding applications. This unit functions as the receiver and must be paired with a compatible emitter, such as the USE424YP2, to form a complete safety system. When properly installed and connected to an approved Banner safety controller, the system can achieve Category 4 safety performance per EN 954-1. The receiver uses a modulated infrared light signal and includes an M12 connector for reliable electrical interfacing.
Key Features:
-
Safety light curtain receiver: Designed to detect beam interruption within a defined safety zone.
-
4-inch defined area: Provides compact protection coverage for point-of-operation guarding.
-
Infrared detection technology: Uses synchronized modulated light for reliable intrusion detection.
-
Micro-Screen series compatibility: Intended for use with matching Micro-Screen emitters.
-
Category 4 capable system design: Supports high-level safety performance when properly integrated.
-
M12 connector interface: Enables secure and standardized electrical connection.
The USR424YP2 delivers the reliability and precision required for compact industrial safety light curtain receiver applications.
