UV464G | Siemens XL-U 200A 600V 4-Wire Fusible Bus Plug for Busway Systems
- Regular price
- $2,284.00
- Sale price
- $2,284.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UV464G
Description

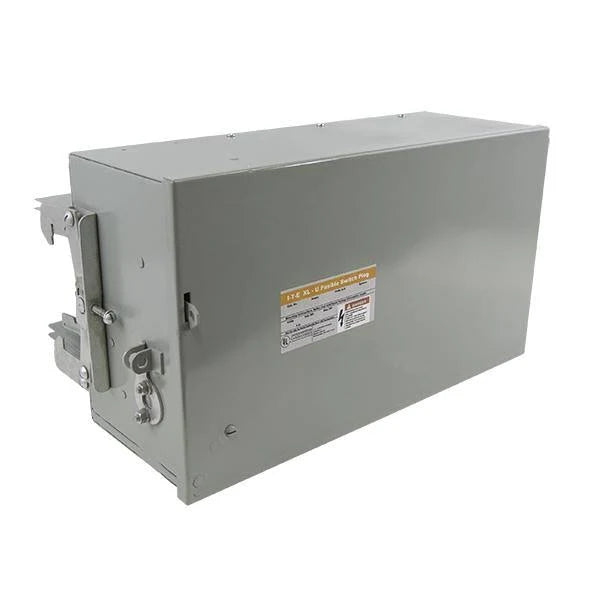

The Siemens UV464G is a fusible bus plug designed for use with Siemens XL-U plug-in busway systems in industrial power distribution applications. Rated for 200 amps and up to 600 volts, the Siemens UV464G provides reliable overcurrent protection through replaceable fuses while enabling safe connection of branch circuits. Its four-wire configuration with grounding supports three-phase electrical systems in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Electrical Distribution |
| Part Number | UV464G |
| Subcategory | Bus Plugs |
| Series | XL-U |
| Device Type | Fusible Bus Plug |
| Rated Current | 200 A |
| Rated Voltage | 600 V |
| Phase | 3 Phase |
| Wire Configuration | 4 Wire |
| Ground | Yes |
| Fuse Classes | R, H, K |
| Interrupt Rating | 150 kA @ 480 VAC |
| Enclosure Rating | IP40 |
| Application | Busway Power Distribution |
| Operation Type | Floor Operable |
| Standards | UL Listed |
| Weight | 7.5 kg |
Information About UV464G
The UV464G is part of the Siemens XL-U busway system accessories used to connect loads to bus duct power distribution systems. This fusible bus plug integrates a switch mechanism and fuse protection to ensure safe branch circuit tapping from the busway. It supports Class R, H, and K fuses and provides high short-circuit interrupting capacity for enhanced electrical protection. Designed for industrial installations, the unit is compatible with Siemens XL-U aluminum and copper busway systems and includes grounding features and a floor-operable design for safe operation.
Key Features:
- XL-U Busway Compatibility: Designed for Siemens XL-U plug-in bus duct power distribution systems.
- Fusible Bus Plug Design: Provides integrated fuse protection for connected branch circuits.
- 200 Amp Current Rating: Supports medium-capacity industrial power distribution loads.
- 600 Volt Operation: Suitable for high-voltage industrial and commercial electrical systems.
- Four-Wire Configuration: Supports three-phase, four-wire systems with integrated grounding.
- High Interrupting Capacity: Rated up to 150 kA at 480 VAC for reliable short-circuit protection.
- Multiple Fuse Class Support: Compatible with Class R, H, and K fuses for flexible protection options.
- Floor-Operable Switch Mechanism: Allows safe and convenient operation during maintenance or service.
The UV464G delivers the reliability and precision required for safe power tapping and circuit protection in industrial busway distribution systems.
