V-PS | Kidde Vigilant Analog Addressable Photoelectric Smoke Detector
- Regular price
- $424.00
- Sale price
- $424.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: V-PS
Description

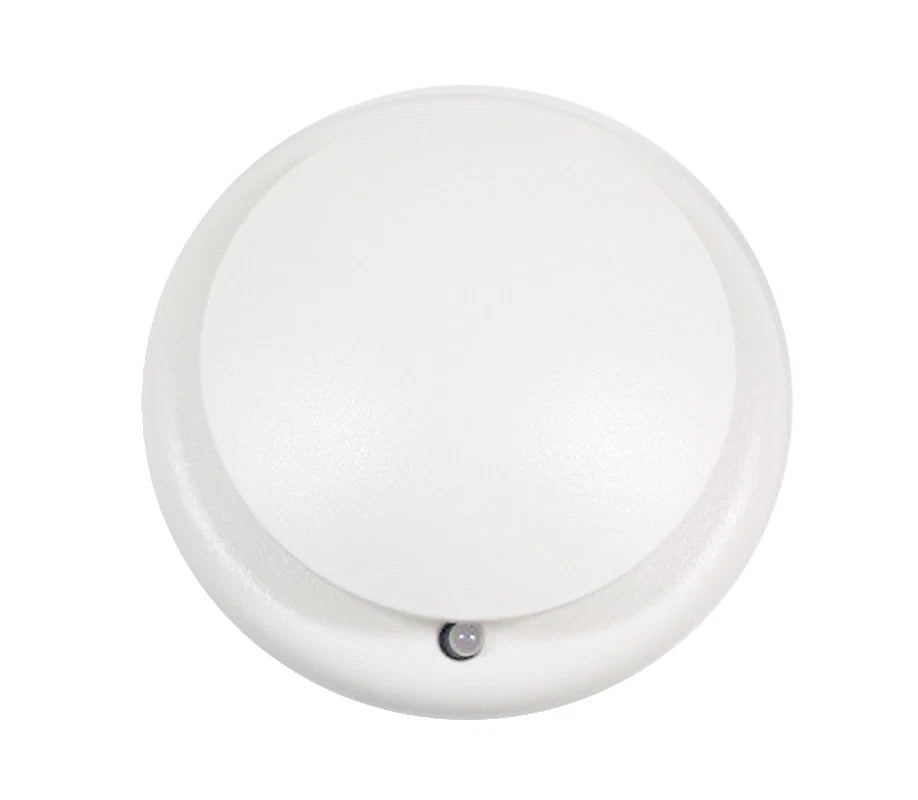

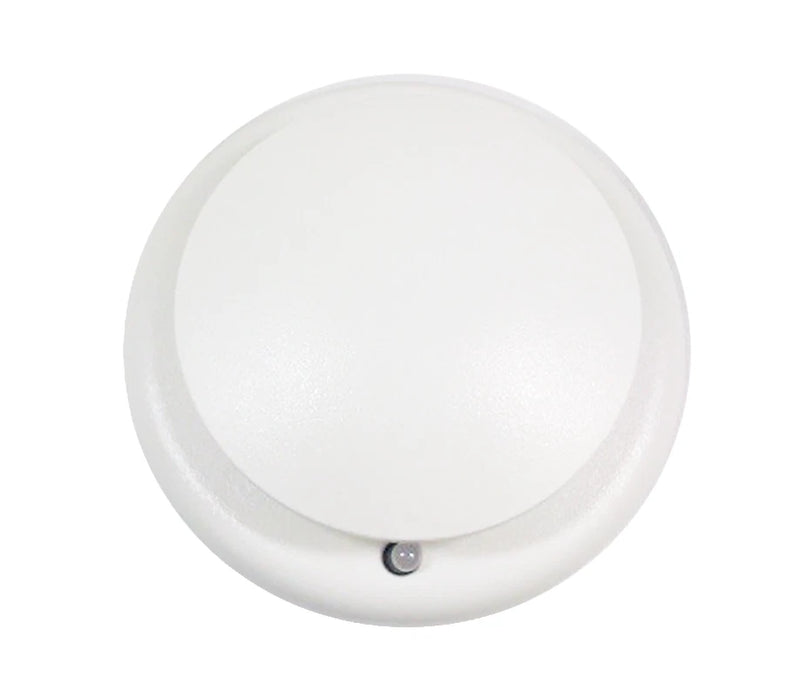

The Kidde Vigilant V-PS is an analog addressable photoelectric smoke detector engineered for reliable fire detection in modern building environments. Using an optical sensing chamber, it provides early warning of smoldering fires while minimizing nuisance alarms. Compact and service-friendly, the V-PS integrates seamlessly into Vigilant intelligent fire alarm systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde Vigilant |
| Category | Fire Safety |
| Part Number | V-PS |
| Subcategory | Smoke Detector |
| Detector Type | Analog Addressable Photoelectric |
| Communication Line Voltage | 20 Vp-p max |
| Current Consumption | 45 µA normal / 45 µA alarm |
| Smoke Sensitivity (UL) | 0.67 – 3.66 %/ft obscuration |
| Smoke Sensitivity (ULC) | 0.74 – 3.70 %/ft obscuration |
| Environmental Compensation | Automatic |
| LED Indicators | Green (normal), Red (alarm) |
| Compatible Bases | B4U, B4U-LP (standard); RB4U (relay); IB4U (isolator); SB4U, SB4U-LF (audible) |
| Distance from Ceiling (wall mount) | Max. 12 in (305 mm) |
| Operating Temp | 32°F to 120°F (0°C to 49°C) |
| Storage Temp | -4°F to 140°F (-20°C to 60°C) |
| Humidity Range | 0–93% RH, non-condensing |
| Dimensions | Standard low-profile round housing (approx. 4 in diameter) |
| Construction | ABS plastic |
| Compliance | UL 268, CAN/ULC-S529, NFPA 72, CAN/ULC-S524, CAN/ULC-S537 |
| FCC/IC Compliance | FCC Part 15, ICES-003 Class A |
| Weight | ~0.30 lbs |
Information About V-PS
The V-PS is part of the Vigilant line of intelligent addressable detectors, designed for compatibility with standard, relay, isolator, and audible bases. It continuously monitors its sensitivity and provides dirty-sensor warnings when servicing is required. Equipped with electronic addressing and automatic environmental compensation, the detector maintains stable performance even in HVAC-influenced spaces. Its low-profile design, twist-and-lock mounting, and field-replaceable optical chamber simplify installation and maintenance while ensuring dependable operation under ISO 9001 quality standards.
Key Features:
- Photoelectric Sensing: Detects slow, smoldering fires with high sensitivity.
- Electronic Addressing: Eliminates dip switches; addresses assigned via control panel or laptop.
- Automatic Environmental Compensation: Maintains calibration despite dust, humidity, or aging.
- Dual-Color LED Status: Green flash for normal, red flash for alarm conditions.
- Dirty Sensor Warning: Notifies when maintenance is needed without disabling the detector.
- Compatible Bases: Works with standard, relay, isolator, and audible models.
- Low-Profile Design: Discreet ceiling mounting with tamper-resistant features.
- Field Serviceable: Optical chamber can be removed for cleaning or replaced in the field.
The V-PS provides the stability and reliability required for intelligent fire detection in commercial and institutional applications.
