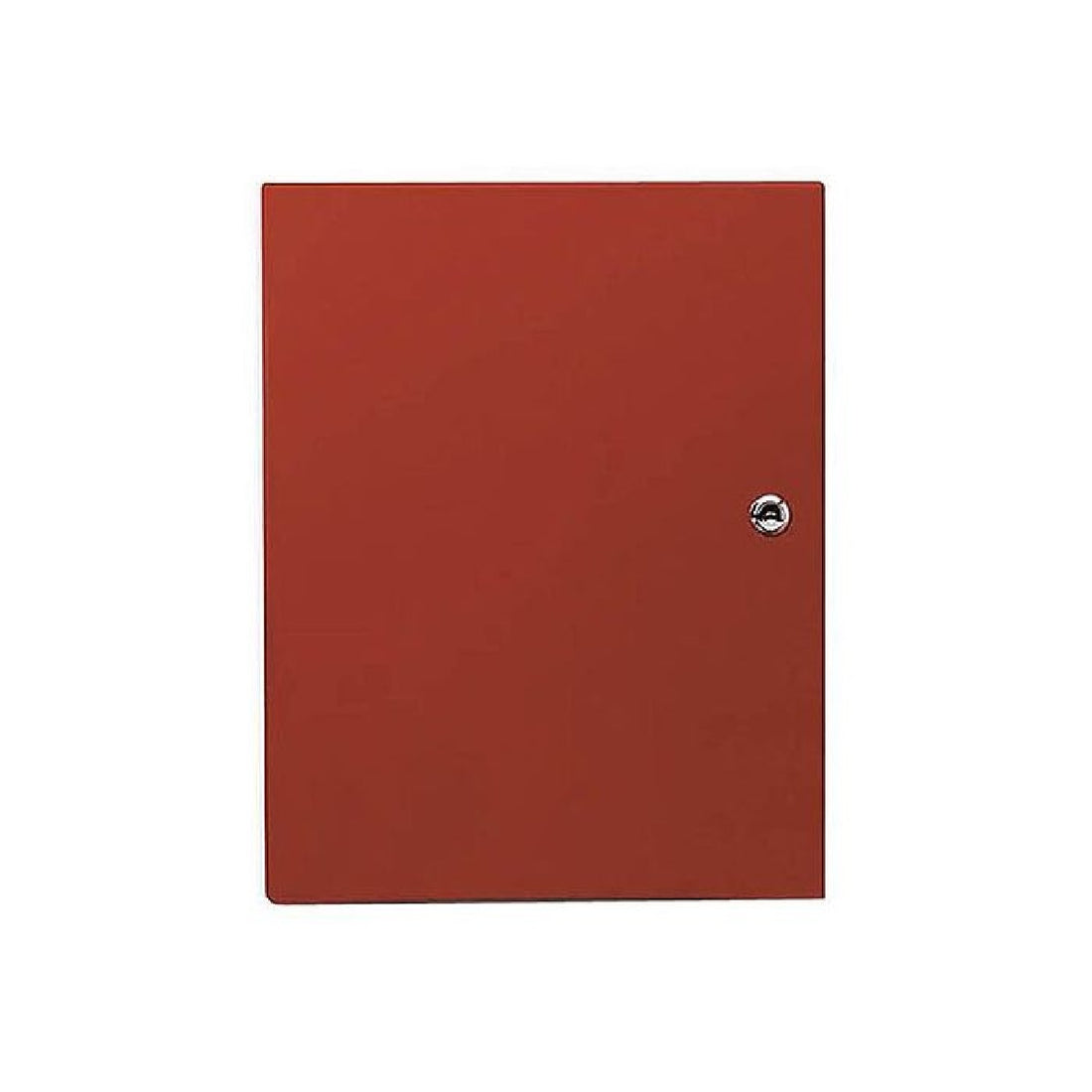

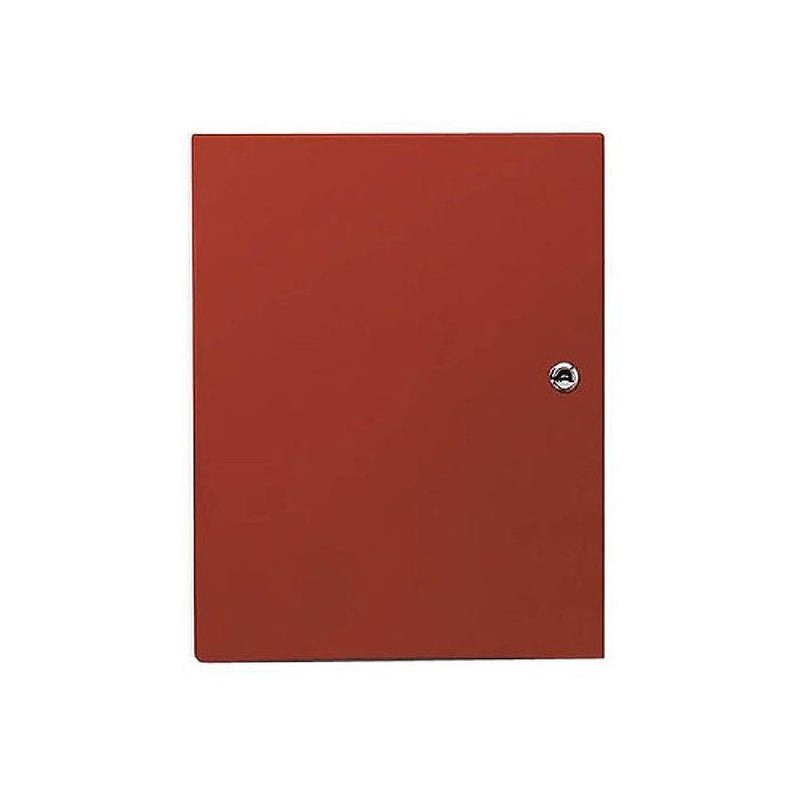

V128FBP-9 | Honeywell Ademco VISTA® 12V Commercial Fire and Partitioned Burglary Control Panel
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: V128FBP-9
Description
The Honeywell Ademco V128FBP-9 is a 12V commercial-grade fire and burglary control panel engineered to provide powerful, flexible, and reliable protection for complex security environments. Designed to manage up to eight independent partitions and 128 zones, it integrates seamlessly with wired, wireless, and addressable devices for fully customized system configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell Ademco |
| Category | Fire and Security Control Systems |
| Part Number | V128FBP-9 |
| Subcategory | Fire/Burglary Control Panels |
| Model Voltage | 12V DC |
| Type | Commercial Fire and Partitioned Burglary Panel |
| Zones Supported | 8 standard hardwired; expandable to 120 V-Plex addressable or 128 wireless zones |
| Partitions | Supports up to 8 independently controlled partitions |
| User Codes | Supports 150 user codes and 250 access card holders |
| Access Control | Supports VISTAKEY® addressable access control (1–8 doors) |
| Communication | Upload/download via Ethernet, Internet, or GSM |
| Event Log Capacity | Stores up to 512 system events |
| Smoke Detector Support | Four-wire smoke reset (J2 trigger); automatic sensitivity maintenance |
| CO Detection | Carbon monoxide (CO) zone compatible |
| Notification Circuits | Two on-board bell circuits, 2.3A @ 12V each |
| Keypad Support | Supports 6160CR-2 multi-LED fire keypad |
| Protocol Compatibility | Supports commercial wireless fire and burglary devices |
| Compliance | UL 864 9th Edition listed |
| Enclosure Finish | Steel cabinet |
| Weight | 20.14 lbs |
Information About V128FBP-9
The Honeywell V128FBP-9 Vista® control panel delivers comprehensive protection for facilities requiring both fire detection and intrusion prevention under one integrated system. Engineered for scalability, it supports up to eight distinct partitions, allowing independent monitoring and control of separate areas within a property. With compatibility for both wired and wireless devices, VISTA 128FBP-9 ensures flexible deployment options while maintaining rigorous UL 864 9th Edition fire safety standards. Its robust communication options—including Ethernet, GSM, and Internet connectivity—enable reliable reporting and system supervision, making it suitable for commercial buildings, institutions, and multi-zone facilities.
Key Features:
- Dual-function system: Combines commercial fire detection and burglary protection in one powerful control panel.
- Scalable architecture: Supports eight independent partitions and up to 128 wired or wireless zones for flexible system design.
- Advanced user management: Accommodates 150 user codes and up to 250 access card holders through integrated VISTAKEY® access control.
- Reliable notification: Features two on-board bell circuits providing 2.3A @ 12V for dependable alarm signaling.
- Enhanced safety features: Includes CO zone support and automatic smoke detector sensitivity testing for continuous safety assurance.
- Flexible connectivity: Offers Ethernet, Internet, and GSM communication for reporting and remote management.
- Comprehensive event logging: Retains up to 512 historical events for diagnostics and compliance tracking.
- Wireless integration: Compatible with commercial-grade wireless fire and burglary peripherals.
- UL compliance: Listed to UL 864 9th Edition for fire systems, ensuring adherence to commercial safety codes.
- Dynamic signaling support: Works with AlarmNet communicators for secure, redundant communication paths.
The V128FBP-9 delivers the reliability and precision required for integrated fire and security management across commercial and institutional facilities.
