V128FBPPCB-9 | Honeywell VISTA-128FBP Commercial Fire & Burglary Control Board
- Regular price
- $712.00
- Sale price
- $712.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: V128FBPPCB-9
Description

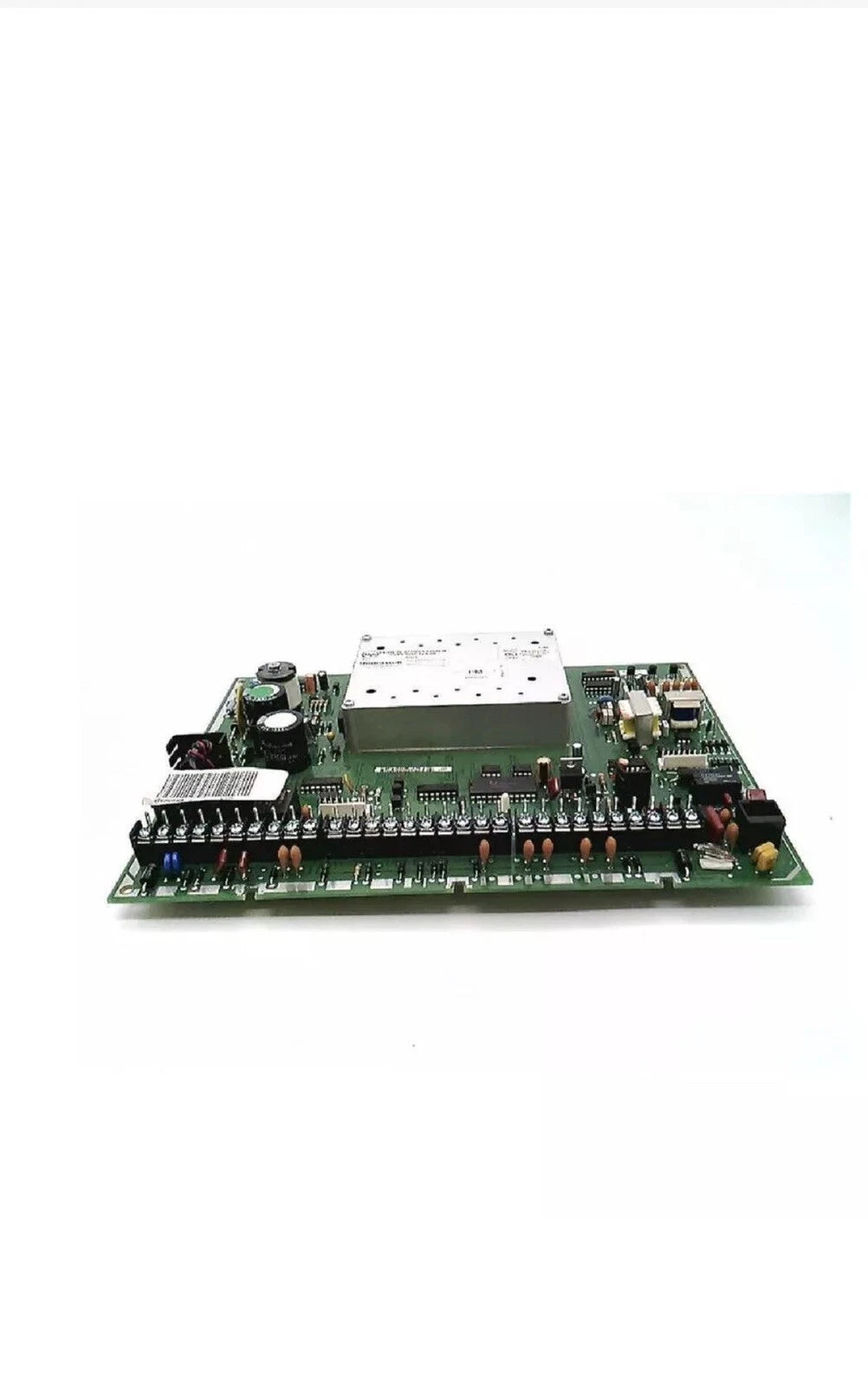

The Honeywell V128FBPPCB-9 is the main control board (PCB only) for the VISTA-128FBP commercial fire & burglary panel, enabling multi-zone intrusion and fire protection. This board supports up to eight partitions, 128 zones (via hardwired, wireless or V-Plex addressable) and integrates access control, CCTV, and communication features. It is typically used as a replacement or refurbishment component in VISTA-128FBP alarm systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell / Resideo |
| Category | PLCs / Machine Control |
| Part Number | V128FBPPCB-9 |
| Subcategory | PC Board / Control Board |
| System Type | Fire & Burglary Control Panel Core |
| Hardwired Zones | 8 style B zones (supervised) |
| Addressable / V-Plex Points | Up to 120 addressable points |
| Wireless Zones | Up to 128 wireless zones |
| Partitions Supported | 8 |
| Notification Circuits | Two NAC outputs (2.3 A @ 12 V or 3.4 A @ 24 V) |
| Access Control Doors | Up to 8 via VISTAKEY |
| Event Log Capacity | 512 events |
| User Codes | Up to 150 user codes |
| Cardholders | Up to 250 access card holders |
| Communication Options | Telephone dialer, GSM, IP, AlarmNet, dynamic signaling |
| Quiescent Current | Approx. 300–350 mA |
| Power Supply | 18 VAC @ 72 VA |
| Backup Battery | 12 V lead-acid (12 Ah min to 34.4 Ah max) |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | –10 °C to 70 °C |
| Humidity | Up to 85% RH non-condensing |
| Cabinet Size (typical) | 18 in × 14.5 in × 4.3 in |
| Listings & Approvals | UL864, UL609, UL985, UL611/1610, UL365, NFPA72, MEA, California fire marshal |
| Weight | 1.20 lbs |
Information About V128FBPPCB-9
The V128FBPPCB-9 is the printed circuit board core of the VISTA-128FBP control platform (12 V model). It implements the logic, supervision, zone scanning, notification outputs, and communication interfaces of the control panel. Designed to be mounted in an attack-resistant enclosure, it supports both fire and burglary functionality in a combined system. The board is fully compatible with V-Plex addressable modules and wireless expansions, and works with AlarmNet communicators for remote monitoring.
Key Features:
- Eight Hardwired Zones (Standard): Comes with eight style B zones, EOL supervised for both fire and burglary use.
- Expandable to 128 Points: Supports up to 128 total zones via V-Plex addressable or wireless devices.
- Partitioned Control (8 Partitions): Enables independent control of up to 8 areas within a facility.
- Access Control Integration: Supports VISTAKEY® modules for 1 to 8 doors and cardholder management.
- On-Board Notification Circuits: Two NAC (bell) circuits provide up to 2.3 A at 12 V (or 3.4 A at 24 V) for alarms and strobes.
- Event Log Memory: Stores up to 512 events, including alarms, troubles, and user actions.
- False Alarm Reduction Logic: Implements features like cross zoning, exit error, recent close report, and exit delay reset.
- Communication Flexibility: Supports phone line (dialer), GSM, IP, AlarmNet and dynamic signaling.
- UL / NFPA Listing Compliance: Listed to UL864 (9th Edition), UL609, and multiple burglary/fire standards.
The V128FBPPCB-9 delivers the control, flexibility, and safety features required for commercial fire and burglary applications.
