V32FBPT | Honeywell VISTA-32FBPT Fire & Burglary Alarm Control Panel, 32 Zones, 2 Partitions
- Regular price
- $659.00
- Sale price
- $659.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: V32FBPT
Description

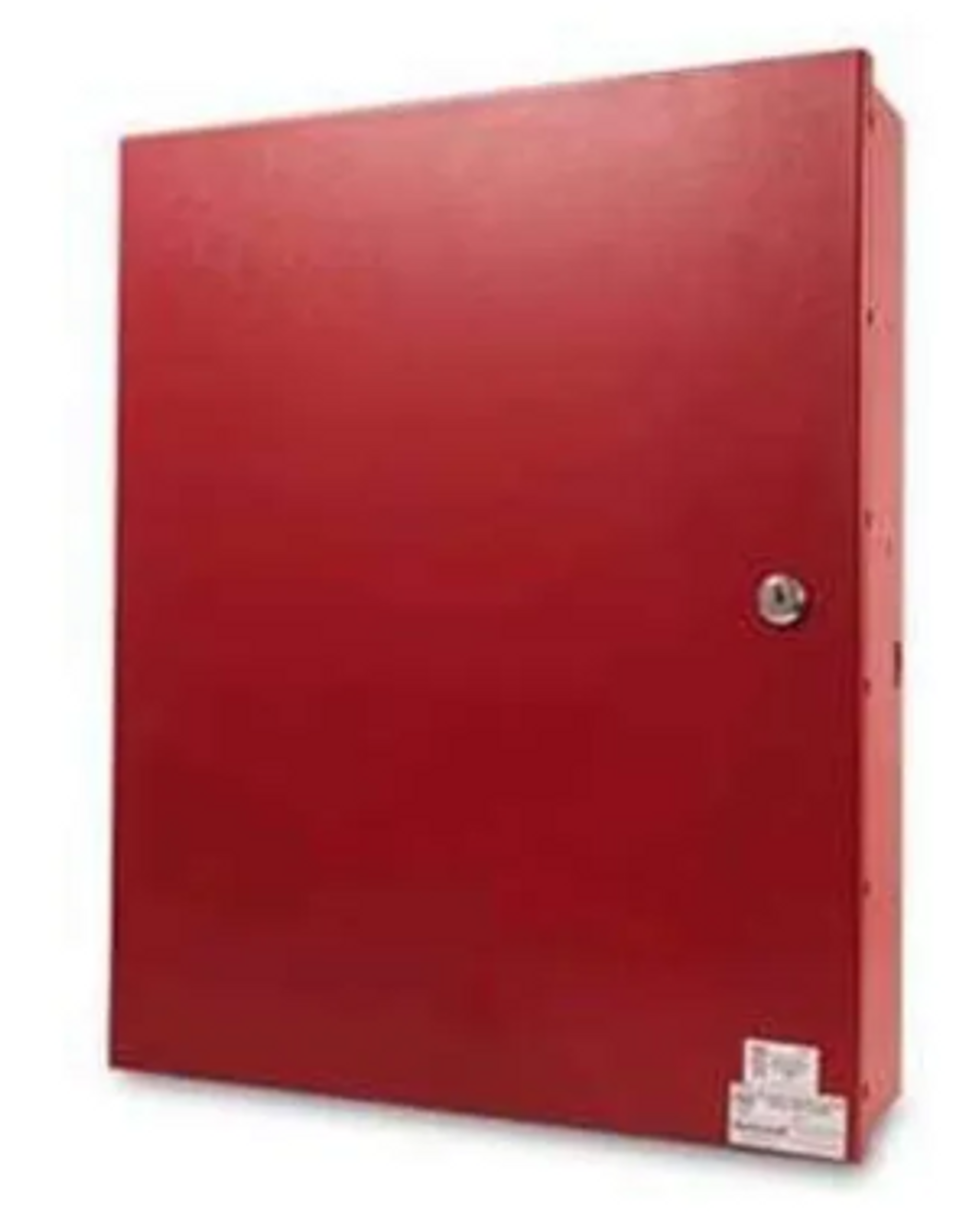

The Honeywell V32FBPT is a VISTA-series commercial fire and burglary alarm control panel with external transformer, designed for partitioned security and life-safety systems. It supports up to 32 zones using hardwired, wireless, or V-Plex® addressable technologies and can operate across two independently controlled partitions. This unit is ideal for integrated security applications in offices, schools, churches, and light commercial buildings.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire & Security Controls |
| Part Number | V32FBPT |
| Subcategory | Alarm Control Panels |
| Series | VISTA |
| Model | VISTA-32FBPT |
| Input Zones (Standard) | 8 Hardwired |
| Max Zones Supported | 32 (Hardwired, Wireless, V-Plex Addressable) |
| Partitions | 2 Independent + Common/Master |
| Wireless Zone Support | Up to 32 zones |
| Access Control | Supports VISTAKEY® (1–8 doors, up to 250 cardholders) |
| User Codes | Up to 75 |
| Event Log Capacity | 512 |
| Communication | GSM / AlarmNet compatible |
| Output Circuits | 2 onboard NACs, total 2.3A @ 12V |
| Control Type | Addressable |
| Installation | Commercial wall mount |
| Compatible Devices | Keypads, relays, wireless sensors, RF receivers |
| UPC | 886618160790 |
| Weight | 2.60 lbs |
Information About V32FBPT
The V32FBPT is part of Honeywell’s VISTA-32FBPT line and delivers a versatile control platform supporting both fire and intrusion detection. It includes 8 onboard hardwired zones, expandable to 32 with V-Plex or wireless devices, and allows for full partitioning with a common lobby or master partition. Compatible with commercial fire sensors, burglary devices, and access control modules like VISTAKEY®, this panel supports up to 75 user codes and 512 event logs. With onboard NAC outputs and AlarmNet® communication support, the V32FBPT is ideal for robust installations needing integration, flexibility, and remote services.
Key Features:
- Dual Function System: Combines fire and burglary control in a single panel.
- Expandable Zone Support: Handles up to 32 zones using hardwired, wireless, or addressable inputs.
- Partitioned Security: Supports two independently controlled areas with common/master partitions.
- Access Control Ready: Integrates with VISTAKEY® for up to 250 cardholders and 8 access-controlled doors.
- Powerful Event Storage: Logs up to 512 system events.
- Integrated NAC Outputs: Two onboard circuits delivering a combined 2.3A @ 12V.
- Remote Connectivity: Compatible with AlarmNet® services for monitoring and remote control.
- Commercial Application Focus: Ideal for offices, churches, banks, schools, and industrial sites.
The V32FBPT delivers the security, flexibility, and integration needed for modern commercial fire and burglary alarm installations.
