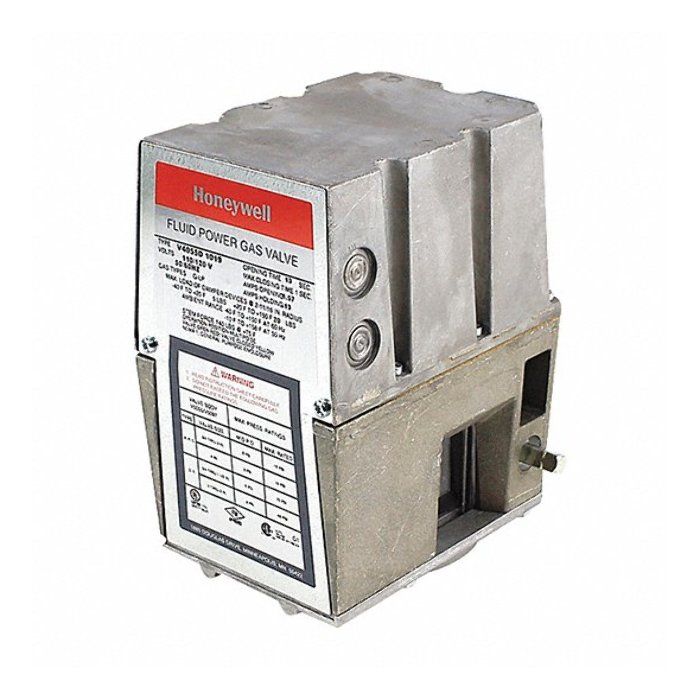

V4055A-1064 | Honeywell On-Off Gas Valve Actuator 120 VAC
- Regular price
- $844.00
- Sale price
- $844.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: V4055A-1064
Description
The Honeywell V4055A-1064 is an on-off actuator for fluid power gas valves, providing precise valve positioning in combustion and heating applications. Operating at 120 VAC with a nominal opening time of 26 seconds at 60 Hz, it ensures safe and reliable performance with optional damper shaft integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Actuators |
| Part Number | V4055A-1064 |
| Subcategory | Gas Valve Actuators |
| Function | On-Off Actuator for Fluid Power Gas Valves |
| Voltage and Frequency | 120 VAC, 60 Hz (other models: 100–240 VAC, 50/60 Hz) |
| Nominal Opening Time | 26 sec at 60 Hz; 32 sec at 50 Hz |
| Fast-Opening Option | 13 sec at 60 Hz; 16 sec at 50 Hz |
| Mounting | Direct to valve bonnet with setscrews, multiposition |
| Damper Shaft | 3/8 in. (9.5 mm), with or without spring return |
| Maximum Shaft Rotation | 52 angular degrees |
| Auxiliary Switch Rating | 1/2 hpa |
| Proof-of-Closure Switch | Available |
| Ambient Operating Temperature | -40 °F to 150 °F (-40 °C to 66 °C) |
| Enclosure | NEMA 4 weatherproof model available |
| Application | Industrial burner and combustion systems |
| Weight | 12.76 lbs |
Information About V4055A-1064
The V4055A-1064 is part of Honeywell’s V4055 actuator series designed for use in industrial heating and combustion systems, featuring direct bonnet mounting with multiposition flexibility for installation in various orientations. It operates on 120 VAC at 60 Hz, with additional models available for 100–240 VAC, 50/60 Hz applications, and supports both standard and fast-opening configurations to match system requirements. The actuator accommodates damper shaft control with up to 52° rotation and can be paired with auxiliary or proof-of-closure switches for added safety monitoring. Its rugged build allows operation across a wide temperature range and compatibility with NEMA 4 weatherproof enclosures, making it suitable for demanding industrial environments.
Key Features:
-
On-Off Actuation: Provides accurate open/close control of fluid power gas valves in combustion systems.
-
Nominal Opening Time: Standard 26 seconds at 60 Hz or 32 seconds at 50 Hz, with fast-opening options available.
-
Voltage Compatibility: Supports 120 VAC, 60 Hz, with models covering 100–240 VAC, 50/60 Hz.
-
Mounting Flexibility: Attaches directly to valve bonnet with multiposition capability for versatile installation.
-
Damper Shaft Operation: Allows up to 52° rotation, available with or without spring return.
-
Harsh Environment Ready: NEMA 4 weatherproof enclosure models ensure durability in tough conditions.
-
Safety Switch Integration: Auxiliary and proof-of-closure switch options enhance system safety.
-
Wide Temperature Range: Reliable performance from -40 °F to 150 °F (-40 °C to 66 °C).
The V4055A-1064 delivers the reliability and precision required for secure gas valve control in industrial heating and combustion systems.
