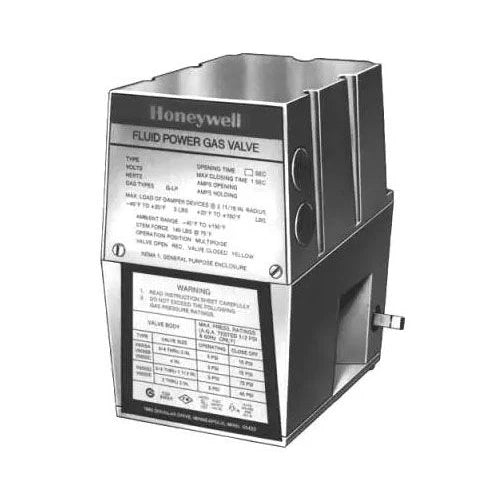

V4055A1064 | Honeywell ON-OFF Gas Valve Actuator for V5055/V5097 5 psi 120 VAC 26 sec Opening
- Regular price
- $1,072.00
- Sale price
- $1,072.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: V4055A1064
Description
The Honeywell V4055A1064 is a low-pressure ON-OFF fluid power gas valve actuator designed for use with V5055 and V5097A/B gas valve bodies in commercial and industrial burner systems. Operating on 120 VAC at 60 Hz, it provides smooth, controlled valve operation with a 26-second opening time and a one-second maximum closing time. Equipped with a visible position indicator and a damper shaft, it ensures reliable final safety shutoff performance under demanding combustion conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Flame Safety Products |
| Part Number | V4055A1064 |
| Subcategory | Valve Actuator |
| Product Type | ON-OFF Fluid Power Gas Valve Actuator |
| Actuator Type | On/Off |
| Compatible Valve Bodies | V5055A/B, V5097A/B |
| Electrical Rating | 120 VAC, 60 Hz |
| Power Consumption | Approx. 10 W (typical) |
| Maximum Operating Pressure | 5 psi (34 kPa) |
| Opening Time | 26 seconds at 60 Hz |
| Closing Time | ≤ 1 second |
| Proof of Closure Switch | Not included |
| Auxiliary Switch | None |
| Damper Shaft | Yes (integrated) |
| Indicator | Red (open) / Yellow (closed) position indicator |
| Mounting Orientation | Any position directly to valve bonnet (3 set screws) |
| Temperature Range | –10 °F to +158 °F (–23 °C to +70 °C) |
| Operating Humidity | Up to 90 % RH (non-condensing) |
| Pressure Service | Low-pressure gas (≤ 5 psi) |
| Approvals | Factory Mutual approved; Swiss RE (formerly IRI) accepted |
| Housing Material | Heavy-duty die-cast aluminum |
| Dimensions (H × W × D) | 8.6 in × 5.3 in × 6.5 in (approx.) |
| Weight | 12.76 lb (5.79 kg) |
Information About V4055A1064
The V4055A1064 is part of Honeywell’s V4055 series of gas valve actuators, engineered for use with V5055 and V5097 safety shutoff valves to control gas flow to burners. This model supports low-pressure service up to 5 psi (34 kPa) and mounts directly to compatible valve bodies via three set screws for fast, secure installation. The actuator features a built-in visual position indicator showing red when open and yellow when closed, improving visibility during inspection and maintenance. Its rapid closing and smooth opening profile make it ideal for systems requiring controlled ignition and reliable safety shutoff.
Key Features:
- Compatible with V5055/V5097 Valves: Designed to mount directly to Honeywell valve bodies using three secure set screws.
- ON-OFF Control Operation: Provides binary open/close actuation for safety shutoff or main fuel control.
- Smooth Light-Off Performance: 26-second opening time ensures gradual gas flow during ignition, reducing flame instability.
- Fast Safety Closure: Closes in one second or less to ensure rapid fuel shutoff during fault or power loss.
- Integrated Position Indicator: Red/Yellow visual flag continuously displays valve position for at-a-glance status verification.
- Built-In Damper Shaft: Allows control of both the gas valve and an attached air damper for linked modulation.
- Wide Operating Range: Operates reliably from –10 °F to +158 °F (–23 °C to +70 °C).
- Low-Pressure Design: Handles up to 5 psi (34 kPa) maximum operating pressure for combustion safety circuits.
- No Auxiliary Switches: Simplified design with no internal proof-of-closure or auxiliary contacts, reducing mechanical complexity.
- Safety Certifications: Factory Mutual-approved and Swiss RE-accepted when installed with compatible valve bodies.
The V4055A1064 delivers dependable ON-OFF actuation, smooth ignition sequencing, and robust safety performance for industrial combustion systems.
