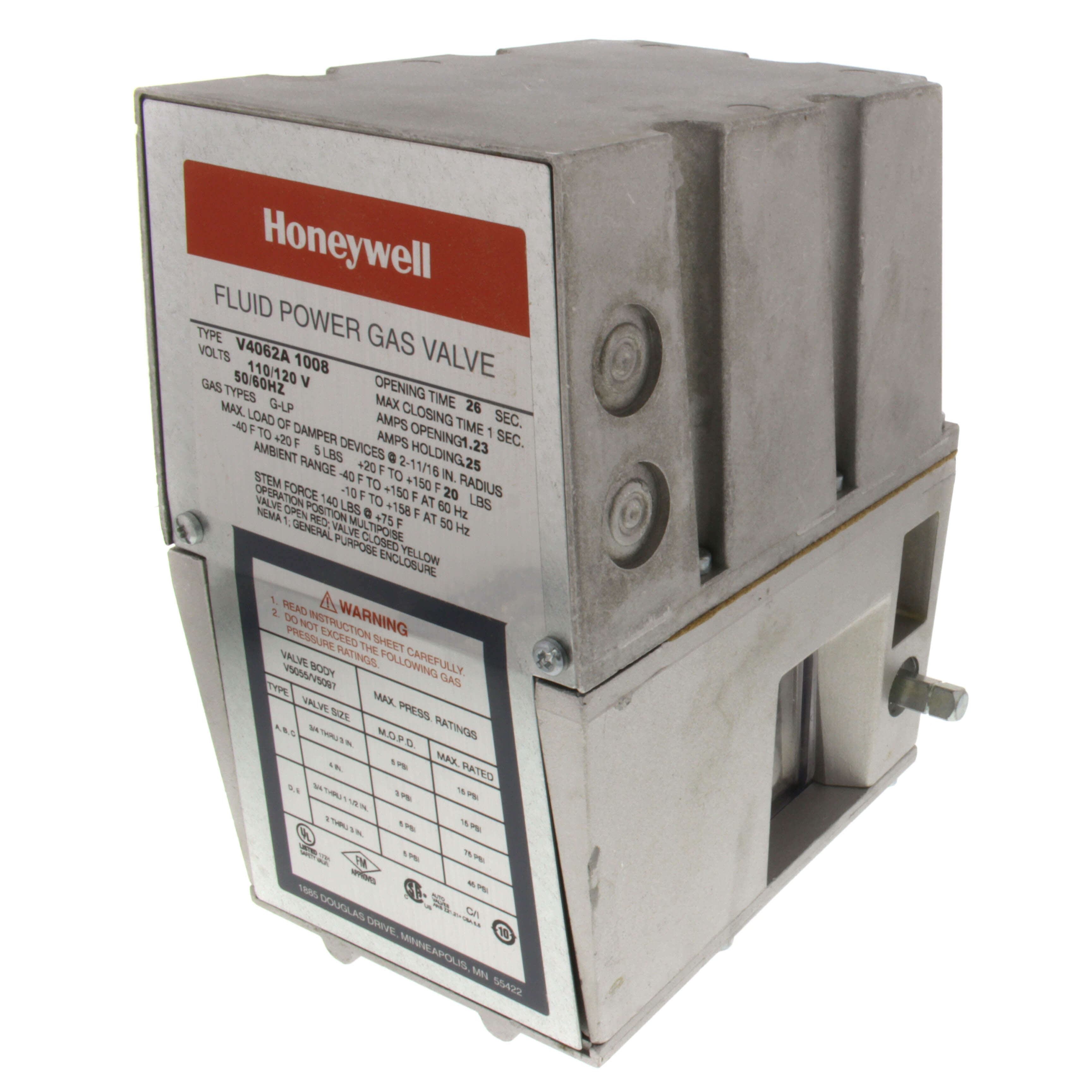

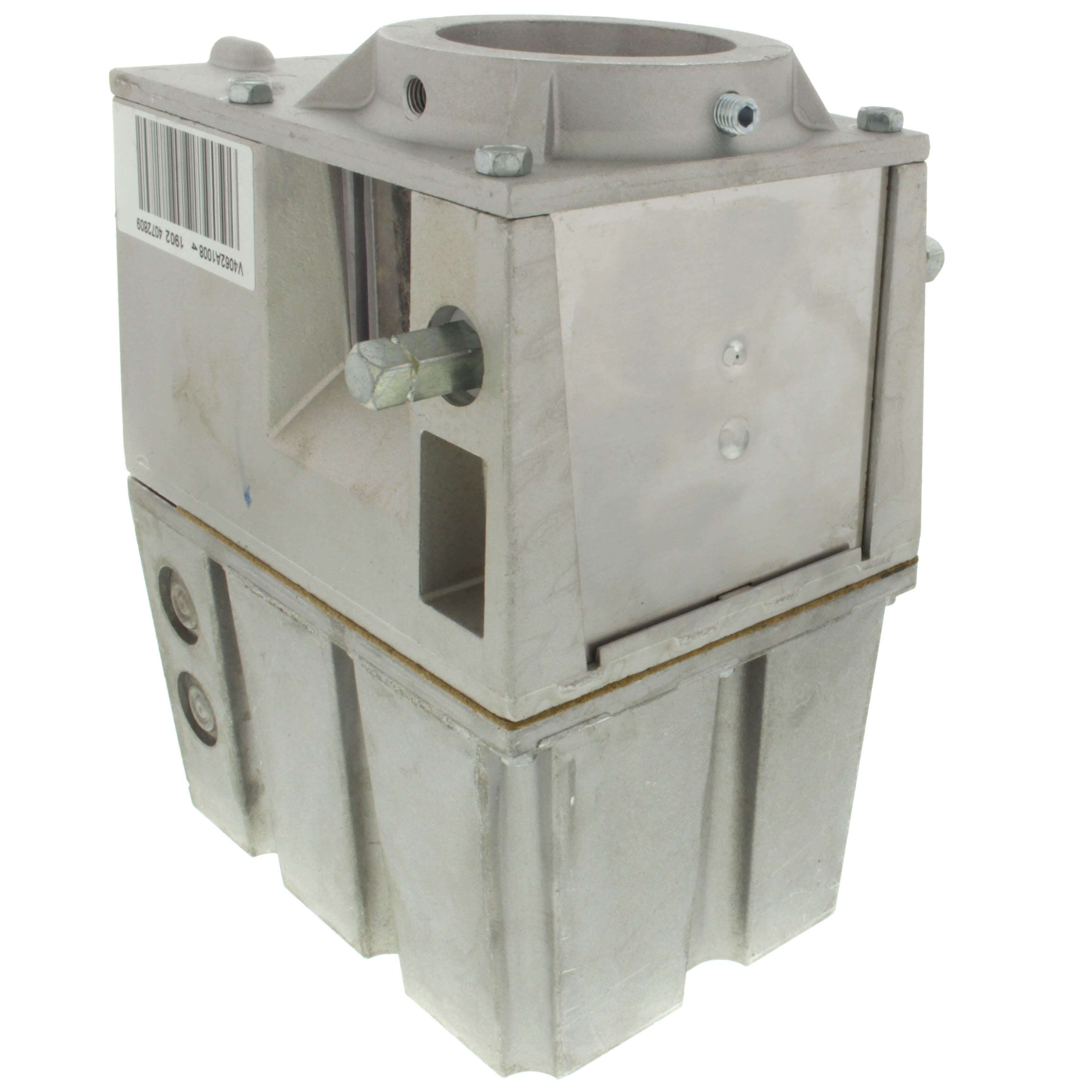

V4062A1008 | Honeywell Low Pressure Fluid Power Actuator 120 VAC, 26s Opening
- Regular price
- $1,485.00
- Sale price
- $1,485.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: V4062A1008
Description
The Honeywell V4062A1008 is a low-pressure fluid power actuator designed to operate with V5055 or V5097 gas valves for final safety shutoff service in combustion systems. It features Hi-Lo-Off control, 26-second opening time, one-second safety closing, and a visual position indicator, operating on 120 VAC at 50/60 Hz for reliable gas flow management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Combustion Controls |
| Part Number | V4062A1008 |
| Subcategory | Fluid Power Actuators |
| Function | Low-pressure actuator for gas valve operation |
| Compatible Valves | V5055 and V5097 Series gas valves |
| Power Supply | 120 VAC, 50/60 Hz |
| Opening Time | 26 seconds (nominal) |
| Closing Time | ≤ 1 second |
| Control Type | Hi-Lo-Off operation |
| Maximum Operating Pressure | 5 psi (34.5 kPa) |
| Valve Position Indication | Red indicator (open), yellow indicator (closed) |
| Auxiliary Switch | None (no internal auxiliary switch) |
| Mounting | Direct to valve bonnet with three setscrews |
| Shaft Type | Includes damper shaft |
| Housing Material | Heavy-duty cast aluminum |
| Ambient Temperature Range | -40°F to +150°F (-40°C to +66°C) |
| Duty Cycle | Intermittent or continuous as per system demand |
| Safety Function | Final safety shutoff for gas valve control |
| Electrical Connection | Conduit hub connection |
| Compliance | UL and CSA approved for combustion safety applications |
| Application | Industrial and commercial burner systems |
| Operation Indicator | Continuous visual valve position display |
| Enclosure | Weather-resistant, industrial-grade |
| Weight | 14.00 lbs (approx. 6.35 kg) |
Information About V4062A1008
The Honeywell V4062A1008 is a robust, low-pressure fluid power actuator engineered to control V5055 or V5097 gas valves in burner management and combustion safety systems. It provides precise Hi-Lo-Off modulation and ensures a secure one-second maximum closing time for safety-critical applications. The actuator’s 26-second controlled opening ensures stable valve positioning and consistent gas flow, while the integrated visual indicator displays open and closed positions through red and yellow markers. Designed to mount directly onto the valve bonnet using three setscrews, the V4062A1008 simplifies installation without additional brackets or linkages. With a 5 psi maximum operating pressure, wide temperature range, and solid-state reliability, it is a trusted choice for low-pressure combustion control environments requiring accurate valve actuation and dependable safety shutdown performance.
Key Features:
- Hi-Lo-Off Operation: Provides three-position control for efficient burner modulation and gas flow management.
- Fast Safety Shutoff: Achieves complete valve closure in one second or less for critical combustion safety applications.
- Controlled Opening Rate: 26-second opening time ensures smooth modulation and stable system operation.
- Visual Position Indicator: Red (open) and yellow (closed) markers allow clear visual verification of valve status at all times.
- Low-Pressure Capability: Designed for systems operating up to 5 psi, suitable for industrial and commercial burner installations.
- Direct Valve Mounting: Attaches securely to V5055 or V5097 gas valve bonnets with three setscrews—no external linkage required.
- Durable Construction: Rugged cast housing built to withstand demanding environmental and operational conditions.
- Wide Temperature Range: Operates reliably from -40°F to +150°F, adaptable to various industrial climates.
- Simple Electrical Integration: Runs on standard 120 VAC power, compatible with most control panel configurations.
- Proven Honeywell Reliability: Engineered for long service life, repeatable performance, and compliance with industrial safety standards.
The V4062A1008 delivers the reliability and precision required for safe gas shutoff and controlled actuation in Honeywell combustion and burner management systems.
