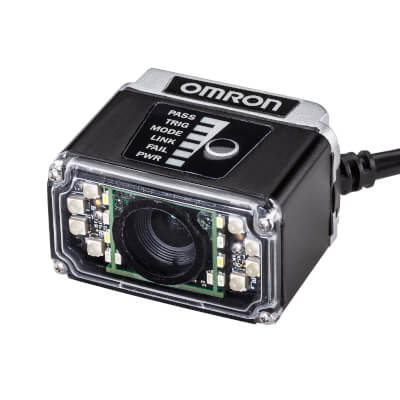

V420-F000M12M-SRX | Omron V420 1.2MP Autofocus Code Reader with Red LED and X-Mode IP54
- Regular price
- $2,521.00
- Sale price
- $2,521.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: V420-F000M12M-SRX
Description
The Omron V420-F000M12M-SRX Code Reader is a 1.2 MP monochrome industrial barcode reader featuring autofocus optics with a working distance of 50–300 mm and integrated red LED illumination. Equipped with X-Mode decoding technology, it provides high-speed reading of 1D, 2D, and DPM (Direct Part Mark) codes over Ethernet, RS-232, and USB communication interfaces.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | V420-F000M12M-SRX |
| Subcategory | Code Readers |
| Series | V420 |
| Type | Industrial Fixed-Mount Code Reader |
| Sensor Type | 1.2 MP SXGA Monochrome (1280 × 960 pixels) |
| Optics | Autofocus, 50–300 mm range |
| Field of View (Width) | 34–183 mm |
| Decoder Type | X-Mode (Advanced 1D, 2D, and DPM decoding) |
| Frame Rate | 42 fps |
| Illumination | Integrated Red LED |
| Shutter Type | Global shutter |
| Focus Method | Electronic autofocus |
| Communication Interfaces | Ethernet TCP/IP, RS-232C, USB |
| I/O Ports | 3 inputs / 3 outputs (series typical) |
| Mounting Type | Fixed mount |
| Supply Voltage | 5 VDC |
| Power Consumption | <2 W typical |
| Ingress Protection | IP54 (dust- and splash-resistant) |
| Housing Material | Industrial aluminum alloy |
| Dimensions (H × W × D) | 25.4 mm × 44.5 mm × 38.1 mm |
| Weight | 120 g |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 35–85% RH (non-condensing) |
| Mounting Accessories | M12 connector, mounting brackets (optional) |
| Compliance | CE, RoHS |
| Country of Origin | Japan |
| Application | Industrial traceability, product verification, and automated inspection |
Information About V420-F000M12M-SRX
The V420-F000M12M-SRX is part of Omron’s V420 Series of compact industrial code readers engineered for superior flexibility and precision in traceability and inspection systems. This model uses an advanced 1.2-megapixel SXGA monochrome sensor combined with autofocus optics, enabling reliable reading of small or complex codes at varying distances. With X-Mode decoding, it can handle low-contrast, damaged, or directly marked codes, making it ideal for production and assembly lines. Its IP54-rated housing protects against dust and splashes, while multiple communication options—Ethernet TCP/IP, RS-232, and USB—ensure seamless integration into a wide range of automation environments.
Key Features:
- High-Resolution Sensor: 1.2 MP SXGA monochrome imager captures detailed barcode data for reliable decoding.
- Autofocus Optics: Adjustable focus range from 50–300 mm supports variable-distance reading without manual intervention.
- X-Mode Decoding: Reads 1D, 2D, and DPM codes, even on challenging or reflective surfaces.
- High-Speed Operation: Captures and decodes up to 42 frames per second for rapid scanning applications.
- Integrated Red Illumination: Built-in red LED ensures optimal lighting and contrast across materials.
- Multiple Communication Interfaces: Supports Ethernet TCP/IP, RS-232C, and USB connectivity.
- Industrial Design: IP54-rated housing for protection against dust and light moisture exposure.
- Compact and Lightweight: Small form factor allows for easy mounting in space-limited installations.
The V420-F000M12M-SRX delivers the reliability and precision required for traceability, quality inspection, and automated product identification systems.
Description
The Omron V420-F000M12M-SRX Code Reader is a 1.2 MP monochrome industrial barcode reader featuring autofocus optics with a working distance of 50–300 mm and integrated red LED illumination. Equipped with X-Mode decoding technology, it provides high-speed reading of 1D, 2D, and DPM (Direct Part Mark) codes over Ethernet, RS-232, and USB communication interfaces.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | V420-F000M12M-SRX |
| Subcategory | Code Readers |
| Series | V420 |
| Type | Industrial Fixed-Mount Code Reader |
| Sensor Type | 1.2 MP SXGA Monochrome (1280 × 960 pixels) |
| Optics | Autofocus, 50–300 mm range |
| Field of View (Width) | 34–183 mm |
| Decoder Type | X-Mode (Advanced 1D, 2D, and DPM decoding) |
| Frame Rate | 42 fps |
| Illumination | Integrated Red LED |
| Shutter Type | Global shutter |
| Focus Method | Electronic autofocus |
| Communication Interfaces | Ethernet TCP/IP, RS-232C, USB |
| I/O Ports | 3 inputs / 3 outputs (series typical) |
| Mounting Type | Fixed mount |
| Supply Voltage | 5 VDC |
| Power Consumption | <2 W typical |
| Ingress Protection | IP54 (dust- and splash-resistant) |
| Housing Material | Industrial aluminum alloy |
| Dimensions (H × W × D) | 25.4 mm × 44.5 mm × 38.1 mm |
| Weight | 120 g |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 35–85% RH (non-condensing) |
| Mounting Accessories | M12 connector, mounting brackets (optional) |
| Compliance | CE, RoHS |
| Country of Origin | Japan |
| Application | Industrial traceability, product verification, and automated inspection |
Information About V420-F000M12M-SRX
The V420-F000M12M-SRX is part of Omron’s V420 Series of compact industrial code readers engineered for superior flexibility and precision in traceability and inspection systems. This model uses an advanced 1.2-megapixel SXGA monochrome sensor combined with autofocus optics, enabling reliable reading of small or complex codes at varying distances. With X-Mode decoding, it can handle low-contrast, damaged, or directly marked codes, making it ideal for production and assembly lines. Its IP54-rated housing protects against dust and splashes, while multiple communication options—Ethernet TCP/IP, RS-232, and USB—ensure seamless integration into a wide range of automation environments.
Key Features:
- High-Resolution Sensor: 1.2 MP SXGA monochrome imager captures detailed barcode data for reliable decoding.
- Autofocus Optics: Adjustable focus range from 50–300 mm supports variable-distance reading without manual intervention.
- X-Mode Decoding: Reads 1D, 2D, and DPM codes, even on challenging or reflective surfaces.
- High-Speed Operation: Captures and decodes up to 42 frames per second for rapid scanning applications.
- Integrated Red Illumination: Built-in red LED ensures optimal lighting and contrast across materials.
- Multiple Communication Interfaces: Supports Ethernet TCP/IP, RS-232C, and USB connectivity.
- Industrial Design: IP54-rated housing for protection against dust and light moisture exposure.
- Compact and Lightweight: Small form factor allows for easy mounting in space-limited installations.
The V420-F000M12M-SRX delivers the reliability and precision required for traceability, quality inspection, and automated product identification systems.
