V420-F050M12M-NNP | Omron V420 1.2MP High-Density Code Reader 50mm Fixed Focus IP54
- Regular price
- $1,405.00
- Sale price
- $1,405.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: V420-F050M12M-NNP
Description

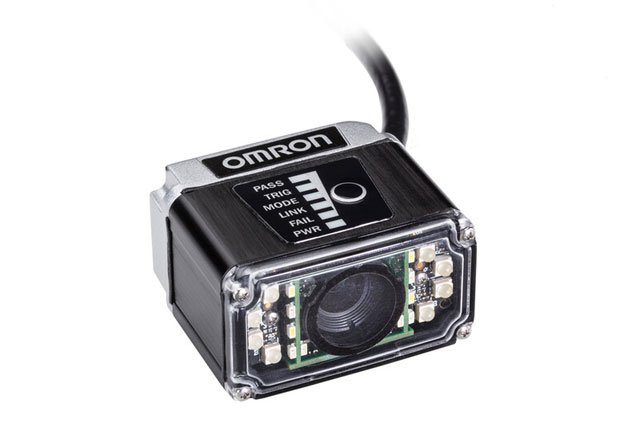

The Omron V420-F050M12M-NNP Code Reader is a fixed-mount industrial barcode scanner featuring a 1.2 MP monochrome SXGA sensor and high-density optics optimized for close-range scanning at 50 mm. Designed for 1D and 2D code decoding, it provides reliable high-speed performance for track-and-trace, quality assurance, and automated identification in manufacturing and logistics applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | V420-F050M12M-NNP |
| Subcategory | Code Readers |
| Series | V420 |
| Type | Fixed-Mount Industrial Code Reader |
| Sensor Type | SXGA, 1.2 MP Monochrome |
| Optics | High Density |
| Focal Distance | 50 mm (fixed focus) |
| Decoding Capability | 1D and 2D barcodes |
| Light Source | None (external illumination required) |
| Reading Range | Optimized for near-field operation |
| Supply Voltage | 5 VDC |
| Power Consumption | < 2 W (typical) |
| I/O Lines | 3 Inputs / 3 Outputs |
| Communication Interfaces | RS-232, USB, Ethernet over USB |
| Mounting Type | Fixed mount |
| Frame Rate / Speed | High-speed decoding performance |
| Enclosure Rating | IP54 (dust- and splash-resistant) |
| Housing Material | Industrial-grade aluminum alloy |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 35–85% RH (non-condensing) |
| Protection Features | Reverse-polarity and ESD protection |
| Connection Type | M12 industrial connector |
| Dimensions | Compact form factor (series typical: ~40 × 30 × 55 mm) |
| Weight | Approx. 120 g |
| Compliance | CE, RoHS |
| Country of Origin | Japan |
| Application | Barcode tracking, part identification, inspection automation |
Information About V420-F050M12M-NNP
The V420-F050M12M-NNP is part of Omron’s V420 Series of compact, high-performance industrial code readers engineered for advanced imaging and decoding capability. It supports both 1D and 2D symbologies, offering fast, accurate code recognition even under low contrast or challenging lighting conditions. Featuring serial RS-232, USB, and Ethernet-over-USB communication options, the device integrates easily into existing automation systems. Its IP54-rated enclosure provides protection against dust and light moisture, while 3 input and 3 output channels support flexible control signaling. With its fixed-focus 50 mm optical configuration, this code reader is ideal for high-density label inspection, part tracking, and in-line product verification.
Key Features:
- High-Resolution Imaging: 1.2 MP SXGA monochrome sensor delivers precise and fast decoding of small or dense barcodes.
- Close-Range Focus: Optimized 50 mm fixed-focus lens for near-field, high-density code reading.
- Multi-Code Compatibility: Decodes both 1D and 2D symbologies for versatile industrial use.
- Flexible Connectivity: Supports RS-232, USB, and Ethernet over USB communication interfaces.
- Industrial Protection: IP54-rated housing provides resistance to dust and splashing liquids.
- Compact Fixed-Mount Design: Enables easy integration into conveyors, production cells, or inspection systems.
- Fast Processing Speed: High-speed decoding engine ensures reliable read rates on moving targets.
- I/O Integration: Includes 3 configurable input and 3 output lines for system control.
The V420-F050M12M-NNP delivers the reliability and precision required for demanding industrial barcode reading and identification applications.
Description
The Omron V420-F050M12M-NNP Code Reader is a fixed-mount industrial barcode scanner featuring a 1.2 MP monochrome SXGA sensor and high-density optics optimized for close-range scanning at 50 mm. Designed for 1D and 2D code decoding, it provides reliable high-speed performance for track-and-trace, quality assurance, and automated identification in manufacturing and logistics applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | V420-F050M12M-NNP |
| Subcategory | Code Readers |
| Series | V420 |
| Type | Fixed-Mount Industrial Code Reader |
| Sensor Type | SXGA, 1.2 MP Monochrome |
| Optics | High Density |
| Focal Distance | 50 mm (fixed focus) |
| Decoding Capability | 1D and 2D barcodes |
| Light Source | None (external illumination required) |
| Reading Range | Optimized for near-field operation |
| Supply Voltage | 5 VDC |
| Power Consumption | < 2 W (typical) |
| I/O Lines | 3 Inputs / 3 Outputs |
| Communication Interfaces | RS-232, USB, Ethernet over USB |
| Mounting Type | Fixed mount |
| Frame Rate / Speed | High-speed decoding performance |
| Enclosure Rating | IP54 (dust- and splash-resistant) |
| Housing Material | Industrial-grade aluminum alloy |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 35–85% RH (non-condensing) |
| Protection Features | Reverse-polarity and ESD protection |
| Connection Type | M12 industrial connector |
| Dimensions | Compact form factor (series typical: ~40 × 30 × 55 mm) |
| Weight | Approx. 120 g |
| Compliance | CE, RoHS |
| Country of Origin | Japan |
| Application | Barcode tracking, part identification, inspection automation |
Information About V420-F050M12M-NNP
The V420-F050M12M-NNP is part of Omron’s V420 Series of compact, high-performance industrial code readers engineered for advanced imaging and decoding capability. It supports both 1D and 2D symbologies, offering fast, accurate code recognition even under low contrast or challenging lighting conditions. Featuring serial RS-232, USB, and Ethernet-over-USB communication options, the device integrates easily into existing automation systems. Its IP54-rated enclosure provides protection against dust and light moisture, while 3 input and 3 output channels support flexible control signaling. With its fixed-focus 50 mm optical configuration, this code reader is ideal for high-density label inspection, part tracking, and in-line product verification.
Key Features:
- High-Resolution Imaging: 1.2 MP SXGA monochrome sensor delivers precise and fast decoding of small or dense barcodes.
- Close-Range Focus: Optimized 50 mm fixed-focus lens for near-field, high-density code reading.
- Multi-Code Compatibility: Decodes both 1D and 2D symbologies for versatile industrial use.
- Flexible Connectivity: Supports RS-232, USB, and Ethernet over USB communication interfaces.
- Industrial Protection: IP54-rated housing provides resistance to dust and splashing liquids.
- Compact Fixed-Mount Design: Enables easy integration into conveyors, production cells, or inspection systems.
- Fast Processing Speed: High-speed decoding engine ensures reliable read rates on moving targets.
- I/O Integration: Includes 3 configurable input and 3 output lines for system control.
The V420-F050M12M-NNP delivers the reliability and precision required for demanding industrial barcode reading and identification applications.
