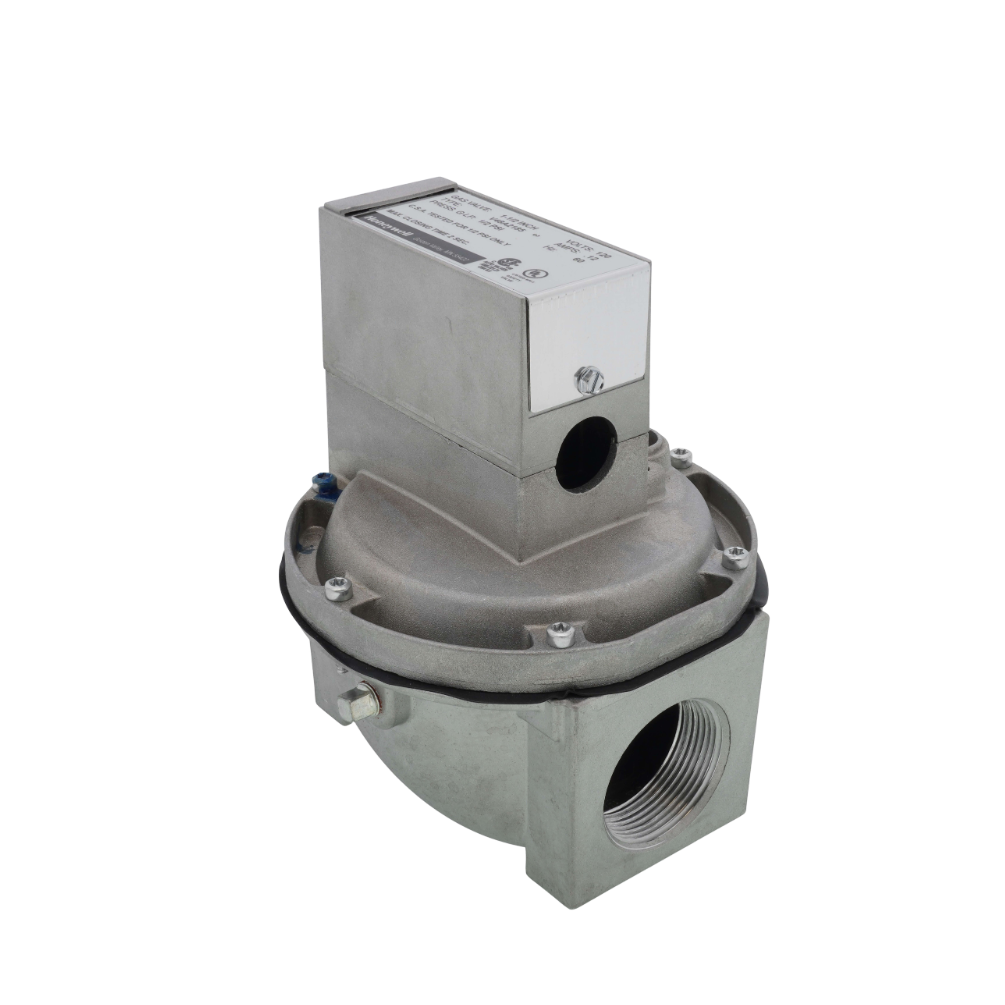

V48A2185 | Honeywell Diaphragm Gas Valve 1-1/2" NPT
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: V48A2185
Description
The Honeywell V48A2185 is a normally closed diaphragm gas valve designed for line-voltage service in industrial and commercial burner systems. Operating at 120V and 60Hz, it features a 1-1/2" NPT pipe connection and provides dependable gas flow control with a maximum pressure rating of 1/2 PSI for natural or propane gas.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Gas Control Valves |
| Part Number | V48A2185 |
| Subcategory | Diaphragm Gas Valve |
| Valve Type | Normally Closed, Electrically Operated |
| Pipe Size | 1-1/2" NPT |
| Fuel Type | Natural Gas, Propane, or Manufactured Gas |
| Voltage | 120 VAC |
| Frequency | 60 Hz |
| Pressure Rating | 1/2 PSI Maximum |
| Flow Capacity (CFH) | 2400 CFH |
| Mounting Orientation | Horizontal |
| Valve Body Material | Cast Aluminum |
| Operation Type | Line Voltage Actuation |
| Closing Time | Maximum 2 Seconds |
| Fail-Safe Feature | Closes Automatically on Power Failure |
| Opening Control | Adjustable via Bleed Valve or Fixed Orifices |
| Temperature Range | 32°F to 125°F (0°C to 52°C) |
| Maximum Temperature | 125°F |
| Minimum Temperature | 32°F |
| Flow Direction | Straight-Through Pattern |
| Position Indicator | Available (optional accessory) |
| Application Type | Final Shutoff Service, Gas Flow Safety Control |
| Compliance | UL and CSA Certified for Gas Applications |
| Weight | 4.00 lbs (1.81 kg) |
Information About V48A2185
The V48A2185 is part of Honeywell’s V48 Series diaphragm gas valves, engineered for line-voltage service in gas-fired systems requiring reliable on-off control. This model operates as a normally closed safety valve that opens upon energization and closes tightly under both spring and diaphragm pressure when de-energized. Constructed from durable cast aluminum, the V48A2185 offers corrosion resistance and a lightweight design while maintaining structural strength for industrial gas piping. Its adjustable bleed orifice allows control of opening speed to match burner startup requirements, while the quick two-second closing action ensures rapid shutoff in emergency or power failure conditions. The valve is compatible with natural, propane, and manufactured gases and is widely used in furnaces, boilers, and industrial combustion systems.
Key Features:
- Normally Closed Safety Design: Ensures automatic gas shutoff when power is lost or system failure occurs.
- High Flow Capacity: Handles up to 2400 CFH for large industrial and commercial gas systems.
- Fast Response Time: Closes within two seconds for enhanced system safety.
- Line Voltage Operation: Runs directly on 120V AC power for easy integration with control systems.
- Adjustable Opening Rate: Configurable using bleed valve or fixed orifices to suit burner requirements.
- Durable Cast Aluminum Construction: Lightweight yet strong, providing long-lasting reliability.
- Wide Gas Compatibility: Supports natural gas, propane, and manufactured gas fuels.
- Horizontal Mount Design: Simplifies installation in standard gas lines.
- Temperature Resilience: Operates effectively between 32°F and 125°F.
- Optional Position Indicator: Allows for visual confirmation of valve status during operation.
The V48A2185 delivers the reliability and precision required for critical gas shutoff applications, ensuring safe, efficient control in industrial and commercial burner systems.
