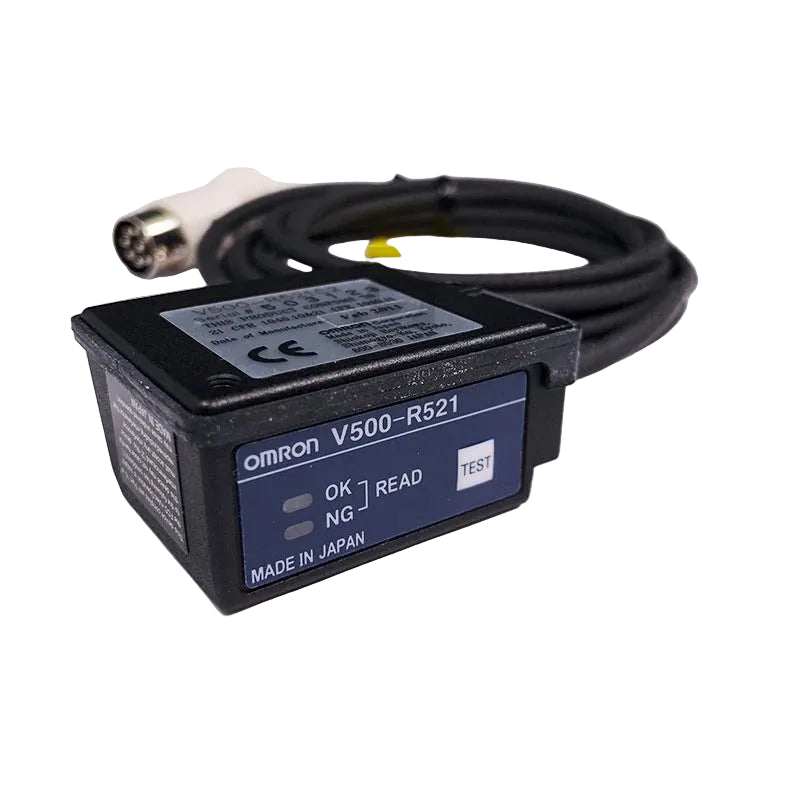

V500-R521 | Omron Fixed-Mount Laser Barcode Reader with RS-232C Interface and Raster Scanning
- Regular price
- $942.00
- Sale price
- $942.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: V500-R521
Description
The Omron V500-R521 is a compact fixed-mount laser barcode reader designed for reliable one-dimensional code scanning in industrial automation environments. This unit supports multiple barcode symbologies and delivers fast raster scanning performance for production tracking, labeling, and inspection systems. The V500-R521 integrates RS-232C communication for seamless connection to programmable controllers and monitoring devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | V500-R521 |
| Subcategory | Barcode Reader |
| Applicable Bar Codes | Code 39, NW-7, ITF, STF (2 of 5), Code 93, Code 128, EAN/UPC |
| Resolution | 0.15 mm (PCS 0.9) |
| Reading Distance | 60 to 270 mm |
| Light Source | Red laser diode, 650 nm |
| Optical Output | 1.0 mW max. |
| Scan Type | Raster scan |
| Scan Speed | 500 scans/s |
| Verification Indicators | Buzzer and LED indicators |
| Interface Type | RS-232C |
| Power Supply Voltage | 5 VDC ±10% |
| Current Consumption | 220 mA typ., 330 mA max. |
| Ambient Operating Temperature | 0 to 45°C |
| Enclosure Rating | IP54 |
| Cable Length | 2 m |
| Weight | Approx. 80 g |
Information About V500-R521
The V500-R521 is a laser-based barcode reader from Omron’s V500 series, engineered for high-speed identification tasks on factory floors. It is built around a red laser diode scanning system that ensures stable reading even at variable angles and distances. The reader supports common industrial barcode standards such as Code 39, Code 128, ITF, and EAN/UPC formats for wide compatibility across logistics and automation applications. With an IP54-rated enclosure and external trigger capability, it is well suited for integration into automated inspection lines and material handling systems.
Key Features:
- Multi-Bar Code Compatibility: Reads Code 39, NW-7, ITF, Code 93, Code 128, and EAN/UPC formats.
- High-Speed Raster Scanning: Performs up to 500 scans per second for rapid data capture.
- Red Laser Light Source: Equipped with a 650 nm laser diode for consistent reading accuracy.
- Flexible Reading Distance: Operates within a scanning range of 60 to 270 mm depending on barcode resolution.
- Wide Reading Angles: Supports skew angles up to ±50° and pitch angles up to ±25°.
- RS-232C Communication Interface: Provides stable serial output for industrial control and monitoring systems.
- External Trigger Support: Allows activation via transistor input or command trigger through RS-232C.
- Industrial Protection Rating: IP54 enclosure helps protect against dust and water exposure.
The V500-R521 delivers the reliability and precision required for industrial barcode identification and automated tracking systems.
