V5011N1099 | Honeywell 2" 2-Way F-NPT Globe Valve for Steam, Water, and Glycol Control
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: V5011N1099
Description

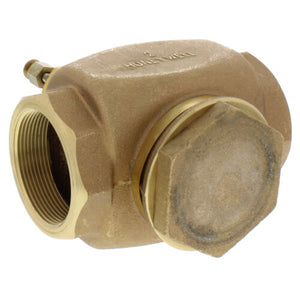

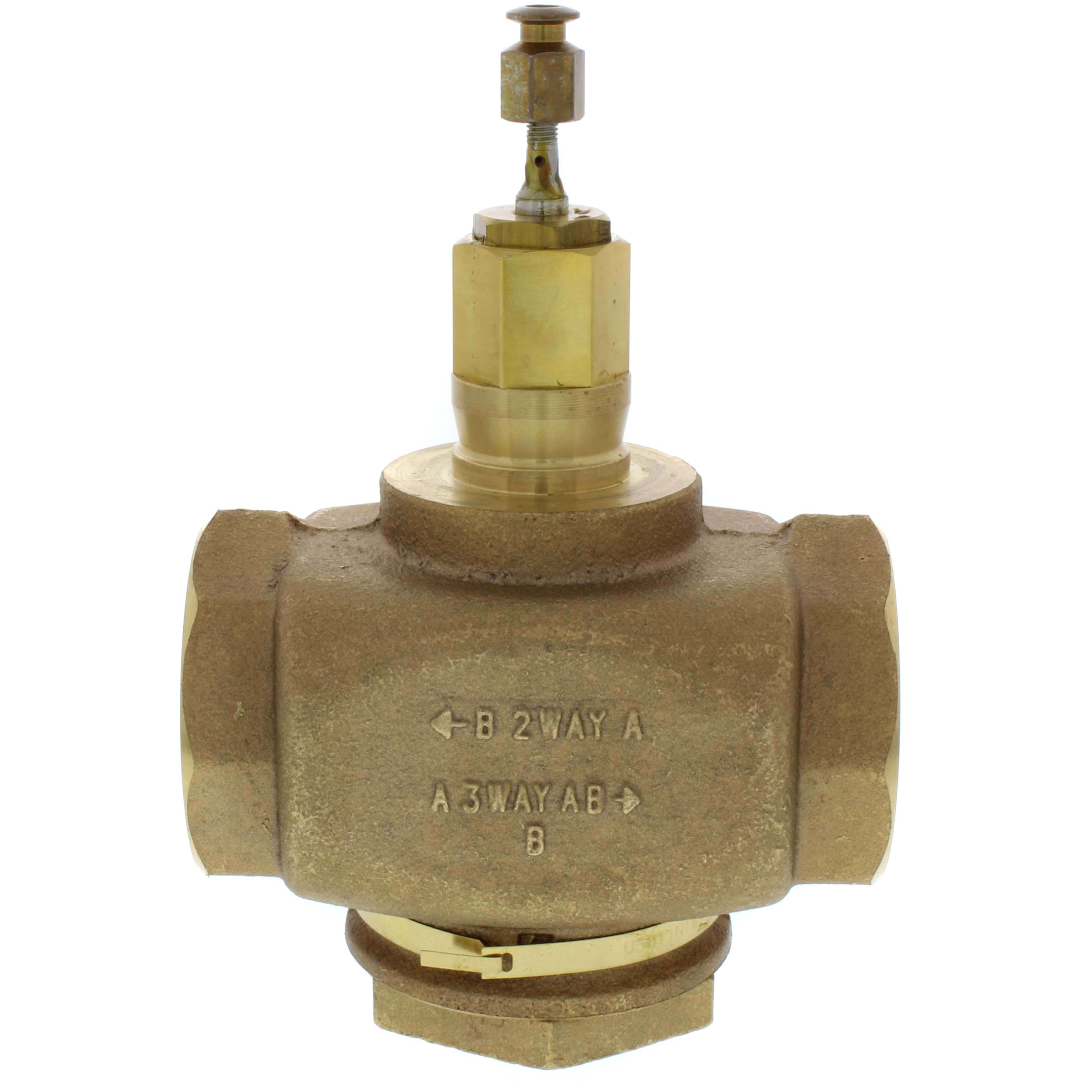

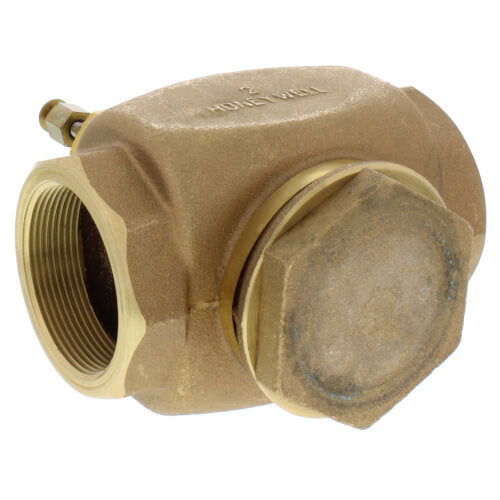

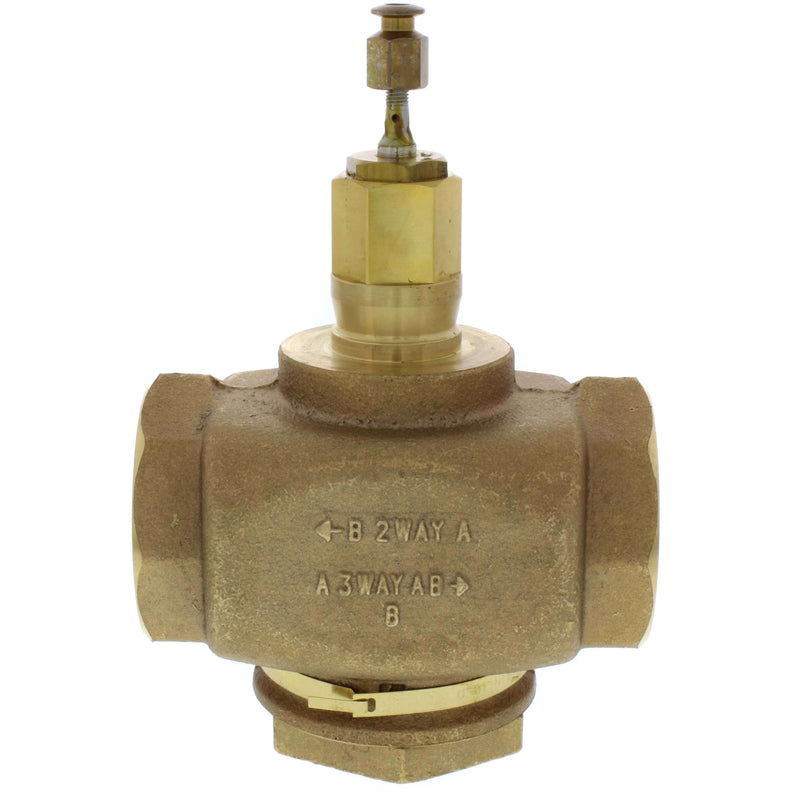

The Honeywell V5011N1099 is a 2-inch, 2-way threaded globe valve with female NPT connections designed for precise control of steam, water, and glycol mixtures in HVAC systems. Built with a red brass body and stainless steel stem, it provides excellent durability, corrosion resistance, and accurate flow regulation in both horizontal and vertical installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | V5011N1099 |
| Subcategory | Globe Valve |
| Valve Type | 2-Way Globe Valve |
| Connection Type | Female NPT (Threaded) |
| Valve Size | 2 inches |
| Body Material | Red Brass (Bronze) |
| Stem Material | Stainless Steel |
| Seat Material | Stainless Steel |
| Plug/Disc Material | Brass |
| Body Pattern | Two-Way |
| Controlled Medium | Chilled/Hot Water, Steam, or Glycol (up to 50%) |
| Pressure Rating | ANSI 150 |
| Max Pressure (WSP) | 15 psi (Steam) |
| Max Pressure (WOG) | 250 psi (Water/Oil/Glycol) |
| Static Pressure Rating | 240 psi Close-off |
| Rangeability | 50:1 per VDI/VDE 2173 |
| Flow Capacity (Cv) | 46.8 |
| Leakage Rating | ≤ 0.05% of Cv |
| Stem Travel | 3/4 inch |
| Ambient Temperature Range | 36°F to 248°F (2°C to 120°C) |
| Mounting Orientation | Horizontal or Vertical |
| Packing Type | Spring-Loaded, Self-Adjusting |
| Flow Characteristic | Equal Percentage (Water), Linear (Steam) |
| Actuation | Electric or Pneumatic (Sold Separately) |
| Dimensions (H × W × D) | 7-1/8 in × 4-3/4 in × 1-13/16 in |
| Bonnet Size | 1-3/8 in |
| Weight | 9.70 lbs |
Information About V5011N1099
The V5011N1099 is part of Honeywell’s V5011N Series of precision-engineered globe valves used in hydronic and steam control applications. Its rugged bronze body and stainless steel internal components make it ideal for long-term service in commercial and industrial HVAC systems. Designed to handle a range of controlled media—such as chilled or hot water, steam, and glycol—the valve ensures accurate temperature and flow management across coils, heat exchangers, and process systems. The self-adjusting packing and equal percentage flow characteristics contribute to stable performance and energy efficiency. With flexible installation options and support for both electric and pneumatic actuators, it integrates easily into existing system designs.
Key Features:
- High-Performance Construction: Red brass body and stainless steel stem and seat ensure excellent corrosion resistance and mechanical strength for long-term reliability.
- Versatile Medium Compatibility: Handles water, steam, or glycol mixtures (up to 50%) for broad HVAC and process applications.
- Precision Flow Control: Provides equal percentage flow for water and linear flow for steam, ensuring precise temperature regulation.
- Low Seat Leakage: Guarantees minimal leakage (≤ 0.05% of Cv), reducing energy loss and maintaining system efficiency.
- Wide Pressure Range: Rated for 250 psi WOG and 15 psi WSP, supporting high-pressure service in heating and cooling loops.
- Self-Adjusting Packing: Spring-loaded packing design maintains seal integrity and reduces maintenance requirements.
- Flexible Installation Orientation: Suitable for both horizontal and vertical mounting, enhancing application flexibility.
- Easy Actuator Integration: Compatible with direct-coupled electric and pneumatic actuators for seamless control.
- Wide Rangeability: Offers a 50:1 control ratio per VDI/VDE 2173 for stable and responsive modulation.
- Serviceability: Repack and rebuild kits available for convenient field maintenance and extended valve life.
The V5011N1099 delivers the reliability and precision required for demanding HVAC and process control systems, ensuring efficient flow regulation, long service life, and dependable performance under varying load conditions.
