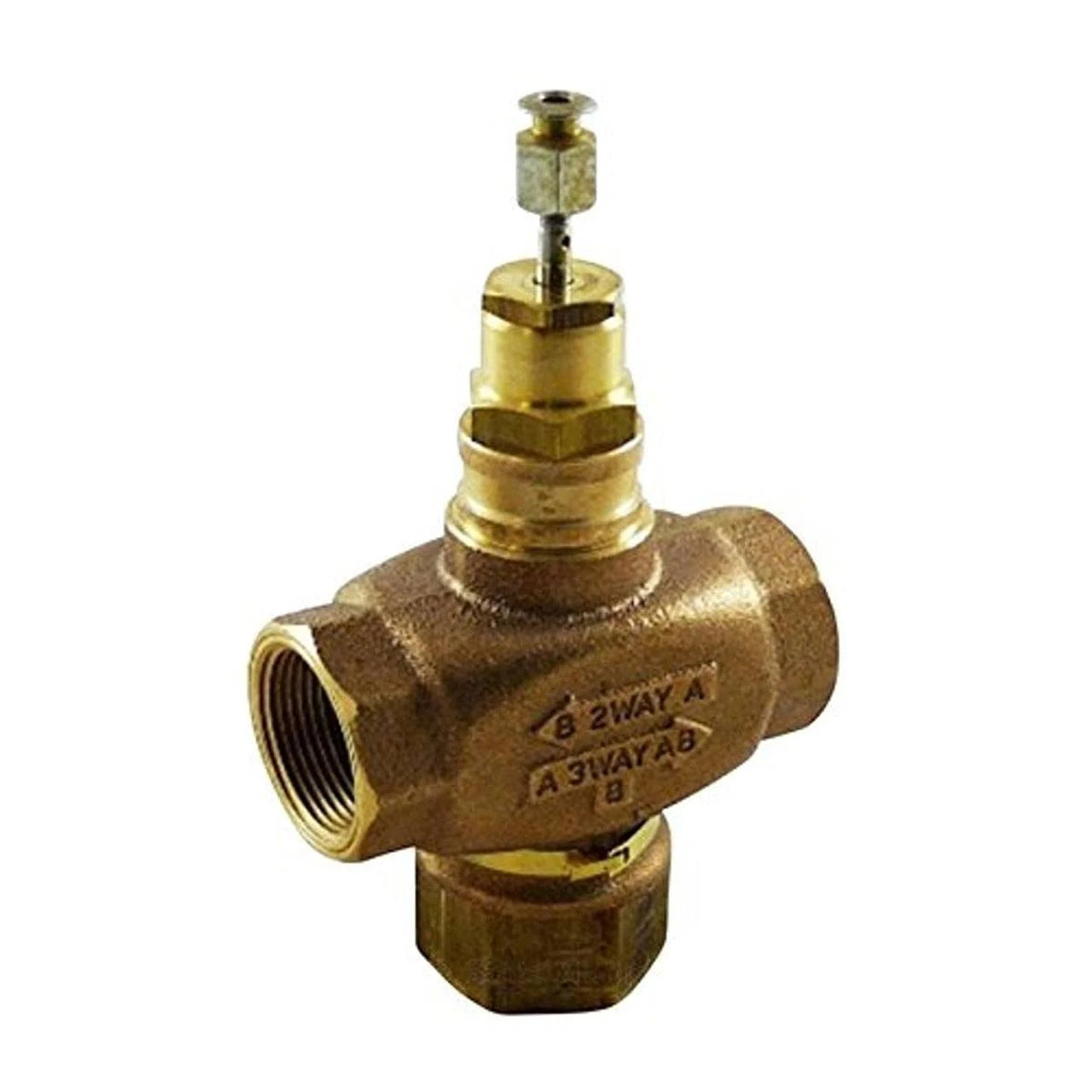

V5011N2097 | Honeywell 2-Inch NPT Two-Way Globe Valve 46.8 Cv Brass Body
- Regular price
- $1,132.00
- Sale price
- $1,132.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: V5011N2097
Description
The Honeywell V5011N2097 is a two-way threaded globe valve designed for precise control of steam, water, or glycol solutions (up to 50%) in heating and cooling HVAC systems. With a 2-inch NPT connection and 46.8 Cv capacity, it offers excellent modulation and durability for both two-position and proportional control applications. This valve is constructed from red brass with stainless steel internal components for high performance and long service life.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Valves |
| Part Number | V5011N2097 |
| Subcategory | Pressure Relief Valve |
| Valve Type | Two-way Globe Valve |
| Connection Type | Female NPT |
| Size | 2 in |
| Cv (Flow Coefficient) | 46.8 |
| Body Material | Red Brass |
| Seat Material | Stainless Steel |
| Stem Material | Stainless Steel |
| Plug Material | Brass |
| Body Pattern | Two-way |
| Actuation | Electric or Pneumatic (ordered separately) |
| Stem Travel | 3/4 in |
| Stem Diameter | 3/8 in |
| Flow Characteristic | Equal percentage (water), Linear (steam) |
| Maximum Differential Pressure (Close-off) | 240 psi |
| Differential Pressure (Quiet Water Service) | 20 psid |
| Static Pressure Rating | ANSI Class 150 |
| Controlled Medium | Water, 50% glycol solution, or steam |
| Temperature Range (Water) | 36 °F – 248 °F (2 °C – 120 °C) |
| Temperature Range (Steam) | Up to 340 °F (171 °C) |
| Leakage Rating | ≤ 0.05% of Cv |
| Rangeability | 50:1 (VDI/VDE 2173) |
| Packing Type | Spring-loaded, self-adjusting |
| Mounting Orientation | In any position except upside-down |
| Dimensions (H × W × D) | 11 5/16 in × 5 1/4 in × 4 3/4 in |
| Weight | 1.00 lb (0.45 kg) |
| Compliance | ANSI 150, VDI/VDE 2173 |
Information About V5011N2097
The V5011N2097 belongs to Honeywell’s V5011N series of two-way control globe valves used in hydronic and steam systems. It is designed for compatibility with electric or pneumatic actuators, providing accurate modulation of flow in temperature control systems. Featuring a self-adjusting spring-loaded packing and low seat leakage rate (≤ 0.05% of Cv), it ensures long-term reliability with minimal maintenance. The valve provides an equal-percentage flow characteristic for water and a linear flow characteristic for steam applications, optimizing system responsiveness. Rated for ANSI Class 150 service, the V5011N2097 is ideal for boilers, heat exchangers, fan coils, and air-handling unit installations.
Key Features:
- Versatile Media Compatibility: Controls hot or chilled water, 50% glycol mixtures, or steam up to 340 °F (171 °C).
- High Close-Off Rating: Handles up to 240 psi differential pressure for dependable shutoff in demanding HVAC circuits.
- Precision Control: Equal-percentage flow characteristic for water and linear for steam ensures smooth and stable modulation.
- Low Seat Leakage: ≤ 0.05% of Cv ensures accurate control and minimizes energy waste.
- Durable Construction: Red brass body with stainless steel stem and seat for corrosion resistance and longevity.
- Self-Adjusting Packing: Spring-loaded design maintains seal integrity and reduces maintenance.
- Field-Serviceable Design: Repack and rebuild kits available for extended operational life.
- Broad Rangeability: 50:1 flow control range per VDI/VDE 2173 supports fine adjustment across varying loads.
- Actuator Compatibility: Easily mounts to Honeywell’s electric or pneumatic actuators without linkage modification.
- Compact Dimensions: Ideal for mechanical rooms or retrofit installations with limited space.
The V5011N2097 delivers robust, precise control of steam or hydronic flow for high-efficiency HVAC temperature regulation.
