Product Description P/N: V8944C1025
Description

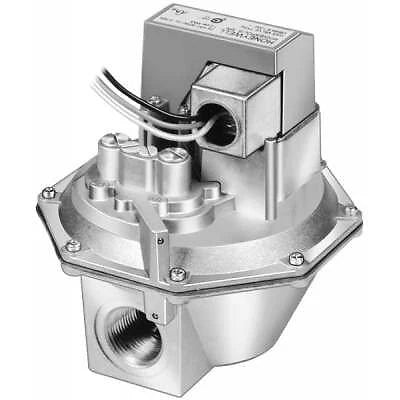

The Honeywell V8944C1025 is a two-stage solenoid-operated diaphragm gas valve designed for use with liquefied petroleum (LP) gas systems. Operating at 24 Vac and featuring a 1¼-inch NPT connection, it delivers reliable two-stage control for furnaces, boilers, and industrial gas-fired heating appliances.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Valves |
| Part Number | V8944C1025 |
| Subcategory | Gas Valve |
| Valve Type | Two-Stage Solenoid Diaphragm |
| Fuel Type | Liquefied Petroleum (LP) Gas |
| Voltage | 24 Vac |
| Frequency | 50/60 Hz |
| Connection Size | 1¼″ NPT |
| Body Material | Aluminum |
| Flow Capacity | 1,030 ft³/hr (29.2 m³/hr) |
| Pressure Rating | ½ psi (3.4 kPa) |
| Opening Time | Slow opening (<6 s) |
| Closing Time | Fast closing (≤2 s at 7 in. w.c.) |
| Regulator Type | Internal diaphragm |
| Temperature Range | –40 °F to +150 °F (–40 °C to +65 °C) |
| Mounting Position | Upright or horizontal within 0–90° range |
| Ignition Control Type | Intermittent pilot or hot surface systems |
| Safety Feature | Closes on power failure |
| Typical Applications | Furnaces, boilers, unit heaters, rooftop units |
| Approvals | CSA Certified |
| Weight | 4.00 lb (1.8 kg) |
Information About V8944C1025
The V8944C1025 is part of Honeywell’s V8944 Series two-stage gas valves, engineered to handle LP gas flow in residential, commercial, and industrial heating applications. This model combines a slow-opening, fast-closing diaphragm design with precision regulation to ensure safe and efficient gas delivery. It provides two stages of operation — low-fire and high-fire — to match burner demand, improving energy efficiency and comfort. Constructed from durable aluminum and equipped with fail-safe shutoff operation on power loss, the V8944C1025 is suitable for use in rooftop heaters, unit heaters, makeup air systems, and boilers requiring controlled LP gas flow.
Key Features:
- Two-Stage Operation: Provides low- and high-fire stages for efficient and responsive gas control.
- LP Gas Compatibility: Designed specifically for liquefied petroleum gas systems.
- 24 Vac Control Voltage: Works with low-voltage thermostats or controllers.
- Slow Opening / Fast Closing: Ensures smooth ignition and safe, rapid shutoff on power loss.
- High Capacity: Rated up to 1,030 cubic feet per hour gas flow for large appliances.
- Robust Construction: Die-cast aluminum housing for long-term durability and corrosion resistance.
- Fail-Safe Design: Valve automatically closes during power interruption for added safety.
- Wide Temperature Range: Operates from –40 °F to +150 °F, ideal for varied environments.
- Pressure Rating: Handles up to 0.5 psi (3.4 kPa) inlet pressure for high-performance systems.
- Versatile Applications: Commonly used in boilers, furnaces, duct heaters, and industrial burners.
The V8944C1025 delivers the reliability and precision required for efficient, safe control of LP gas in dual-stage combustion systems.
