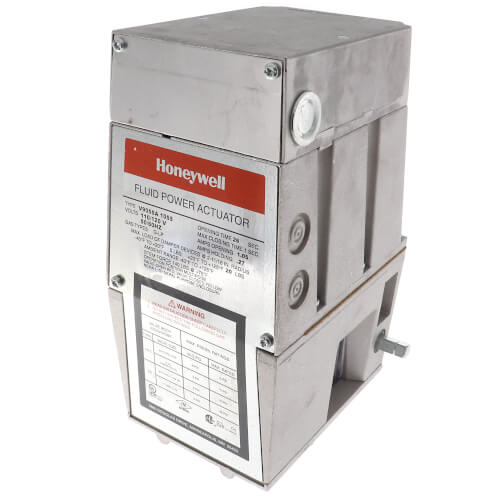

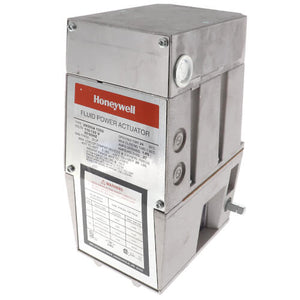

V9055A1055 | Honeywell Modulating Fluid Power Gas Valve Actuator
- Regular price
- $1,882.00
- Sale price
- $1,882.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: V9055A1055
Description
The Honeywell V9055A1055 is a fluid power actuator designed for use with V5055 and V5097 gas valves to provide modulating control of fuel gas in burner systems. This low-pressure actuator operates at 120 VAC and offers a 26-second opening time and a rapid 1-second closing time for enhanced safety.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Pneumatics
|
| Part Number | V9055A1055 |
| Subcategory | Pneumatic Actuator |
| Series | V9055 |
| Type | Low Pressure Fluid Power Gas Valve Actuator |
| Compatible Valves | V5055B, V5097B Series |
| Power Supply | 120 VAC, 60 Hz |
| Opening Time | 26 seconds |
| Closing Time | < 1 second |
| Max Operating Pressure | 5 psi (34 kPa) |
| Mounting | Direct to valve bonnet with 3 setscrews |
| Damper Shaft | Yes, 20 lb. max output force |
| Internal Auxiliary Switch | No |
| Proof of Closure Switch | No |
| Visual Indicator | Red (open), Yellow (closed) |
| Temperature Range (Operating) | -40°F to +125°F (-40°C to +52°C) |
| Enclosure Rating | Indoor use (NEMA rating not explicitly listed) |
| Electrical Rating | 120 VAC standard industrial application |
| Approvals (FM) | Approved when used with V5055B/C or V5097B/C |
| Approvals (Swiss RE / IRI) | Acceptable when used with V5055 or V5097 |
| Weight | 12.00 lbs (approx. 5.44 kg) |
Information About V9055A1055
The V9055A1055 belongs to Honeywell’s V9055 series of fluid power gas valve actuators, tailored for industrial and commercial burner control applications. It mounts directly to compatible valve bonnets using setscrews and includes an integral shaft to synchronize damper movement with valve operation. When energized, the actuator drives the valve to a low-fire position and modulates open as required by the firing rate controller. It continuously displays valve status via a colored mechanical indicator and delivers a closing time under one second for critical safety shutoff response. This model does not include auxiliary switches and is Factory Mutual and Swiss RE acceptable when paired with approved valves.
Key Features:
- Modulating Gas Control: Provides smooth and responsive valve modulation for burner applications.
- Fast Safety Shutdown: Closes in less than one second for rapid system isolation in case of fault.
- Integrated Damper Shaft: Drives combustion air dampers in unison with the valve using up to 20 lb. of force.
- Visual Position Indicator: Red/yellow display shows valve status at a glance.
- Direct Mounting: Installs securely to valve bonnet with three setscrews—no brackets required.
- Approved Pairing: Certified by Factory Mutual and Swiss RE when used with V5055/V5097 valves.
- Versatile Installation: Can be mounted in any orientation without affecting performance.
- Rugged Design: Designed to operate under tough industrial conditions from -40°F to +125°F.
The V9055A1055 delivers the precision and safety needed for modulating gas flow in industrial burner systems.
