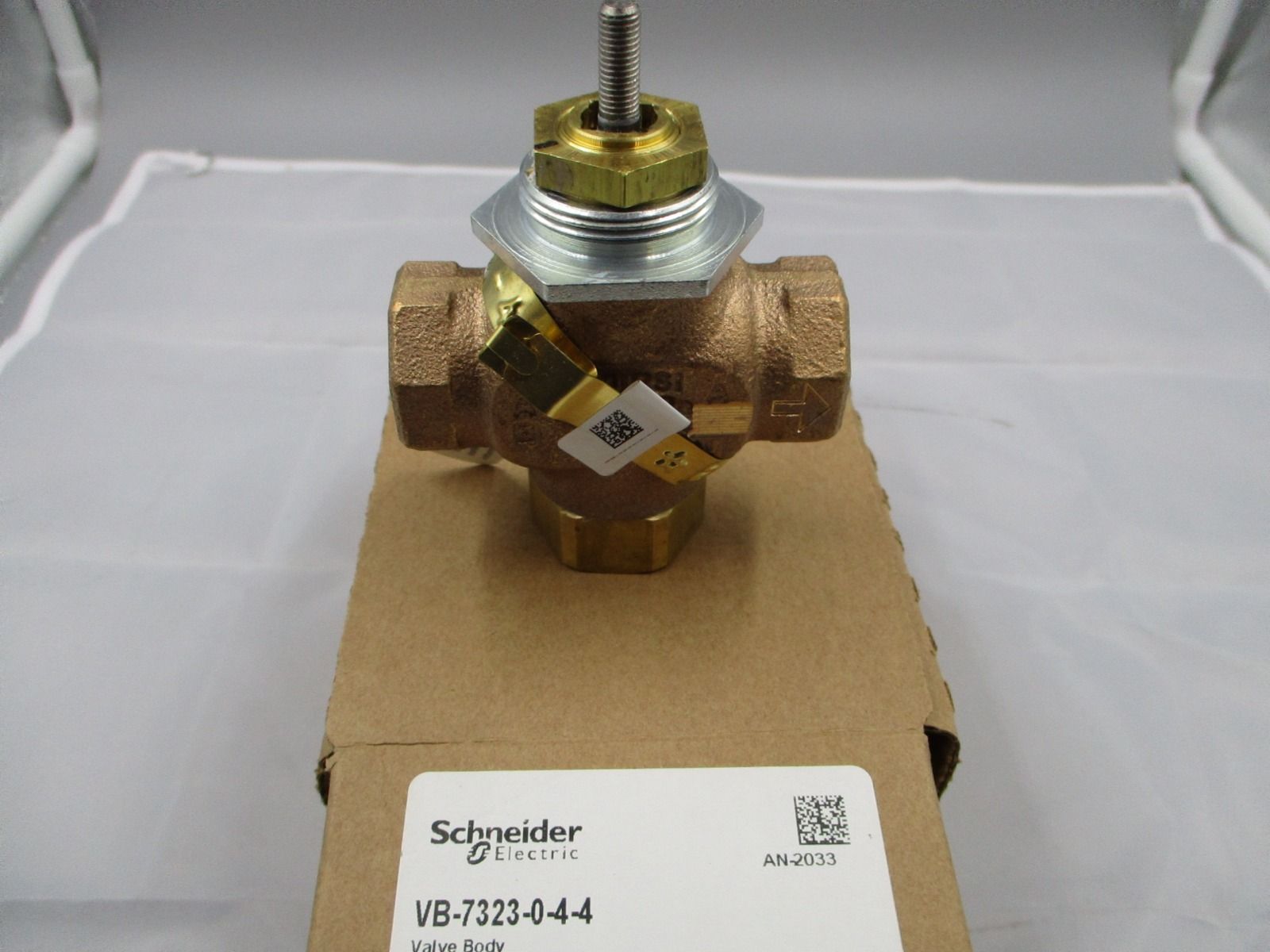

VB-7323-0-4-4 | Schneider Electric 1/2" 3-Way Diverting Globe Valve Body, Cv 4.4
- Regular price
- $448.00
- Sale price
- $448.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VB-7323-0-4-4
Description

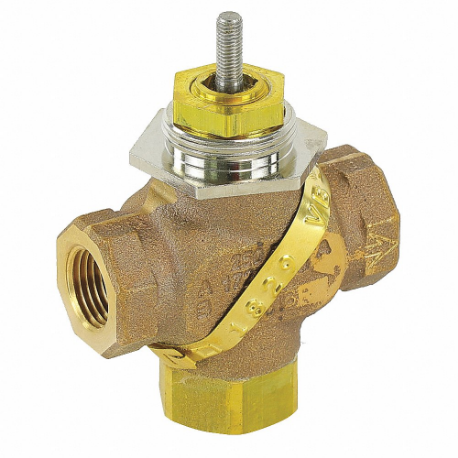

The Schneider Electric VB-7323-0-4-4 is a 3-way diverting globe valve body designed for precise flow control in hydronic HVAC systems. Part of the Venta™ VB-7300 series, this bronze valve body is engineered for chilled water, hot water, and glycol solutions up to 50%. It provides stable diverting control when paired with compatible electric or pneumatic actuators.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | HVAC Valves |
| Part Number | VB-7323-0-4-4 |
| Subcategory | Globe Valves |
| Valve Type | 3-Way Diverting Globe Valve |
| Body Size | 1/2 in (15 mm) |
| Flow Coefficient (Cv) | 4.4 |
| Connection Type | NPT Threaded |
| Pressure Class | ANSI Class 250 |
| Max Static Pressure | 400 psig @ 150°F |
| Max Differential Pressure | 35 psi |
| Operating Temperature Range | 20°F to 281°F (-7°C to 138°C) |
| Valve Body Material | Bronze/Brass |
| Stem Material | 316 Stainless Steel |
| Trim Material | Brass |
| Stem Action | Stem Up Flow B to AB |
| Compatible Media | Water, Glycol Solutions up to 50% |
| Weight | 1.8 lb |
Information About VB-7323-0-4-4
The VB-7323-0-4-4 is a threaded 3-way diverting valve body from Schneider Electric’s Venta VB-7300 series, built for demanding HVAC hydronic applications. It features a bronze/brass body with a stainless steel stem and brass trim to ensure durability under high pressure and temperature conditions. The valve is designed for diverting flow from one inlet to two outlets, with stem-up action directing flow from port B to AB. It is intended for use with separate linear actuators, including Forta, DuraDrive, MK pneumatic, and SpaceLogic direct-mount actuator series.
Key Features:
- 3-Way Diverting Design: Routes flow between two outlets for precise hydronic system control
- 1/2-Inch NPT Connections: Threaded connections allow easy installation in compact piping layouts
- Cv Rating of 4.4: Provides balanced flow capacity for terminal units and control loops
- High Pressure Capability: ANSI Class 250 rating supports demanding HVAC system conditions
- Wide Temperature Range: Operates reliably from 20°F to 281°F for heating and cooling applications
- Durable Metal Construction: Bronze body and stainless steel stem resist corrosion and wear
- Actuator Flexibility: Compatible with electric, pneumatic, and SpaceLogic non-spring return actuators
The VB-7323-0-4-4 delivers the reliability and precision required for accurate flow diversion in hydronic HVAC control systems.
