VEA-040-A10 | Honeywell Aspirating Smoke Detector 3.5" Display
- Regular price
- $9,522.00
- Sale price
- $9,522.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: VEA-040-A10
Description

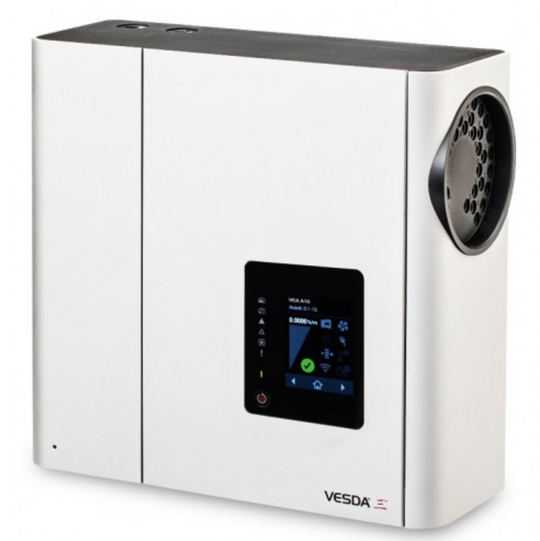

The Honeywell VEA-040-A10 is an intelligent aspirating smoke detector featuring pinpoint addressability, advanced detection sensitivity, and a 3.5-inch color touchscreen. It uses microbore tubes for localized sampling and ensures continuous system integrity monitoring with minimal disruption to building operations.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Fire Safety
|
| Part Number | VEA-040-A10 |
| Subcategory | Smoke Detector |
| Display | 3.5” color touchscreen |
| Sampling Points | 40 addressable microbore tubes |
| Tube Length | Up to 100 meters (328 feet) per point |
| Sensitivity Settings | 3 levels per sampling point |
| Filtration | Dual-stage filter with clean-air barrier |
| Relays | 7 programmable relays |
| Inputs | 2 GPIs (monitored and unmonitored) |
| Connectivity | Ethernet 100Base-T, Wi-Fi 802.11 b/g/n, USB, VESDAnet |
| Mobile Monitoring |
iVESDA mobile app support |
| Event Storage | 20,000 event log capacity |
| Enclosure Rating | IP40 (not UL tested) |
| Mounting | Steel support bracket included |
| Weight | 21.10 lbs |
Information About VEA-040-A10
The VEA-040-A10 combines the precision of laser-based smoke detection with addressable sampling point control, making it ideal for high-value or mission-critical environments. It supports up to 40 individually addressable microbore tubes, each capable of reporting smoke levels and faults independently. Designed for uninterrupted business environments, it enables centralized testing, automated sampling point cleaning, and real-time blockage detection—eliminating the need for manual inspection of each sampling location.
A dual-stage filtration system ensures clean airflow to the laser chamber, extending system life and reducing false alarms. Its user interface includes a 3.5-inch color touchscreen for local diagnostics, while connectivity options include VESDAnet networking, Ethernet, Wi-Fi (802.11 b/g/n), and USB. The system also supports mobile monitoring via the iVESDA app, and configuration through PC software. All major components—including the pump, sensor, rotary valve, and filter—are field-replaceable, ensuring low long-term maintenance cost.
Key Features:
- 40 Addressable Sampling Points: Uses microbore tubing to detect smoke from individual rooms or zones with pinpoint accuracy.
- Laser-Based Absolute Detection: Delivers highly sensitive smoke measurement through advanced laser technology.
- Automated Maintenance: Supports automatic cleaning and real-time blockage detection for each tube or point.
- 3.5" Color Touchscreen: Local interface for status viewing, alarm/fault signaling, and diagnostics.
- Multiple Sensitivity Settings: Three configurable smoke thresholds per sampling point.
- Field-Replaceable Components: Pump, sensor module, filter, and rotary valve can be replaced on-site.
- Advanced Connectivity: Ethernet, Wi-Fi, VESDAnet, USB, and iVESDA mobile app support.
- Programmable Outputs: Includes 7 programmable relays, 2 general-purpose inputs (monitored/unmonitored).
- Event Log Storage: Maintains up to 20,000 logged events for compliance and review.
- IP40 Enclosure with Steel Bracket: Durable housing for secure and simple wall mounting.
The VEA-040-A10 delivers reliable, highly accurate, and individually monitored smoke detection in applications where early warning and minimal operational disruption are critical.
