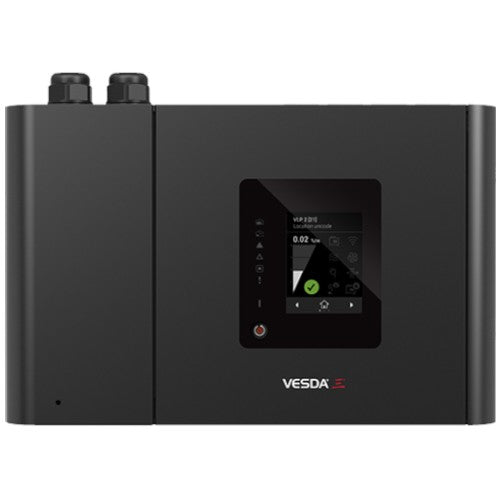

VEP-A00-1P-UL | Vesda-E VEP Flair Laser Smoke Detector (Class I Div 2, 1-Pipe Model)
- Regular price
- $3,715.00
- Sale price
- $3,715.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VEP-A00-1P-UL
Description
The Vesda® VEP-A00-1P-UL is a very early warning smoke detector from the advanced VESDA-E VEP series, designed for high-sensitivity detection across a wide range of environments. Built on Flair detection technology, it provides accurate and stable smoke detection with superior nuisance alarm rejection. This model includes advanced connectivity and diagnostic features for efficient operation and maintenance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Vesda |
| Category | Flame Safety Products |
| Part Number | VEP-A00-1P-UL |
| Subcategory | Flame Safety Detector |
| Series | VESDA-E VEP |
| Detection Technology | Flair short-wavelength laser-based detection |
| Pipe Configuration | One-pipe model (available in four-pipe variants) |
| Certification | Class I Division 2, Groups A, B, C & D |
| Alarm Levels | Four programmable levels |
| Sensitivity Range | Wide range for early warning and advanced protection |
| Filtration System | Multi-stage with clean air barrier |
| Airflow Monitoring | Flow fault thresholds per port |
| AutoLearn Functions | AutoLearn Smoke and AutoLearn Flow |
| Event Logging | Up to 20,000 events |
| Connectivity Options | Ethernet, USB, VESDAnet |
| Compatibility | Backward compatible with VLP detectors |
| Display Type | Intuitive LCD icon display |
| Replaceable Components | Field-replaceable sub-assemblies |
| Dimensions | 13.8 × 8.9 × 5.3 in |
| Weight | 9.7 lbs |
Information About VEP-A00-1P-UL
The VEP-A00-1P-UL is part of the VESDA-E VEP series, offering state-of-the-art aspirating smoke detection for industrial, commercial, and mission-critical applications. It utilizes short-wavelength laser-based Flair technology, which delivers consistent, high-sensitivity detection of smoke particles without requiring drift compensation. The detector supports Class I Division 2 environments (Groups A, B, C, and D) and is fully backward compatible with VLP models and the VESDAnet communications network. With Ethernet and USB interfaces, the VEP-A00-1P-UL simplifies configuration, monitoring, and maintenance while maintaining the highest standards of fire protection performance.
Key Features:
- Flair Detection Technology: Provides highly stable, laser-based smoke detection with minimal nuisance alarms.
- Class I Division 2 Rated: Certified for use in hazardous environments under Groups A, B, C, and D.
- Multi-Stage Filtration: Clean air barriers and filtration protect optical components for long-term accuracy.
- Flexible Configuration: Available in one- and four-pipe variants to match system requirements.
- Extensive Event Logging: Stores up to 20,000 events for diagnostics and performance analysis.
- Smart Filter Management: On-board filter tracks dust count and remaining life for predictive maintenance.
- AutoLearn™ Functions: Automatically optimizes smoke and flow settings during commissioning.
- Advanced Connectivity: Ethernet and USB interfaces support configuration, firmware updates, and Xtralis software integration.
The VEP-A00-1P-UL delivers the reliability and precision required for very early smoke detection in demanding industrial and commercial applications.
