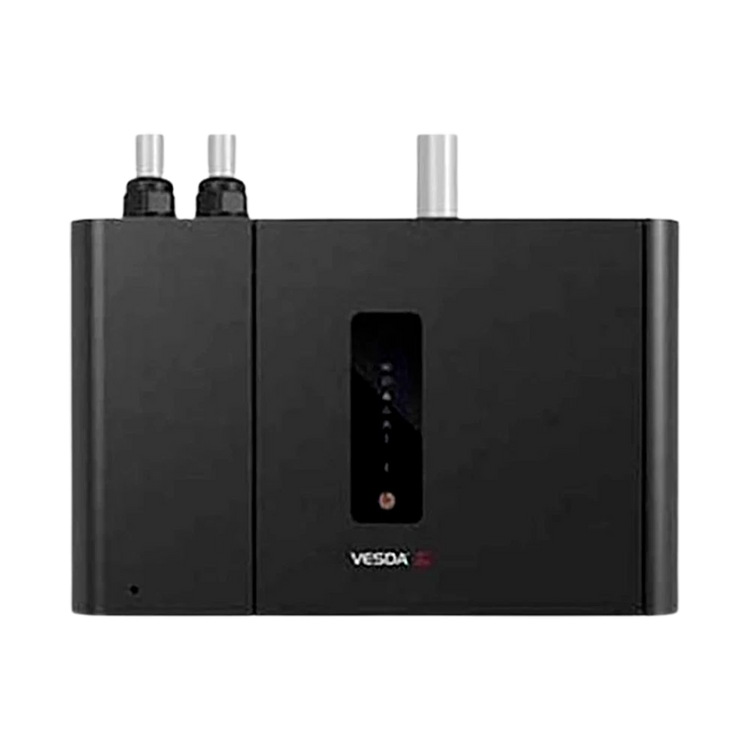

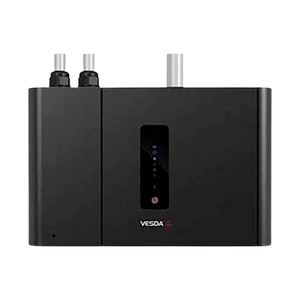

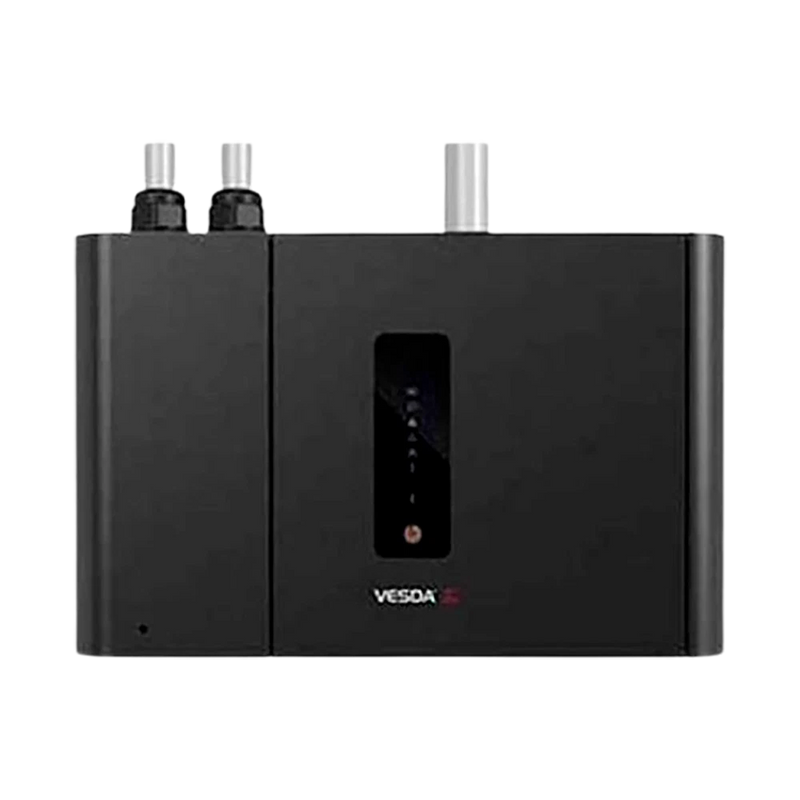

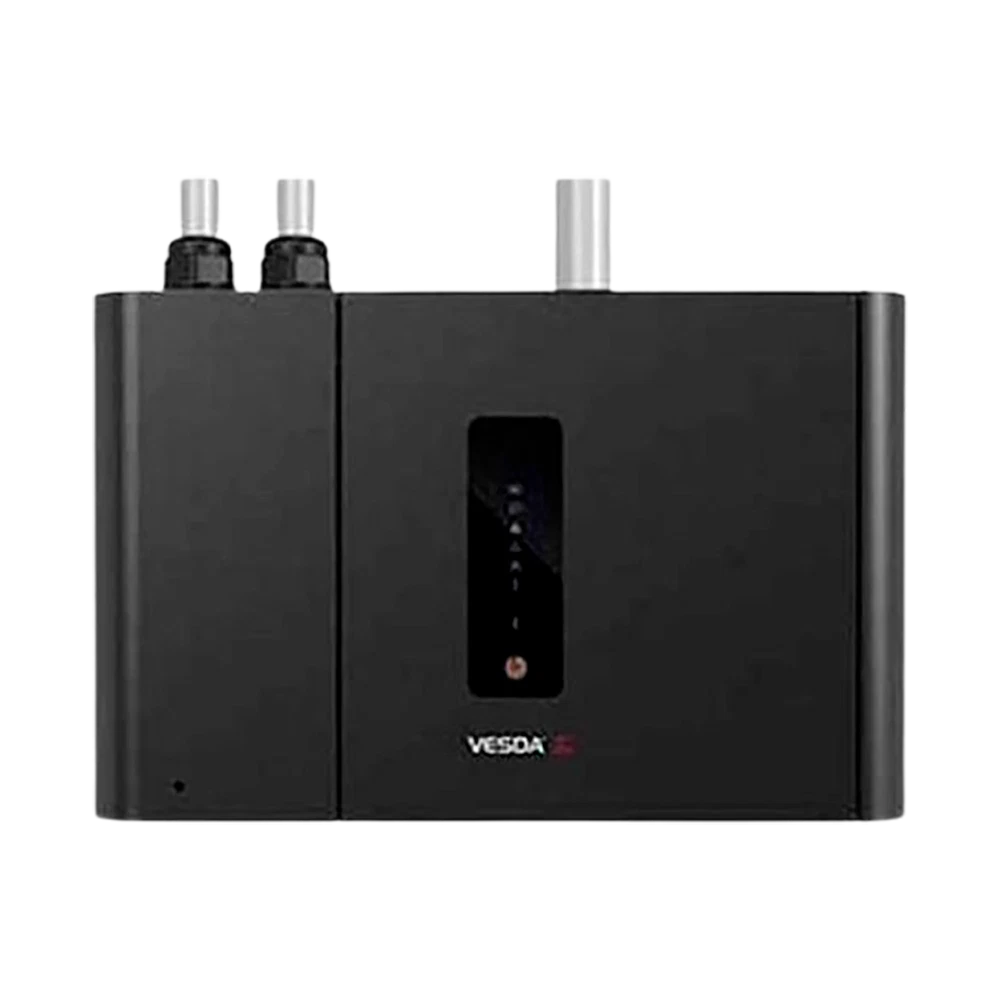

VEP-A00-1P | Xtralis VESDA-E One-Pipe Aspirating Smoke Detector with Flair Detection
- Regular price
- $2,879.00
- Sale price
- $2,879.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VEP-A00-1P
Description
The Xtralis VESDA-E VEP-A00-1P is a high-performance aspirating smoke detector designed for one-pipe configurations in small to medium critical environments. Using advanced Flair detection technology, it provides very early warning smoke detection with minimal nuisance alarms. The detector continuously samples air through an intelligent network of pipes to deliver fast, reliable, and precise fire detection for mission-critical facilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Vesda |
| Category | Fire Safety |
| Part Number | VEP-A00-1P |
| Subcategory | Aspirating Smoke Detector |
| Detection Technology | Flair CMOS-based optical imaging |
| Configuration | Single-pipe aspirating smoke detector |
| Pipe Length (Max) | 130 m (427 ft) |
| Detection Principle | Laser light scattering with particle imaging |
| Coverage Area | Up to 800 m² (8,600 sq. ft.) typical |
| Sensitivity Range | 0.005%–20% obs/m (configurable) |
| Alarm Levels | Four (Alert, Action, Fire 1, Fire 2) |
| Event Log Capacity | 20,000 events |
| Display | LED status indicators with intuitive LCD display |
| Airflow Monitoring | AutoLearn™ flow and AutoConfig normalization |
| Networking | VESDAnet, Ethernet, Wi-Fi connectivity |
| Power Supply | 24 VDC nominal (18–30 VDC range) |
| Current Consumption | 250 mA (typical), 400 mA (max) |
| Operating Temperature | 0°C to 39°C (32°F to 102°F) |
| Humidity Range | 0%–95% RH, non-condensing |
| Mounting Orientation | Upright or inverted wall mounting |
| Communication Interface | RS-485, USB, Ethernet, Wi-Fi |
| Enclosure Material | Metal housing with powder-coated finish |
| Dimensions (H × W × D) | 16 × 11 × 6.5 in (406 × 279 × 165 mm) |
| Weight | 12 lbs (5.4 kg) |
Information About VEP-A00-1P
The VEP-A00-1P is part of the VESDA-E VEP Series by Xtralis, a next-generation range of aspirating smoke detectors built on revolutionary Flair detection technology. It uses a CMOS imaging sensor and multiple photodiodes to analyze air samples with exceptional accuracy and stability. Designed for one-pipe systems, this model offers flexible installation options with up to 130 meters (427 feet) of sampling pipe. Equipped with Ethernet and Wi-Fi connectivity, the detector supports direct network integration, remote configuration, and proactive monitoring through VESDAnet or Xtralis software. The system’s AutoLearn™ and AutoConfig features simplify commissioning and ensure consistent sensitivity throughout its lifetime.
Key Features:
- Flair Detection Technology: Uses CMOS imaging and multiple photo-diodes for superior sensitivity and long-term stability.
- One-Pipe Coverage: Supports up to 130 m (427 ft) of sampling pipe length for compact applications.
- Advanced Filtration System: Multi-stage filter and clean air barrier ensure lifetime optical performance.
- AutoLearn™ Functions: Automatic smoke and flow learning optimize sensitivity and reduce commissioning time.
- Ethernet and Wi-Fi Connectivity: Enables remote configuration, diagnostics, and data access via Xtralis software.
- Event Log and Analytics: Stores up to 20,000 events for advanced system diagnostics and performance review.
- Smart Filter Maintenance: Onboard dust retention filter ensures predictable maintenance cycles.
- Full Compatibility: Works seamlessly with existing VESDAnet systems and VLP/VLC legacy detectors.
The VEP-A00-1P delivers the reliability and precision required for mission-critical fire detection in data centers, clean rooms, telecommunications, and other sensitive environments.
