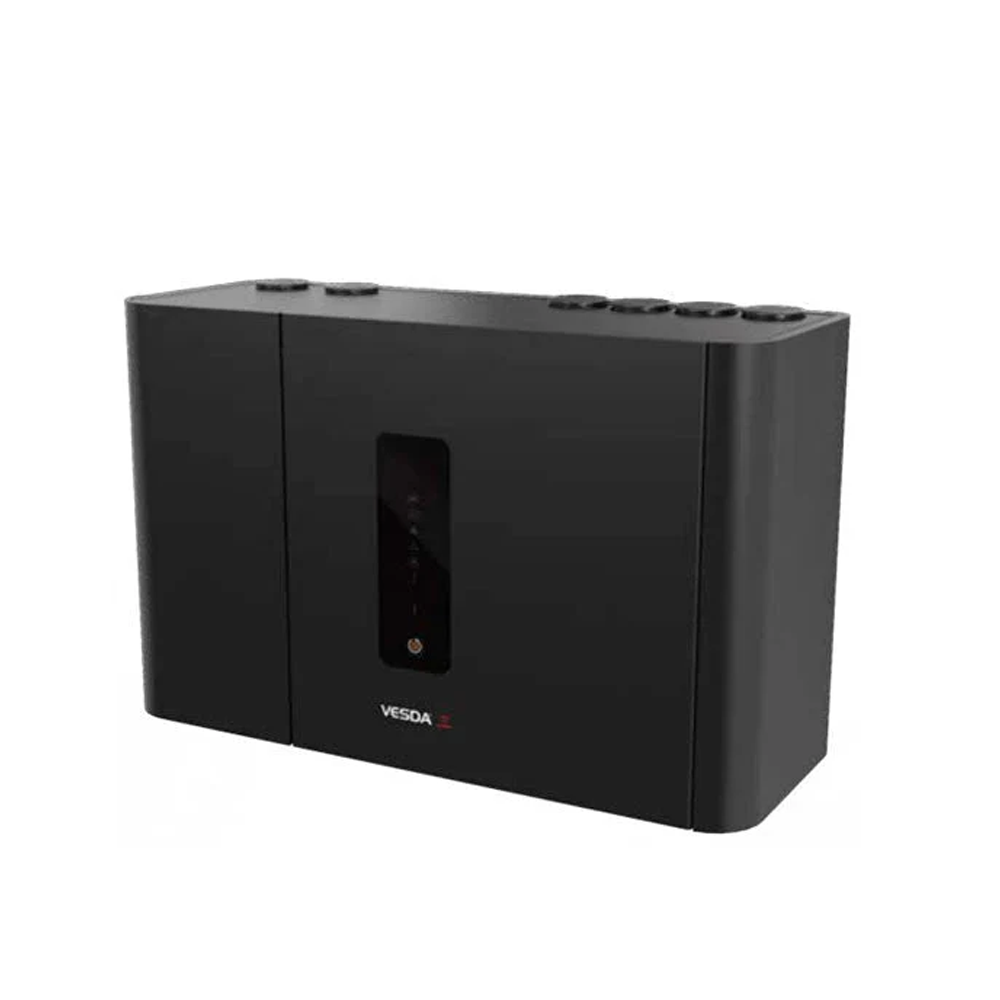

VES-A00-P-UL | Honeywell VESDA-E VES Sector Aspirating Smoke Detector (4-Pipe, UL Listed)
- Regular price
- $8,662.00
- Sale price
- $8,662.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: VES-A00-P-UL
Description
The Honeywell VESDA-E VES-A00-P-UL is an addressable aspirating smoke detector with a 4-pipe, sector-addressable configuration. It delivers very early warning smoke detection and sector reporting with built-in LED indicators. This model combines the capabilities of the VESDA-E VES platform with UL listings for North America.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Aspirating Smoke Detection |
| Part Number | VES-A00-P-UL |
| Subcategory | Sector Aspirating Detector |
| Supply Voltage | 18–30 VDC (24 V nominal) |
| Power (Quiescent / Alarm) | ~7.5 W / ~8.4 W (depending on aspirator setting) |
| Number of Pipes / Sectors | Up to 4 sectors (pipes) |
| Max Linear Pipe Length | 280 m (919 ft) total length |
| Max Branched Pipe Length | 560 m (1,837 ft) |
| Hole Class (A/B/C configurations) | 40 / 80 / 100 holes |
| Sampling Air Range | –20°C to 60°C (–4°F to 140°F) |
| Operating Ambient Temp | 0°C to 38°C (32°F to 100°F) |
| Humidity Range | 5% to 95% RH, non-condensing |
| Relay Contact Rating | 2 A @ 30 VDC (resistive) |
| IP Rating | IP40 |
| Housing Dimensions | 350 × 225 × 135 mm (13.8 × 8.9 × 5.3 in) |
| Weight | 4.7 kg (≈ 10.4 lbs) |
Information About VES-A00-P-UL
The VES-A00-P-UL is part of the VESDA-E VES family, which adds airflow control valves and software support to sectorize a single zone into up to four configurable sampling channels. Its plastic enclosure houses the Flair detection chamber that employs direct imaging to reduce drift and minimize nuisance alarms. It supports Ethernet and USB connectivity for commissioning, firmware updates, and integration with design and monitoring tools. The VES-A00-P-UL is backward compatible with existing VESDAnet infrastructure and is suitable for mission-critical environments such as data centers, clean rooms, and warehouses.
Key Features:
- Sector Addressability: Divides detection into up to four independent sampling sectors for spatial resolution of smoke sources.
- Flair Detection Technology: Employs direct imaging via CMOS sensor to improve stability and reduce drift.
- Adaptive Scan Threshold: Automatically switches between sampling and sector scans based on smoke levels.
- 12 Programmable Relays: Supports local control wiring via configurable relay outputs.
- Large Event Log: Records up to 20,000 events for diagnostics and trend analysis.
- Network Connectivity: Supports Ethernet and standard VESDAnet communications for integration and monitoring.
- AutoLearn Smoke & Flow: Facilitates fast, reliable commissioning via adaptive thresholding.
- Backward Compatibility: Works with legacy VESDAnet systems, preserving existing wiring and infrastructure.
The VES-A00-P-UL delivers the reliability and precision required for very early smoke detection and sector-level monitoring in advanced aspirating systems.
