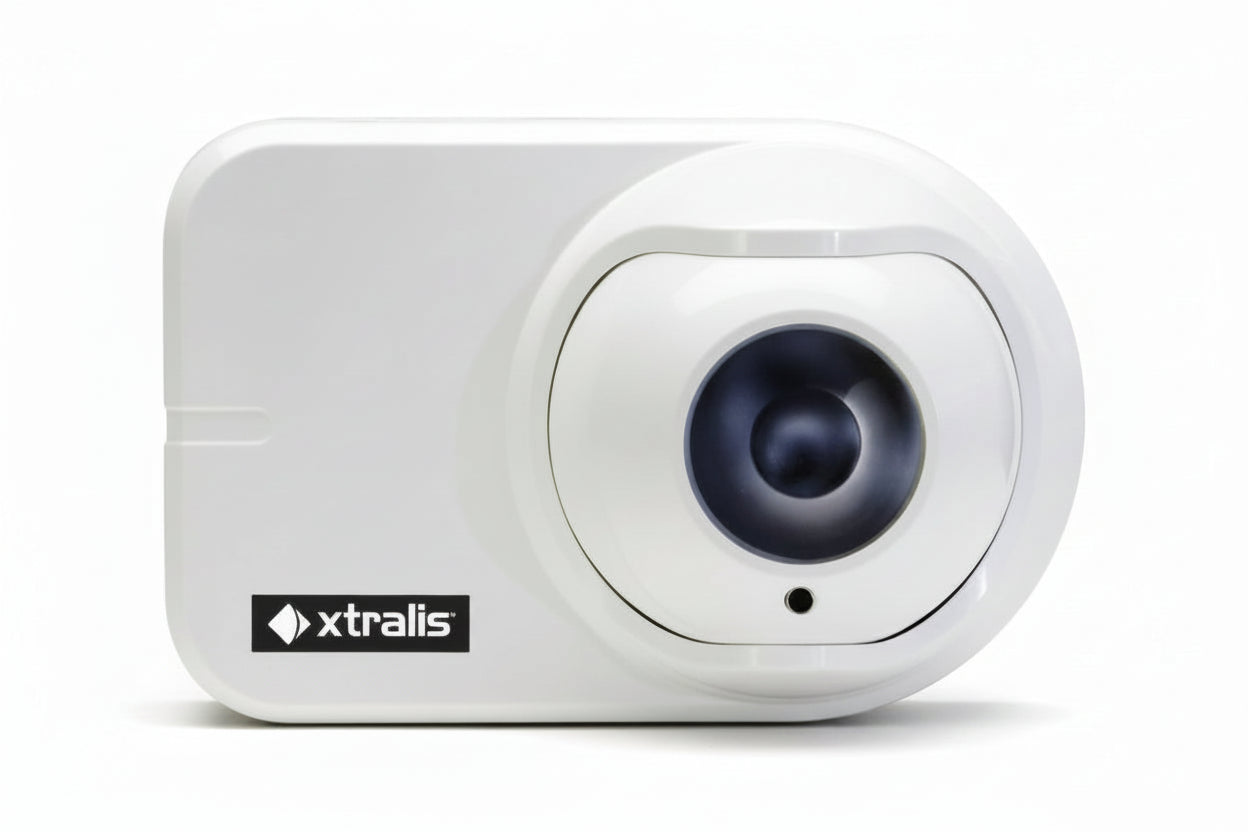

VESDA OSI-10 Open-Area Smoke Imaging Detector with 7° Coverage
- Regular price
- $947.00
- Sale price
- $947.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OSI-10
Description
The VESDA OSI-10 is an open-area smoke-imaging detector designed for monitoring large, unobstructed spaces. It uses optical imaging technology to identify smoke across extended distances and provides a 7° field of coverage. The detector is intended for integration into compatible fire alarm systems in facilities such as warehouses, transportation terminals, and commercial buildings.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | VESDA |
| Category | Fire Safety |
| Part Number | OSI-10 |
| Subcategory | Open-Area Smoke Imaging Detectors |
| Product Family | OSID |
| Product Type | Optical Smoke Imager |
| Detection Technology | Optical imaging |
| Imaging Sensor | CMOS |
| Coverage Angle | 7° |
| Maximum Detection Range | Approximately 150 m (492 ft), system dependent |
| Operating Voltage | 20–30 VDC |
| Detector Configuration | Imager for use with compatible OSID emitters |
| Alignment | Automatic and manual alignment |
| Status Indicators | LED indicators for power, alarm, and trouble |
| Ingress Protection | IP44 for electronics; IP66 for optics enclosure |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Relative Humidity | 10–95%, non-condensing |
| Applicable Standard | BS EN 54-12 |
| Signal Delay | 10 seconds for alarm and trouble |
| Reset Time | More than 5 seconds with power-down reset |
| Listings | UL, ULC, CE |
| Weight | 2.25 lbs |
Information About OSI-10
The OSI-10 is part of the VESDA OSID family of open-area smoke detection equipment manufactured by Xtralis, a VESDA brand. It is a 24 VDC imager designed to work with compatible OSID emitters to monitor smoke across large areas. The unit uses CMOS imaging technology and optical signal processing to distinguish smoke conditions from certain environmental disturbances. Automatic alignment, status indicators, and configurable alarm thresholds support installation and system commissioning.
Key Features:
- Optical Imaging Technology: Uses an imaging-based optical system for open-area smoke detection.
- 7° Coverage: Provides a narrow field of view for extended-range monitoring.
- Long Detection Range: Supports a maximum detection range of approximately 150 meters (492 feet), depending on system configuration.
- CMOS Imaging: Employs a CMOS imaging sensor for optical smoke analysis.
- Automatic Alignment: Supports automatic and manual beam alignment during installation.
- Environmental Tolerance: Designed to tolerate certain effects of dust, building movement, and temporary beam obstructions.
- LED Status Indicators: Provides visual indication of power, alarm, and trouble conditions.
- Conventional Alarm Interface: Supports integration with compatible fire alarm control panels.
The OSI-10 delivers the reliability and precision required for large-area optical smoke detection and fire alarm system integration.
