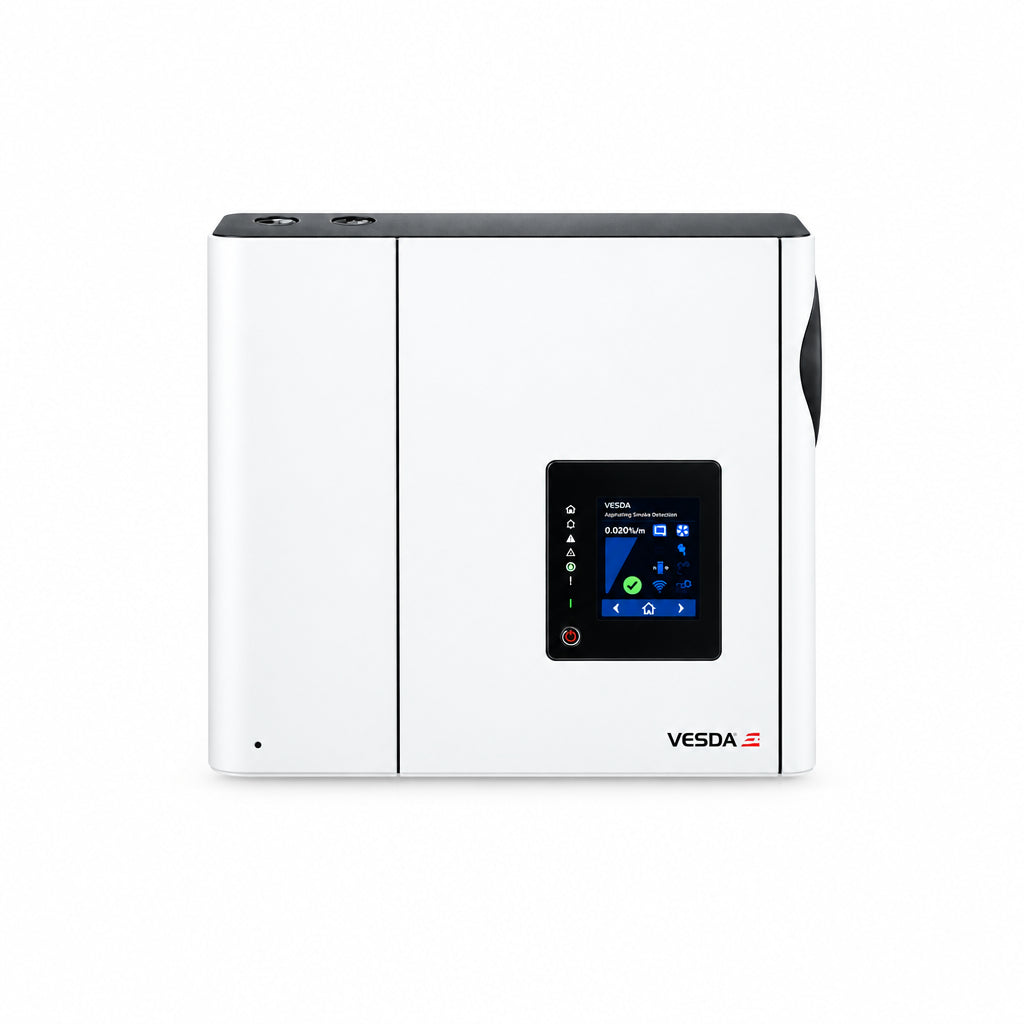

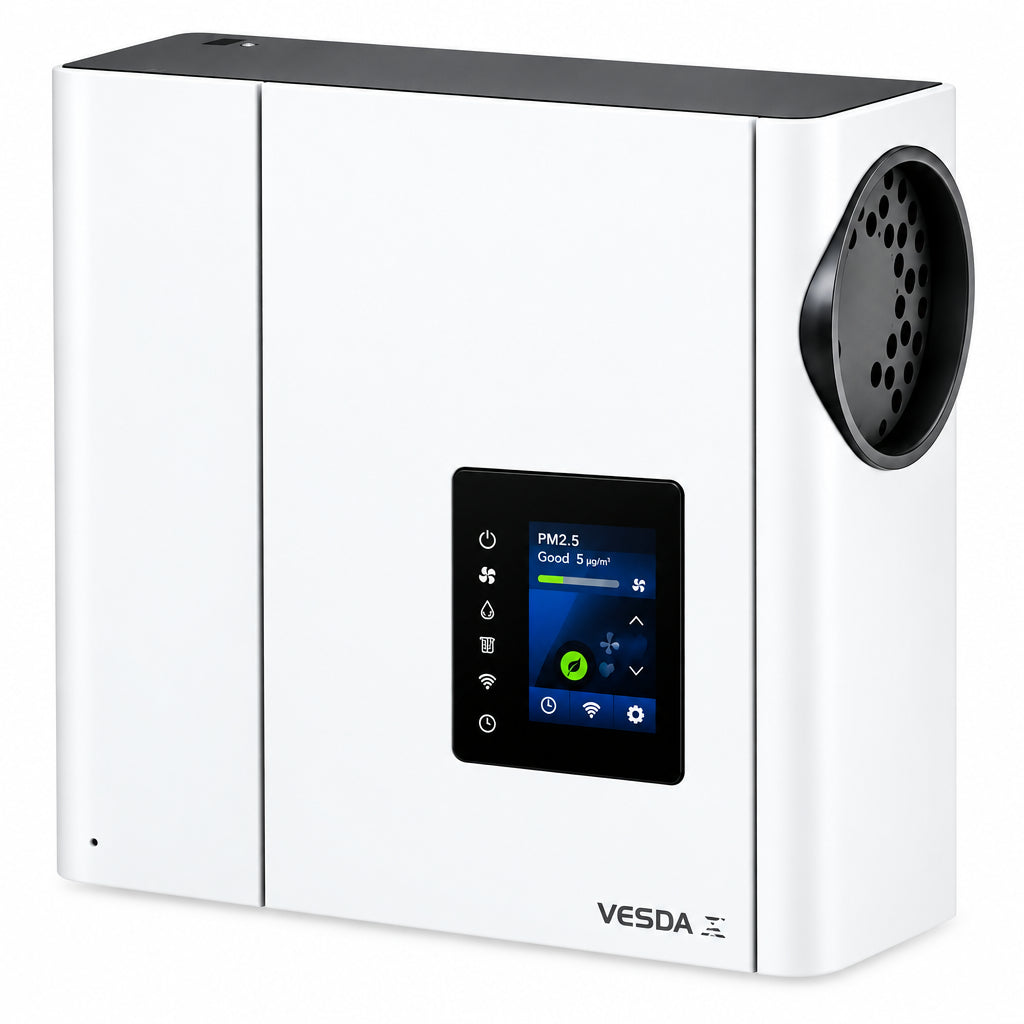

VESDA VEA-040-A10-UL VESDA-E Aspirating Smoke Detector 40-Point
- Regular price
- $8,389.00
- Sale price
- $8,389.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VEA-040-A10-UL
Description
The VESDA VEA-040-A10-UL is a VESDA-E VEA aspirating smoke detector designed for early warning fire detection with pinpoint addressability. It continuously draws air from a network of sampling points and analyzes the samples using laser-based smoke detection, while sequentially scanning individual sampling locations to identify the source of a fire alarm. The UL 7th Edition version includes a 3.5-inch LCD display and supports up to 40 addressable sampling points.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | VESDA / Xtralis |
| Category | Fire & Life Safety |
| Part Number | VEA-040-A10-UL |
| Subcategory | Aspirating Smoke Detectors |
| Series | VESDA-E VEA |
| Device Type | Addressable Aspirating Smoke Detector |
| Detection Method | Laser-Based Aspirating Smoke Detection |
| Sampling Points | Up to 40 addressable points |
| Display | 3.5-inch LCD touchscreen |
| Supply Voltage | 18–30 VDC |
| Nominal Voltage | 24 VDC |
| Sensitivity Range | 0.005–20% obscuration/m |
| Alarm Levels | Alert, Action, Fire 1, Fire 2 |
| Communication | VESDAnet |
| Sampling Method | Vacuum Aspirator |
| Airflow Monitoring | Yes |
| Rotary Valve | Yes |
| Filter | Internal replaceable filter |
| Relay Outputs | 7 programmable relays |
| Operating Temperature | 0°C to 38°C |
| Relative Humidity | 10–95%, non-condensing |
| Protection Rating | IP30 |
| Dimensions | Approx. 13.86 × 13.23 × 5.33 in. |
| Weight | 25.4 lb |
Information About VEA-040-A10-UL
The VEA-040-A10-UL uses a vacuum pump to draw air through microbore sampling tubing and continuously monitors airflow for blocked or broken sampling points. When smoke reaches the programmed alarm thresholds, the detector can report alarm conditions through relays and VESDAnet and can identify individual sampling locations through its rotary valve scanning system. The unit provides four programmable alarm thresholds and includes an integrated filter, smoke sensor module, pump, rotary valve, and 3.5-inch touchscreen display. The UL 7th Edition model is intended for applications requiring addressable aspirating smoke detection across multiple protected areas.
Key Features:
- Aspirating Smoke Detection: Continuously samples air from connected sampling points for early smoke detection.
- 40-Point Addressability: Supports up to 40 individually addressable sampling locations.
- Pinpoint Fire Location: Sequentially scans sampling points to identify the location associated with a fire alarm.
- Laser Detection: Uses laser-based smoke detection technology for continuous analysis of sampled air.
- Vacuum Pump: Provides active air sampling and supports long sampling tube configurations.
- 3.5-Inch LCD: Provides local access to detector status, alarms, faults, and system information.
- VESDAnet Communication: Supports bi-directional communication with compatible VESDA network equipment.
- Airflow Monitoring: Monitors individual sampling points and tubing for airflow faults.
The VEA-040-A10-UL provides centralized aspirating detection and addressable fire-location capabilities for compatible fire detection installations.
