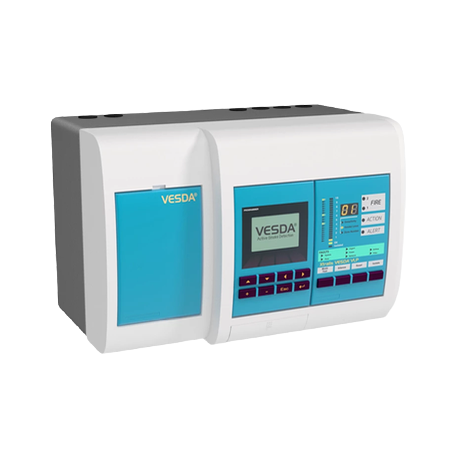

Vesda VLP-400 Laser Aspirating Smoke Detector with Four Inlet Pipes
- Regular price
- $4,999.00
- Sale price
- $4,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VLP-400
Description
The Vesda VLP-400 is a laser-based aspirating smoke detector designed for very early warning fire detection in commercial and industrial environments. It continuously samples air through up to four inlet pipes and provides a wide alarm sensitivity range from 0.005% to 20% obscuration/m. The detector supports reliable smoke monitoring with multiple alarm levels, airflow supervision, filtration, and advanced system communication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Vesda |
| Category | Fire Alarm Equipment |
| Part Number | VLP-400 |
| Subcategory | Aspirating Smoke Detectors |
| Detection Method | Laser-based absolute smoke detection |
| Alarm Sensitivity | 0.005%–20% obscuration/m |
| Alarm Levels | 4 configurable |
| Maximum Coverage Area | Up to 2,000 m² |
| Airflow Monitoring | Individual supervision per sampling pipe |
| Aspirator | High-efficiency |
| Air Filtration | Dual-stage air filter |
| Programmable Relays | 7 |
| Additional Functions | AutoLearn, Referencing, Event Log |
| Weight | 4 lb |
Information About VLP-400
The Vesda VLP-400 is the central detector in the Vesda VLP aspirating smoke detection series. It uses laser-based absolute smoke detection and can detect smoke concentrations ranging from very low to high levels. The unit supports four configurable alarm levels, seven programmable relays, VESDAnet communication, AutoLearn, Referencing, and event logging. Its modular design allows the display and programmer to be installed locally or remotely as part of a larger system.
Key Features:
- Laser Smoke Detection: Uses laser-based technology for continuous and sensitive smoke measurement.
- Wide Sensitivity Range: Provides alarm sensitivity from 0.005% to 20% obscuration/m.
- Four Alarm Levels: Supports four configurable alarm thresholds for staged fire response.
- Four Inlet Pipes: Allows connection of up to four air-sampling pipes.
- Airflow Supervision: Monitors airflow independently for each sampling pipe.
- High-Efficiency Aspirator: Provides continuous air sampling throughout the connected pipe network.
- Programmable Relays: Includes seven programmable relays for system control and integration.
- VESDAnet Communication: Supports networking with other compatible Vesda system components.
The Vesda VLP-400 delivers the reliability and precision required for very early warning smoke detection in commercial and industrial environments.
Description
The Vesda VLP-400 is a laser-based aspirating smoke detector designed for very early warning fire detection in commercial and industrial environments. It continuously samples air through up to four inlet pipes and provides a wide alarm sensitivity range from 0.005% to 20% obscuration/m. The detector supports reliable smoke monitoring with multiple alarm levels, airflow supervision, filtration, and advanced system communication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Vesda |
| Category | Fire Alarm Equipment |
| Part Number | VLP-400 |
| Subcategory | Aspirating Smoke Detectors |
| Detection Method | Laser-based absolute smoke detection |
| Alarm Sensitivity | 0.005%–20% obscuration/m |
| Alarm Levels | 4 configurable |
| Maximum Coverage Area | Up to 2,000 m² |
| Airflow Monitoring | Individual supervision per sampling pipe |
| Aspirator | High-efficiency |
| Air Filtration | Dual-stage air filter |
| Programmable Relays | 7 |
| Additional Functions | AutoLearn, Referencing, Event Log |
| Weight | 4 lb |
Information About VLP-400
The Vesda VLP-400 is the central detector in the Vesda VLP aspirating smoke detection series. It uses laser-based absolute smoke detection and can detect smoke concentrations ranging from very low to high levels. The unit supports four configurable alarm levels, seven programmable relays, VESDAnet communication, AutoLearn, Referencing, and event logging. Its modular design allows the display and programmer to be installed locally or remotely as part of a larger system.
Key Features:
- Laser Smoke Detection: Uses laser-based technology for continuous and sensitive smoke measurement.
- Wide Sensitivity Range: Provides alarm sensitivity from 0.005% to 20% obscuration/m.
- Four Alarm Levels: Supports four configurable alarm thresholds for staged fire response.
- Four Inlet Pipes: Allows connection of up to four air-sampling pipes.
- Airflow Supervision: Monitors airflow independently for each sampling pipe.
- High-Efficiency Aspirator: Provides continuous air sampling throughout the connected pipe network.
- Programmable Relays: Includes seven programmable relays for system control and integration.
- VESDAnet Communication: Supports networking with other compatible Vesda system components.
The Vesda VLP-400 delivers the reliability and precision required for very early warning smoke detection in commercial and industrial environments.
