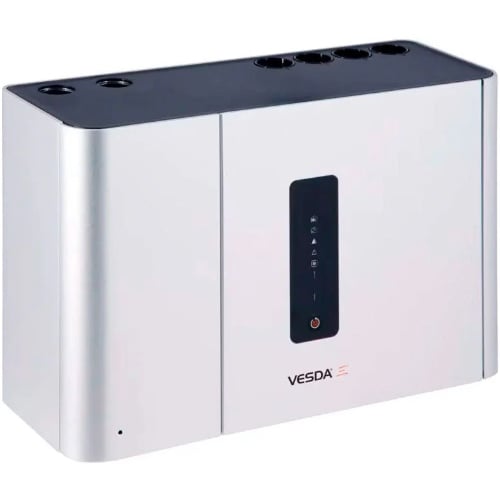

VEU-A00-UL | VESDA Very Early Warning Aspirating Smoke Detector, Aluminium Enclosure
- Regular price
- $10,699.00
- Sale price
- $10,699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: VEU-A00-UL
Description
The VESDA VEU-A00-UL by Xtralis is a high-performance aspirating smoke detector (ASD) designed for very early fire detection. Using advanced laser-based technology, it continuously samples air through a pipe network to detect smoke at the earliest possible stage. With wide coverage capability, intelligent features, and flexible system integration, the VEU-A00-UL is ideal for critical facilities that require maximum protection and fast response.
Technical Specifications
| Model | VEU-A00-UL |
| Brand | VESDA (Xtralis) |
| Category | Aspirating Smoke Detector (ASD) |
| Detection Technology | Short wavelength laser-based |
| Area Coverage | Up to 69,965 ft² (6,500 m²) |
| Number of Pipes | Up to 4 |
| Max Pipe Length | 2,625 ft (800 m) |
| Relays | 7 programmable |
| Inputs | 2 GPIs (1 monitored, 1 unmonitored) |
| Event Log | 20,000 events |
| Flow Monitoring | Ultrasonic flow sensing |
| Software Support | Xtralis VSC, VSM4, ASPIRE |
| Networking | VESDAnet, Ethernet 100 base T |
| Local Interface | USB host port |
| Enclosure Rating | IP40 (aluminium, not UL tested) |
| Mounting | Steel support bracket |
| Replaceable Parts | Aspirator, filter, sampling module, detection chamber |
| Condition | New |
| Manufacturer | Xtralis (a Honeywell company) |
| Unit of Measurement | Each (EA) |
| Weight | 13.6 lbs |
Information About VEU-A00-UL
The VEU-A00-UL is part of the VESDA-E VEU series, engineered to deliver ultra-sensitive fire detection across large areas up to 69,965 ft² (6,500 m²). This model supports up to four sampling pipes with a maximum combined length of 2,625 ft (800 m). It features a short wavelength laser detection system for enhanced smoke detection, robust contamination resistance, and an inherent absolute calibration for long-term accuracy. Additional functions include AutoLearn™ smoke and flow settings, programmable relays, remote diagnostics, and integration with building management systems (BMS), fire alarm, and suppression systems. The device is supported by Xtralis VSC, VSM4, and ASPIRE software for configuration and monitoring.
Key Features:
- Very Early Warning Fire Detection with ultra-wide sensitivity range.
- Laser-Based Detection with short wavelength technology.
- Four Inlet Pipes supported with up to 2,625 ft (800 m) of total pipe length.
- Coverage up to 69,965 ft² (6,500 m²) for large facilities.
- Clean Air Barrier for optics protection and contamination resistance.
- Flow Fault Thresholds configurable per port.
- AutoLearn™ Smoke and Flow for simplified commissioning.
- Quiet Operation with long-life replaceable components.
- Event Log Capacity: 20,000 events.
- Networking & Connectivity: VESDAnet, Ethernet 100 base T, USB host port.
- Remote Monitoring via Xtralis VSC, VSM4, and ASPIRE software.
- Seven Programmable Relays and Two GPIs (one monitored, one unmonitored).
- IP40 Aluminium Enclosure (not UL tested).
- Field Replaceable Modules including aspirator, filter, and detection chamber.
Description
The VESDA VEU-A00-UL by Xtralis is a high-performance aspirating smoke detector (ASD) designed for very early fire detection. Using advanced laser-based technology, it continuously samples air through a pipe network to detect smoke at the earliest possible stage. With wide coverage capability, intelligent features, and flexible system integration, the VEU-A00-UL is ideal for critical facilities that require maximum protection and fast response.
Technical Specifications
| Model | VEU-A00-UL |
| Brand | VESDA (Xtralis) |
| Category | Aspirating Smoke Detector (ASD) |
| Detection Technology | Short wavelength laser-based |
| Area Coverage | Up to 69,965 ft² (6,500 m²) |
| Number of Pipes | Up to 4 |
| Max Pipe Length | 2,625 ft (800 m) |
| Relays | 7 programmable |
| Inputs | 2 GPIs (1 monitored, 1 unmonitored) |
| Event Log | 20,000 events |
| Flow Monitoring | Ultrasonic flow sensing |
| Software Support | Xtralis VSC, VSM4, ASPIRE |
| Networking | VESDAnet, Ethernet 100 base T |
| Local Interface | USB host port |
| Enclosure Rating | IP40 (aluminium, not UL tested) |
| Mounting | Steel support bracket |
| Replaceable Parts | Aspirator, filter, sampling module, detection chamber |
| Condition | New |
| Manufacturer | Xtralis (a Honeywell company) |
| Unit of Measurement | Each (EA) |
| Weight | 13.6 lbs |
Information About VEU-A00-UL
The VEU-A00-UL is part of the VESDA-E VEU series, engineered to deliver ultra-sensitive fire detection across large areas up to 69,965 ft² (6,500 m²). This model supports up to four sampling pipes with a maximum combined length of 2,625 ft (800 m). It features a short wavelength laser detection system for enhanced smoke detection, robust contamination resistance, and an inherent absolute calibration for long-term accuracy. Additional functions include AutoLearn™ smoke and flow settings, programmable relays, remote diagnostics, and integration with building management systems (BMS), fire alarm, and suppression systems. The device is supported by Xtralis VSC, VSM4, and ASPIRE software for configuration and monitoring.
Key Features:
- Very Early Warning Fire Detection with ultra-wide sensitivity range.
- Laser-Based Detection with short wavelength technology.
- Four Inlet Pipes supported with up to 2,625 ft (800 m) of total pipe length.
- Coverage up to 69,965 ft² (6,500 m²) for large facilities.
- Clean Air Barrier for optics protection and contamination resistance.
- Flow Fault Thresholds configurable per port.
- AutoLearn™ Smoke and Flow for simplified commissioning.
- Quiet Operation with long-life replaceable components.
- Event Log Capacity: 20,000 events.
- Networking & Connectivity: VESDAnet, Ethernet 100 base T, USB host port.
- Remote Monitoring via Xtralis VSC, VSM4, and ASPIRE software.
- Seven Programmable Relays and Two GPIs (one monitored, one unmonitored).
- IP40 Aluminium Enclosure (not UL tested).
- Field Replaceable Modules including aspirator, filter, and detection chamber.
