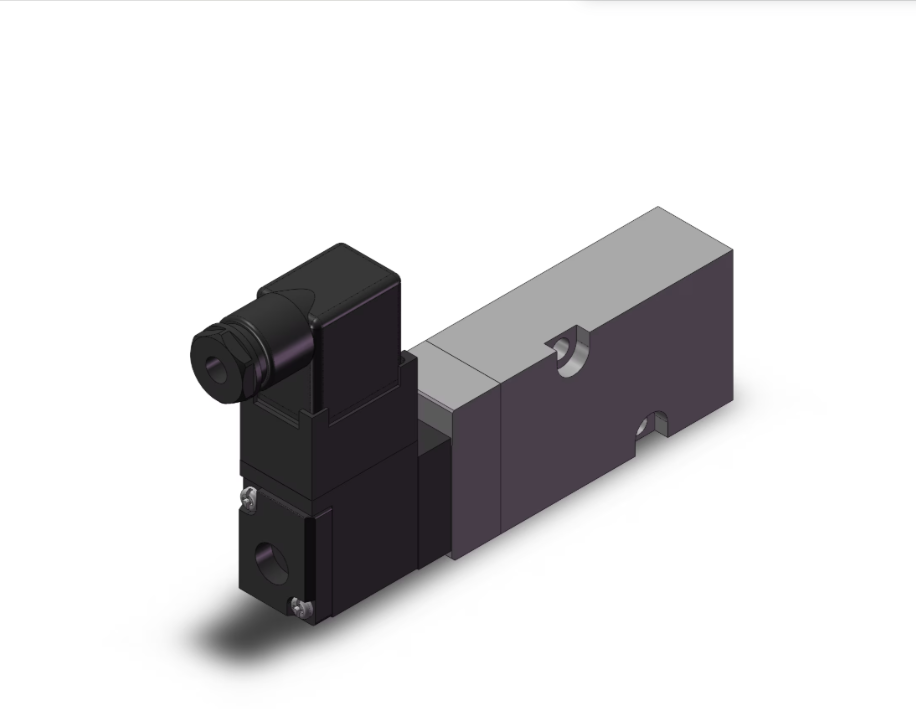

VFN2120N-5DZ-02 | SMC NAMUR Interface 5-Port Single Solenoid Valve 24 V/DC
- Regular price
- $87.00
- Sale price
- $87.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: VFN2120N-5DZ-02
Description
The SMC VFN2120N-5DZ-02 is a 5-port NAMUR-interface solenoid valve designed for industrial automation, delivering reliable pneumatic control in a compact form. This single-solenoid model features a 24 V DC coil and DIN-terminal electrical connection, optimized for direct mounting on valve actuators or NAMUR-style bases.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SMC |
| Category | Valves |
| Part Number | VFN2120N-5DZ-02 |
| Subcategory | Solenoid Valve |
| Series | VFN2000N Series |
| Valve Type | 5-port, 2-position, single solenoid |
| Interface Standard | NAMUR |
| Solenoid Voltage | 24 V DC |
| Electrical Entry | DIN terminal with indicator light & surge suppressor |
| Port Size | Rc (PT) ¼″ |
| Operating Pressure | 0.15 to 0.9 MPa (~22 to 130 psi) |
| Operating Medium | Air or inert gas |
| Manual Override | Non-locking push type |
| Body Material | Resin or metal body (varies by version) |
| Dimensions (HxWxL) | Approx. 66.5 mm × 23 mm × 148 mm |
| Operating Temperature | ~14 °F to 122 °F (-10 °C to +50 °C) |
| Weight | 1.00 lbs |
Information About VFN2120N-5DZ-02
The VFN2120N-5DZ-02 belongs to SMC’s VFN2000N series of 5-port solenoid valves with NAMUR-standard interfaces. The interface surface allows for direct installation onto actuators that conform to the NAMUR standard, simplifying integration in pneumatic systems. With a 1/4″ Rc (PT) port size and rated operating pressure range of 0.15 to 0.9 MPa (≈22 to 130 psi), it is well suited to air or inert-gas applications. Its single-solenoid, spring-return spool architecture includes a DIN-terminal electrical entry with indicator light and surge-voltage suppressor built in, and a non-locking push-type manual override for maintenance or manual operation. The valve’s compact footprint and robust design make it suitable for automation equipment where high reliability is required.
Key Features:
- NAMUR Interface Surface: Enables direct mounting onto NAMUR-compatible actuators or bases without additional adaptor.
- 5-Port, 2-Position Design: Offers bi-directional switching for pilot or actuator control in pneumatic systems.
- Single-Solenoid Operation: Simple actuation with spring return ensures fail-safe position when unpowered.
- 24 V DC Coil with DIN-Terminal Entry: Standardized electrical interface with light and surge suppressor for diagnostics and protection.
- Port Threading Rc (PT) ¼″: Compatible with standard Rc/PT pneumatic plumbing for streamlined system integration.
- Operating Pressure Range 0.15–0.9 MPa: Supports typical industrial compressed-air network pressures up to ≈130 psi for versatile use.
- Manual Non-Locking Push Override: Allows manual actuation without tools for maintenance or setup tasks.
- Compact Dimensions: Measures approximately 66.5 mm height × 23 mm width × 148 mm length for space-efficient installation.
- Built-in Indicator & Surge Suppressor: Enhances reliability and supports fault indication to maintenance staff.
- Metal & Resin Body Construction (depending version): Offers durability in industrial conditions, including inert gas applications.
The VFN2120N-5DZ-02 delivers the reliability and precision required for advanced pneumatic control in automated systems.
