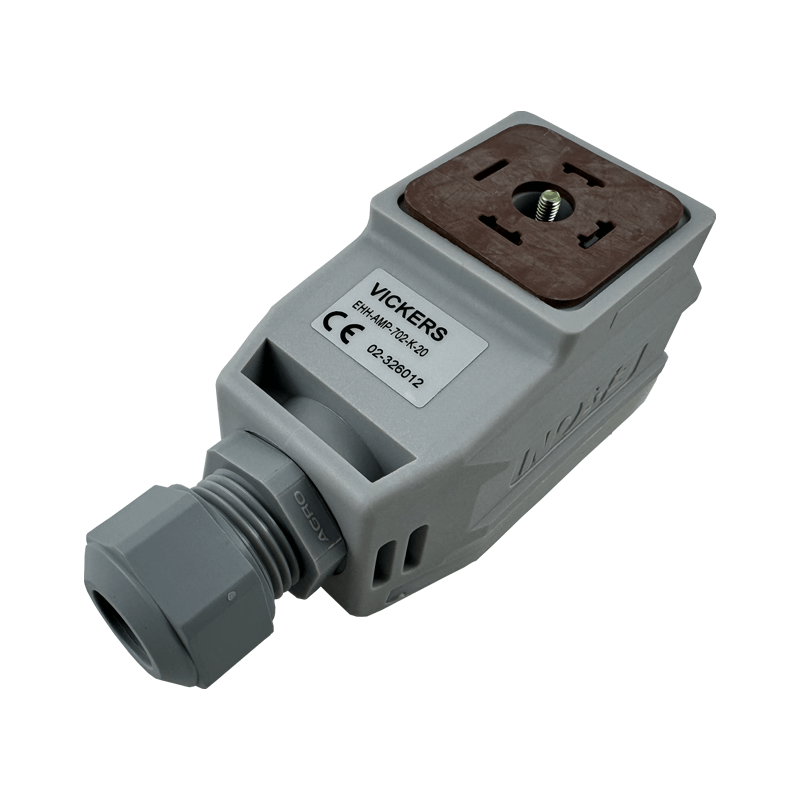

Vickers 02-326012 EHH AMP 702 K 20 Proportional Valve Amplifier
- Regular price
- $535.00
- Sale price
- $535.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 02-326012
Description
The Vickers 02-326012 is an EHH AMP 702 K 20 proportional power plug amplifier for controlling compatible hydraulic proportional valves. It uses a 4–20 mA command signal, a 24 VDC supply, and provides up to 1.6 A output current.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Vickers |
| Category | Hydraulic Controls |
| Part Number | 02-326012 |
| Subcategory | Proportional Valve Amplifiers |
| Model | EHH AMP 702 K 20 |
| Function | Proportional power plug amplifier |
| Command Signal | 4–20 mA |
| Nominal Supply Voltage | 24 VDC |
| Supply Voltage Range | 18–36 VDC |
| Maximum Output Current | 1.6 A |
| Ramp Time | Adjustable, 50 ms–5 s |
| Connection Interface | ISO 4400 / DIN 43650 |
| Protection Rating | IP67 when correctly installed with interface seal |
| Dimensions | Approx. 88.9 × 39.1 × 38.6 mm |
| Weight | 0.07 kg |
Information About 02-326012
The 02-326012 belongs to the Vickers by Danfoss EHH-AMP proportional valve electronics range. It converts a 4–20 mA command into current for a compatible proportional valve solenoid. Its adjustable ramp time supports gradual changes in valve response, and the amplifier connects directly through an ISO 4400/DIN 43650-style interface. It is listed for use with compatible KCG, KDG, KTG, KXCG, ERV, and EPRV valve families.
Key Features:
- Proportional Power Plug Amplifier: Provides electronic command control for compatible Vickers hydraulic proportional valves.
- 4–20 mA Command Input: Accepts a current command signal for integration with compatible control systems.
- 24 VDC Supply: Operates from a nominal 24 VDC supply; Danfoss installation data specifies an 18–36 VDC operating range for 24 V models.
- 1.6 A Maximum Output: Supplies up to 1.6 A output current to the proportional valve solenoid.
- Adjustable Ramp Time: Allows ramp adjustment from 50 ms to 5 seconds to control the rate of output change.
- Valve Family Compatibility: Listed for use with compatible KCG, KDG, KTG, KXCG, ERV, and EPRV proportional valve families.
- DIN Plug Interface: Uses an ISO 4400/DIN 43650 connection interface for direct valve mounting.
- Compact Assembly: Measures approximately 88.9 × 39.1 × 38.6 mm and weighs about 0.07 kg.
The 02-326012 delivers the reliability and precision required for electronic control of proportional hydraulic valves.
