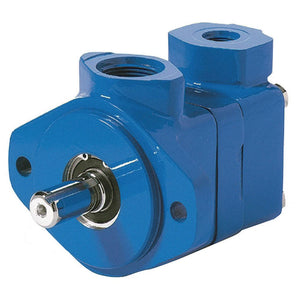

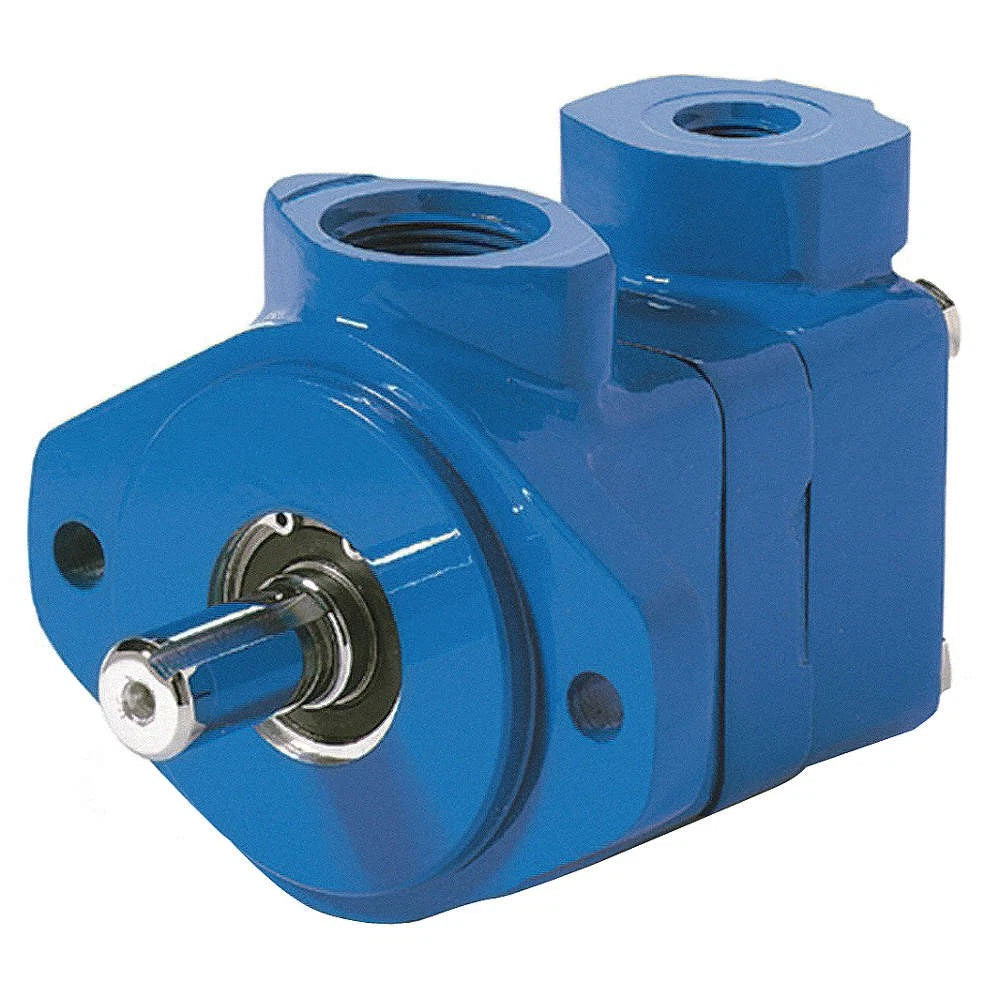

Vickers 382087-3 V10 Fixed-Displacement Single Vane Hydraulic Pump
- Regular price
- $1,899.00
- Sale price
- $1,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 382087-3
Description
The Vickers 382087-3 is a V10 fixed-displacement single-vane hydraulic pump with a nominal displacement of 22.8 cm³/rev. Its clockwise rotation, keyed shaft, and inline port arrangement are designed for compatible mobile and industrial hydraulic systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Vickers |
| Category | Hydraulic Pumps |
| Part Number | 382087-3 |
| Subcategory | Vane Pumps |
| Series | V10 |
| Model Code | V10 1P7P 1C20 |
| Pump Type | Fixed-displacement single vane |
| Displacement | 22.8 cm³/rev (1.39 in³/rev) |
| Rotation | Clockwise, viewed from shaft end |
| Mounting | Two-bolt SAE-A flange |
| Shaft | 3/4-in straight keyed; 3/16-in key |
| Inlet Port | 1-in NPT |
| Outlet Port | 1/2-in NPT, inline with inlet |
| Weight | 5.4 kg |
Information About 382087-3
The 382087-3 is part of the Vickers V10 series and uses model code V10 1P7P 1C20. It has a two-bolt SAE-A flange mount and a 3/4-inch straight keyed shaft with a 3/16-inch key. The pump uses a 1-inch NPT inlet and a standard 1/2-inch NPT outlet positioned inline with the inlet. Its fixed-displacement vane design is used in mobile and industrial hydraulic circuits.
Key Features:
- V10 Single Vane Pump: Fixed-displacement pump design for supplying hydraulic flow in compatible equipment.
- 22.8 cm³/rev Displacement: Nominal displacement of 1.39 in³ per revolution for hydraulic circuit sizing.
- 7 GPM Ring Capacity: Vickers model code identifies the pump’s 7 GPM capacity class.
- Clockwise Rotation: Rotates clockwise when viewed from the shaft end.
- SAE-A Flange Mount: Uses a two-bolt SAE-A mounting flange for compatible pump installations.
- Keyed Shaft: Includes a 3/4-inch straight shaft with a 3/16-inch key and 1.75-inch extension.
- Inline Port Arrangement: Outlet port is positioned inline with the inlet; ports use 1-inch NPT inlet and 1/2-inch NPT outlet connections.
- Hydraulic System Application: Intended for mobile and industrial hydraulic systems; check pump pressure and speed limits against the system design.
The 382087-3 delivers the reliability and precision required for hydraulic flow supply in compatible mobile and industrial equipment.
