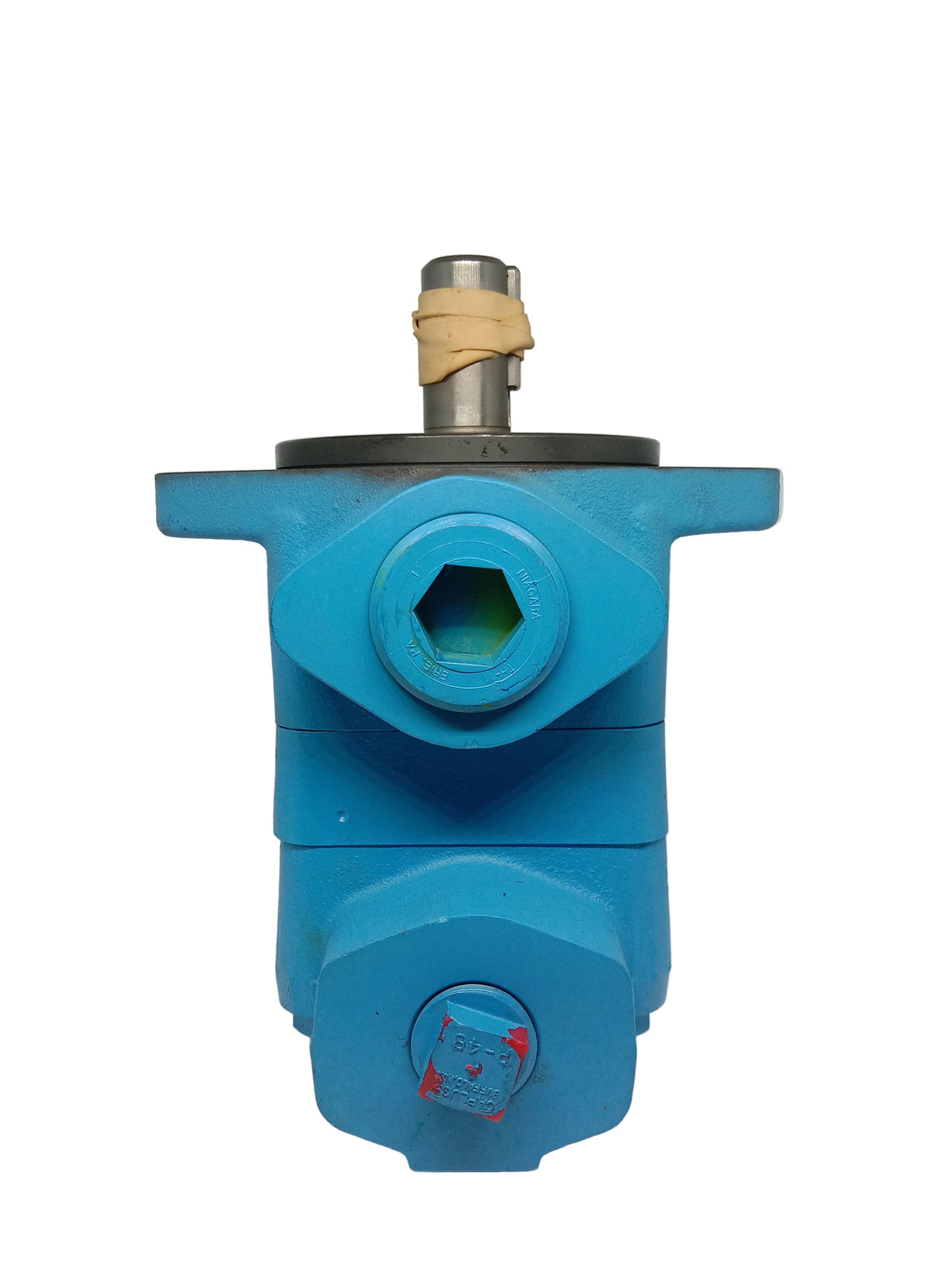

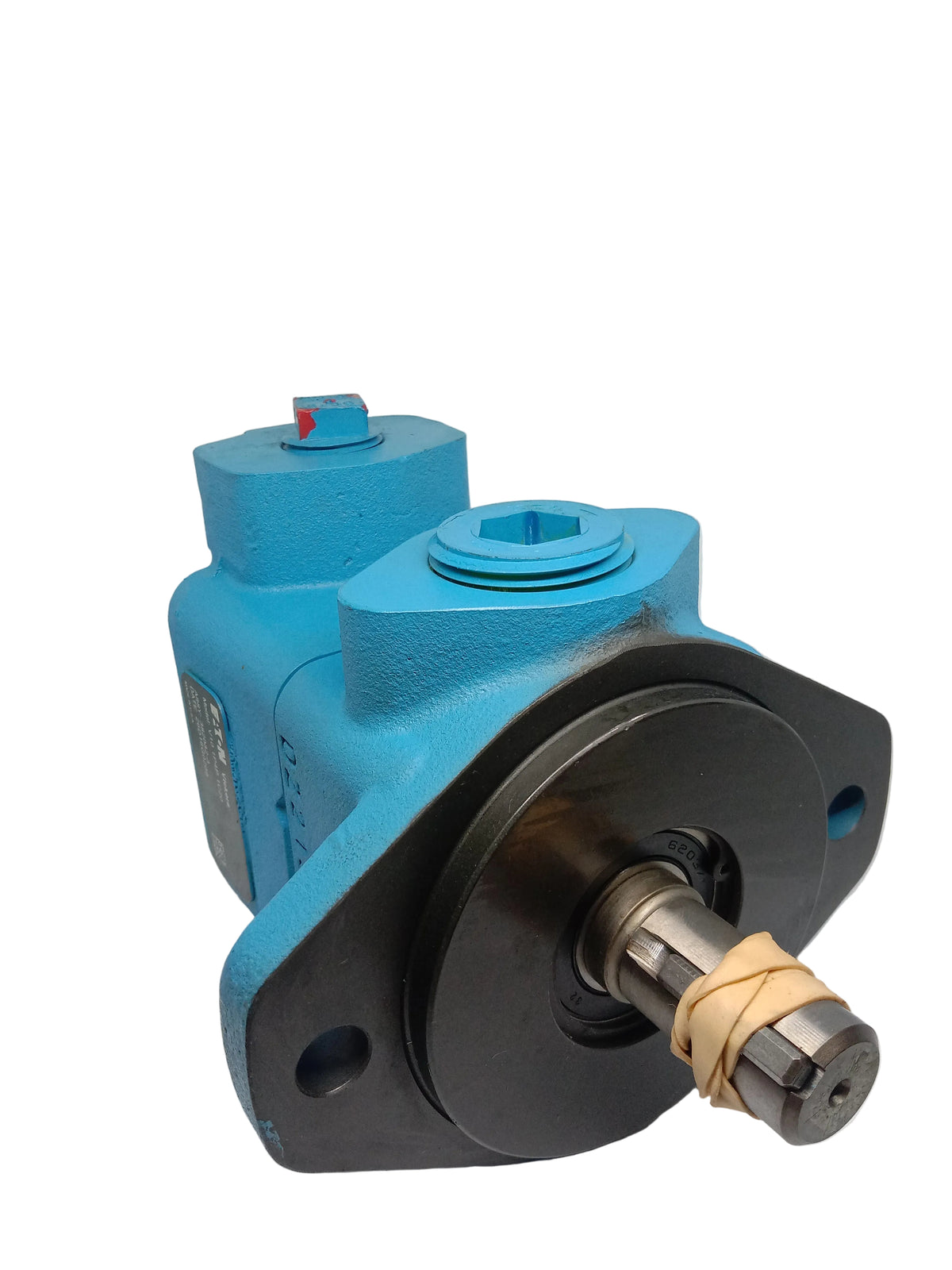

Vickers by Danfoss 382082-3 V10 Fixed-Displacement Hydraulic Vane Pump With Keyed Shaft and Threaded Ports
- Regular price
- $1,899.00
- Sale price
- $1,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 382082-3
Description
The Vickers by Danfoss 382082-3 is a fixed-displacement hydraulic vane pump for supplying oil flow to mobile equipment and hydraulic power units. Its V10 pumping section displaces 13.1 cm³ per revolution and delivers 4 US gallons per minute at 1200 revolutions per minute and 100 psi.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Vickers by Danfoss |
| Category | Hydraulics |
| Part Number | 382082-3 |
| Subcategory | Hydraulic Pump & Motor Assembly |
| Series | Square V10 |
| Model Code | V10 1P4P 1C20 |
| Pump Type | Fixed-displacement single vane pump |
| Displacement | 13.1 cm³/revolution / 0.80 cubic inches/revolution |
| Rated Delivery | 4 US gallons/minute at 1200 revolutions/minute and 100 psi |
| Maximum Operating Pressure | 172 bar / 2500 psi |
| Maximum Shaft Speed | 3400 revolutions/minute, subject to specified inlet and fluid conditions |
| Shaft Rotation | Clockwise, viewed from the shaft end |
| Mounting | SAE A two-bolt flange |
| Drive Shaft | 3/4-inch straight keyed shaft; 1.75-inch extension |
| Shaft Key | 3/16-inch square |
| Inlet Connection | 1-inch NPT |
| Outlet Connection | 1/2-inch NPT; in line with inlet |
| Overall Dimensions | 6.550 × 5.120 × 4.350 inches, length × width × height |
| Weight | 10–15 lbs |
Information About 382082-3

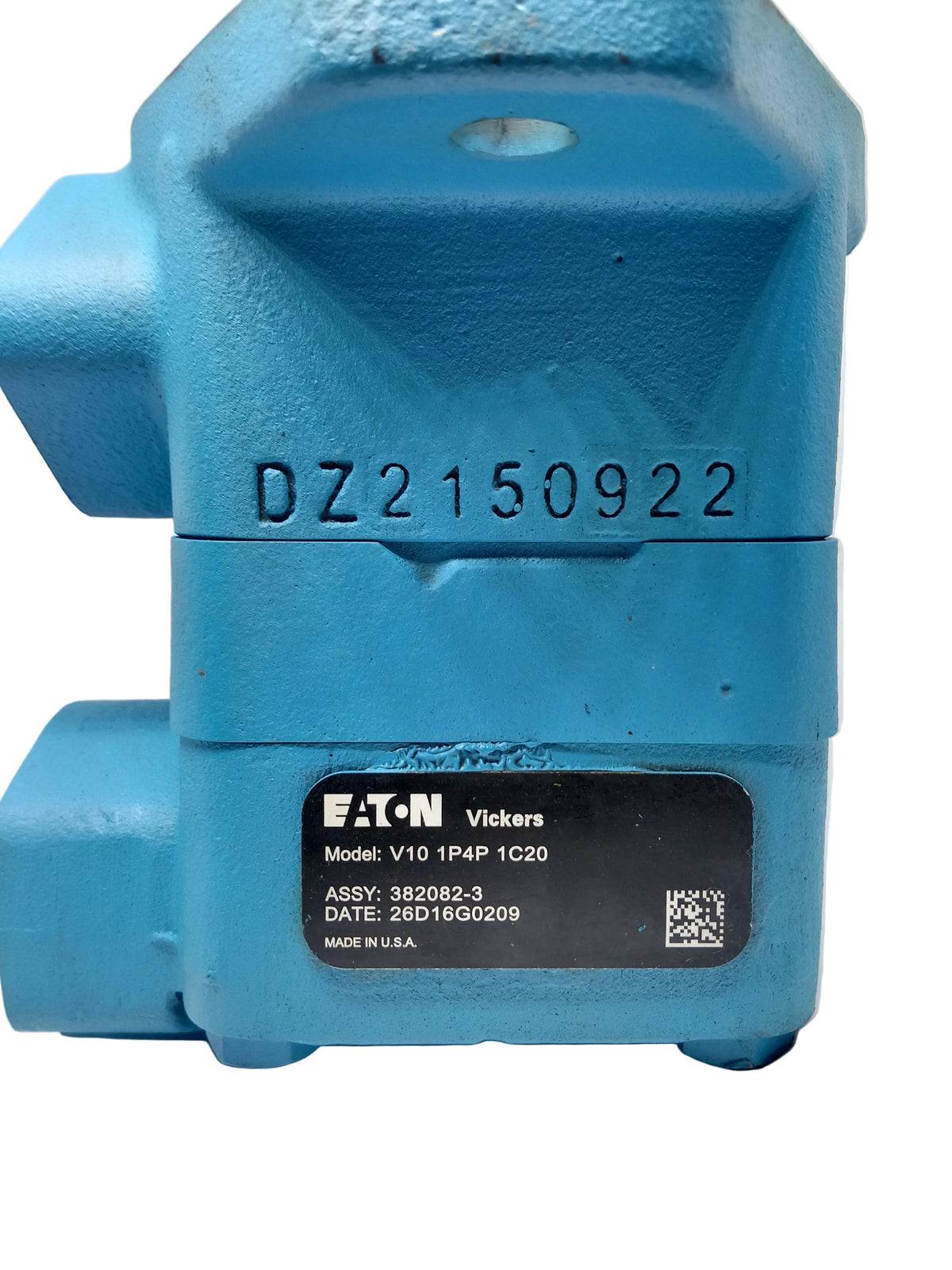

The 382082-3 is a Square V10 single pump identified by model code V10 1P4P 1C20. Its balanced vane arrangement counteracts pressure-induced radial loads within the pumping section. The configuration uses an SAE A two-bolt mounting flange, a straight keyed shaft, and threaded inlet and outlet connections. Compatibility depends on matching the drive coupling, clockwise shaft rotation, port arrangement, and hydraulic operating requirements.
Key Features:
- Fixed Displacement: Provides 0.80 cubic inches, approximately 13.1 cm³, of displacement per revolution.
- Rated Delivery: Supplies 4 US gallons per minute at 1200 revolutions per minute and 100 psi.
- Pressure Capability: Rated for operation up to 2500 psi, approximately 172 bar.
- Balanced Vane Design: Opposed pressure chambers balance internal hydraulic radial loads.
- Standard Mounting: Uses an SAE A two-bolt flange for installation on compatible equipment.
- Keyed Drive Shaft: Incorporates a 3/4-inch straight shaft with a 3/16-inch square key.
- Threaded Connections: Provides a 1-inch NPT inlet and 1/2-inch NPT outlet positioned in line.
The 382082-3 delivers the reliability and precision required for hydraulic oil delivery in compatible machinery and power units.
