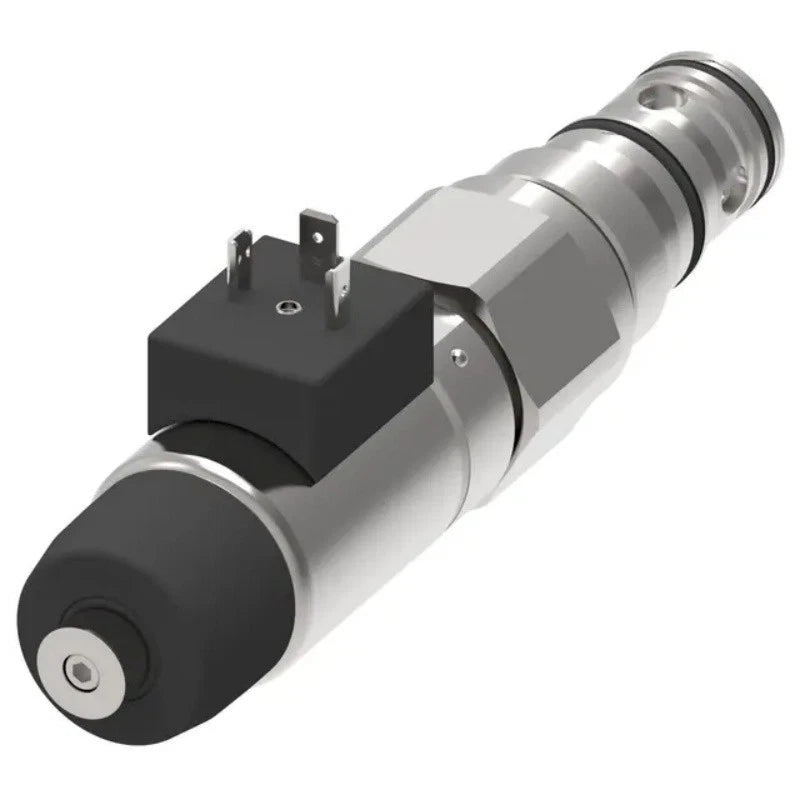

Vickers EPV16-A-16-24D-S-U-13 Proportional Hydraulic Solenoid Valve
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EPV16-A-16-24D-S-U-13
Description
The Vickers EPV16-A-16-24D-S-U-13 is a 24V proportional hydraulic solenoid valve designed to regulate fluid flow in mobile and industrial hydraulic systems. Featuring a poppet-style design and a maximum flow capacity of 160 L/min, it supports controlled hydraulic operation in equipment requiring compact, pressure-compensated flow regulation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Vickers by Danfoss |
| Category | Hydraulic Valves |
| Part Number | EPV16-A-16-24D-S-U-13 |
| Subcategory | Proportional Hydraulic Valves |
| Series | EPV16-A Series |
| Manufacturer Catalog Number | 02-355126 |
| Valve Type | Proportional Solenoid Valve |
| Valve Style | Poppet |
| Function | Solenoid Valve |
| Actuation Type | Direct Acting |
| Actuator Type | Pressure Compensated |
| Supply Voltage | 24 V |
| Maximum Flow Rate | 160 L/min (42 US gpm) |
| Maximum Operating Pressure | 280 bar |
| Number of Ports | 2 |
| Mounting Type | Screw-In |
| Port Configuration | Cartridge Only |
| Electrical Connection | DIN 43650 |
| Manual Override | Screw-In Type |
| Flow Direction | Nose In, Side Out |
| Compatible Hydraulic Fluids | MIL-H-5606, SAE 10, SAE 20, and similar fluids |
| Housing Material | Steel |
| Seal Material | Buna-N (NBR) |
| Operating Temperature | -30°C to +90°C |
| Recommended Filtration Level | 15/13/11 |
| Leakage | Standard |
| Dimensions | 7.29 × 1.71 × 1.71 in |
| Weight | 2.2 lb. |
Information About EPV16-A-16-24D-S-U-13
The EPV16-A-16-24D-S-U-13 is part of the Vickers by Danfoss EPV16-A Series, developed for hydraulic flow control in mobile machinery and stationary industrial equipment. Its screw-in cartridge configuration allows integration into compatible hydraulic manifolds and systems where installation space is limited. The valve uses direct-acting solenoid operation with a DIN 43650 electrical connection and a manual screw-in override for additional operating flexibility. Its design supports hydraulic fluids such as MIL-H-5606, SAE 10, and SAE 20, with a maximum operating pressure of 280 bar.
Key Features:
-
Proportional Flow Control: Regulates hydraulic fluid flow for controlled system operation.
-
Maximum Flow Capacity: Supports flow rates up to 160 L/min (42 US gpm).
-
24V Solenoid Operation: Uses a 24V electrical supply for valve actuation.
-
Poppet Construction: Provides a poppet-style mechanism for hydraulic flow regulation.
-
Screw-In Cartridge Design: Enables integration into compatible hydraulic manifolds.
-
Pressure Rating: Supports maximum operating pressure up to 280 bar.
-
DIN 43650 Connection: Uses a standardized electrical connector interface.
-
Manual Override: Includes a screw-in override for manual valve operation.
The EPV16-A-16-24D-S-U-13 delivers the reliability and precision required for hydraulic flow control in mobile machinery and industrial fluid power systems.
