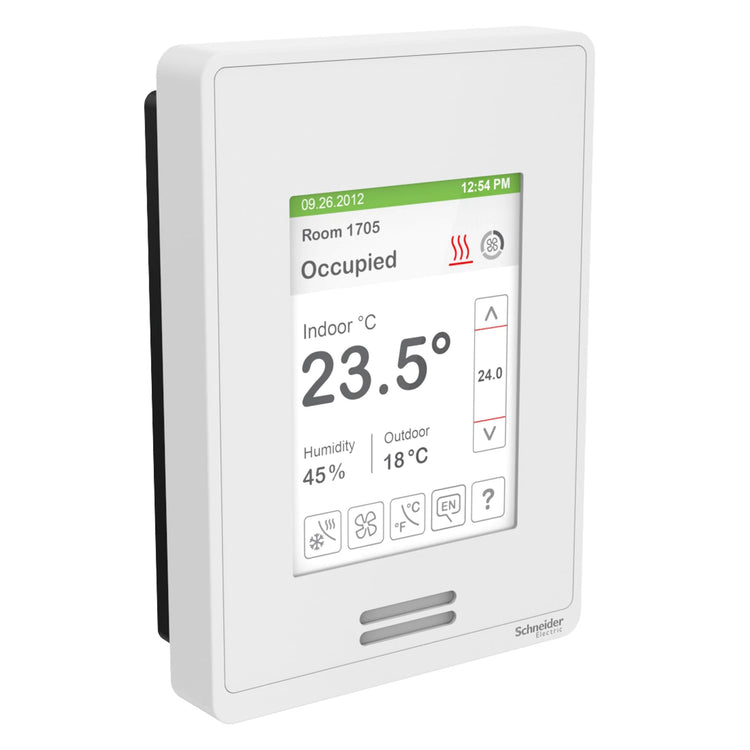

Viconics SE8650U0B11 BACnet RTU Heat Pump IAQ Controller
- Regular price
- $467.00
- Sale price
- $467.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SE8650U0B11
Description
Viconics SE8650U0B11 is a communicating room controller designed for rooftop units, heat pumps, and indoor air quality applications. It provides BACnet MS/TP communication, integrated relative humidity sensing and control, touchscreen operation, and programmable HVAC control functions.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Viconics |
| Part Number | SE8650U0B11 |
| Category | Building Automation |
| Subcategory | Rooftop HVAC Controllers |
| Product Series | SE8600 |
| Product Type | Communicating RTU / Heat Pump / IAQ Controller |
| Application | Rooftop Units, Heat Pumps, Indoor Air Quality |
| Communication | BACnet MS/TP |
| Power Supply | 20–30 VAC, 50/60 Hz |
| Power Consumption | 6 VA |
| Humidity Control | RH monitoring and dehumidification control |
| Heating/Cooling Stages | 1H/1C, 2H/2C; up to 3H/2C heat pump |
| Economizer Output | Proportional 0–10 VDC |
| Display | Backlit LCD touchscreen |
| Scheduling | Seven-day programmable occupancy scheduling |
| Remote Sensors | Room, outside-air, and supply-air sensors |
| Keypad Lockout | Full, partial, or none |
| Operating Temperature | 0–50°C (32–122°F) |
| Operating Humidity | 0–75% RH, non-condensing |
| Enclosure | Flame-retardant plastic, NEMA 1 |
| Dimensions | Approx. 4.72 × 3.38 × 1.00 in (12.0 × 8.6 × 2.5 cm) |
| Weight | 0.75 lb |
Information About SE8650U0B11
The SE8650U0B11 is part of the Viconics SE8600 series of advanced commercial HVAC room controllers. It operates from 20–30 VAC and supports multi-stage heating and cooling, with proportional-integral control and configurable fan operation. The controller includes a white case and fascia, integrated RH sensing, seven-day occupancy scheduling, and configurable economizer functions. BACnet MS/TP communication is supported, while Zigbee Pro wireless connectivity can be added using a separate communication module.
Key Features:
- BACnet MS/TP Communication: Provides network connectivity for compatible building automation systems.
- RTU and Heat Pump Control: Designed for rooftop unit and heat pump HVAC applications.
- Humidity Control: Integrated RH sensing supports humidity monitoring and dehumidification functions.
- Touchscreen Interface: Provides a backlit LCD touchscreen for configuration and room control.
- Multi-Stage Operation: Supports 1H/1C and 2H/2C configurations, with additional heat pump sequencing.
- Economizer Control: Supports proportional 0–10 VDC mixed-air control for compatible economizer applications.
- Seven-Day Scheduling: Provides programmable occupancy scheduling for automated HVAC operation.
- Remote Sensors: Supports room, outside-air, and supply-air temperature sensors.
The SE8650U0B11 delivers the sensing, scheduling, and communication capabilities required for commercial rooftop, heat pump, and indoor air quality HVAC applications.
